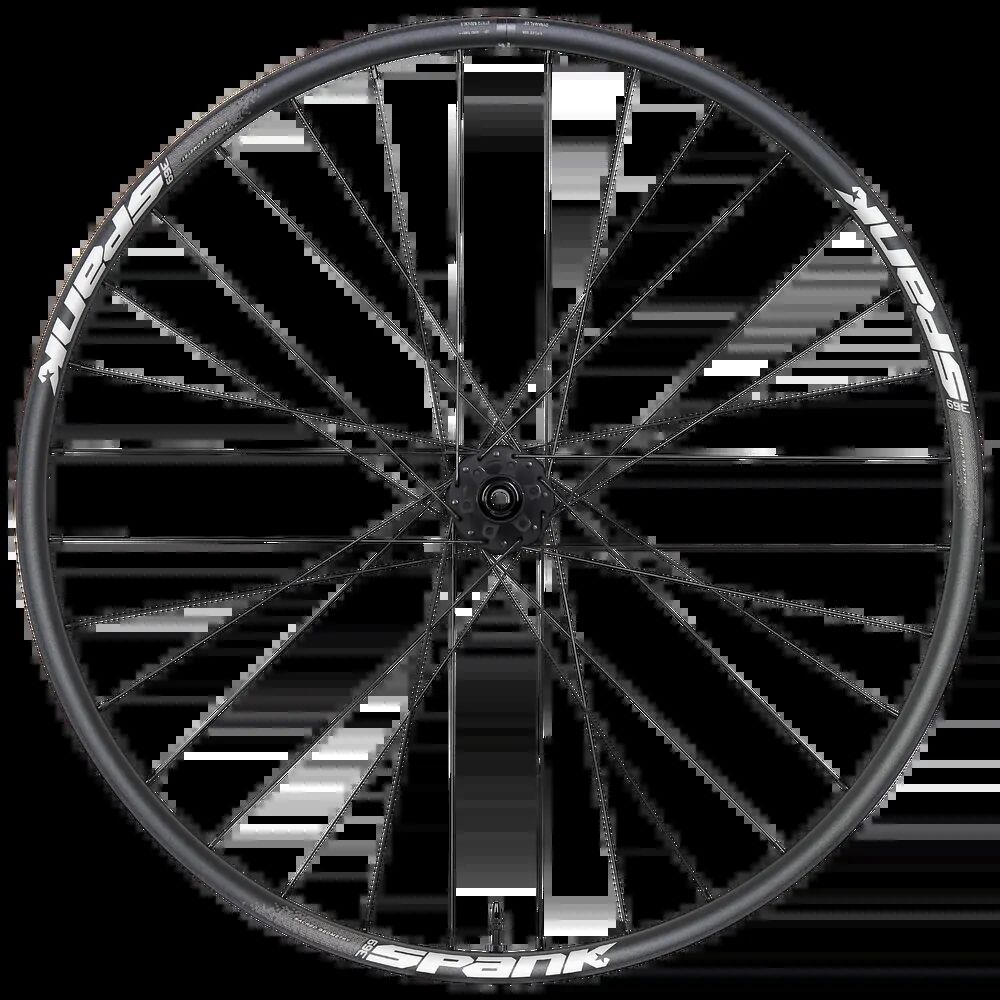

Spank Spike 369 29in Wheel – Rear 148mm (freehub sold separately)
SKU code: LNK-SPA-4711225693903
$559.95
The Spank Spike 369 brings a 30.5mm-inner enduro and freeride rim and Spank's Hex J-Type Boost hub to a hand-built, A-Class 29in wheel.
Highlights
- 30.5mm inner rim width suits 2.0"–2.6" tyres
- Sacred Geometry hollow bead wall for added lateral and vertical strength
- Bead Bite tubeless hooks for secure, low-pressure tubeless performance
- Hand-built 32H wheel with J-hook triple-butted spokes and 3-cross lacing
- Tubeless taped and valved, ready to set up
Rim and hub build
The Hex J-Type hub runs a 102T, 6-pawl, 3.5° engagement ratchet with a CNC-optimised forged alloy body and axle. The front hub uses a 15x110mm Boost axle, supplied with 20x110mm end caps; the rear hub uses a 148mm Boost axle.
Compatibility & fit
The rear wheel is supplied without a freehub body — fit the Shimano HG, Shimano Microspline or SRAM XD freehub to match your cassette. Our workshop can fit the freehub and set the wheel up tubeless.
Sizes & options
| Option | Size | Hole count | Spacing |
|---|---|---|---|
| Rear wheel | 29in | 32H | 148mm Boost (freehub sold separately) |
| Front wheel | 29in | 32H | 15x110mm Boost (20x110mm end caps included) |
Spank covers manufacturing defects in materials and workmanship for 2 years from the original purchase date; normal wear and tear, impact, crash damage and unauthorised repairs or modifications aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
- 30.5mm inner rim width, 19mm profile height
- Sacred Geometry hollow bead wall design
- Bead Bite tubeless hooks, taped and valved
- Hand-built 32H with J-hook triple-butted spokes
- Front and rear available; freehub body sold separately
| Inner rim width | 30.5mm |
|---|---|
| Outer rim width | 35mm |
| Profile height | 19mm |
| Tyre fit | 2.0"–2.6" |
| ERD | 598++ (29in) |
| ETRTO | 622x30.5 (29in) |
| Hub | Spank Hex J-Type, Boost |
| Engagement | 102T, 6-pawl, 3.5° |
| Spokes | J-hook triple-butted 2.2/1.8/2.0mm, 3-cross lacing |
| Nipples | Brass external |
| Valve | Presta (F/V) |
| Tubeless | Taped and valved |
| Front wheel weight | 977g |
| Rear wheel weight | 1159g (XD), 1187g (HG) |
| SKU | LNK-P-SPA-SPIKE369-WHL |
| Brand | Spank |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
