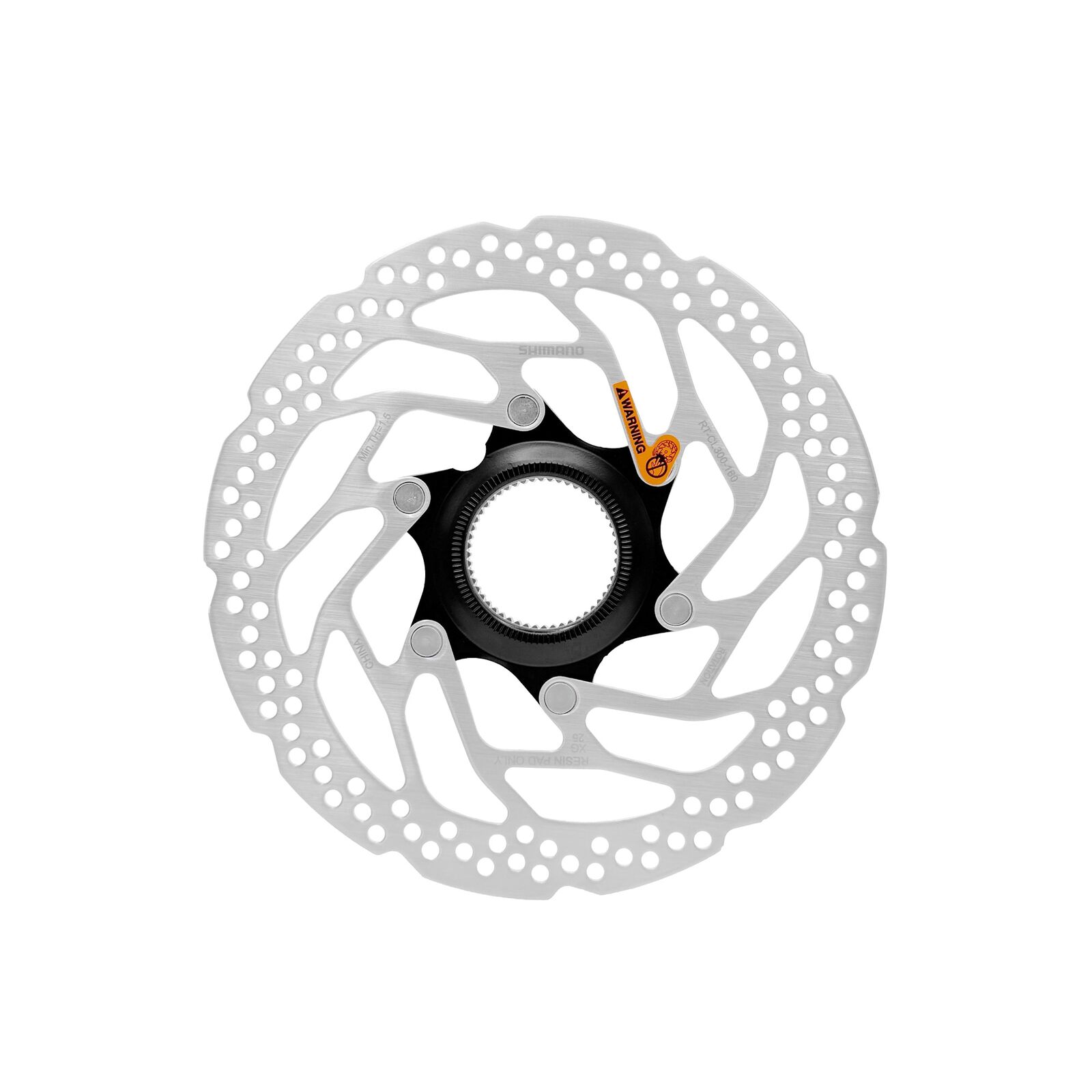

A durable stainless steel rotor for riders who run resin pads and want long-lasting, predictable braking. The RT-CL300 uses Shimano's Center Lock spline mount, so fitting or swapping it takes one lock ring instead of six bolts.

Highlights

  • Center Lock mount: a spline fit and single lock ring for quick, precise installation
  • Tool-friendly lock ring: internal and external serrations suit Shimano's TL-LR11 or TL-FC36
  • Stainless steel rotor and carrier for long braking life
  • Accepts narrow and wide pad shapes

Resin pads only

Shimano designed the RT-CL300 for resin (organic) pads. Metal (sintered) pads are not compatible, so check which pads your calipers run before fitting.

Compatibility and fit

Fits Center Lock hubs, not 6-bolt hubs. Your caliper must be positioned for a 160 mm rotor, which may need a mount adapter. On E-THRU thru-axle hubs, Shimano specifies tightening this style of lock ring with the TL-FC36 rather than the TL-LR11. The RT-CL300 is also made in 180 mm and 203 mm.

Covered by Shimano's warranty against defects in materials and workmanship. Rotors are a wear item: wear, warping from impacts or overheating, and contamination are not covered. This cover is in addition to your rights under the Australian Consumer Law.

For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you.

  • Shimano RT-CL300 Center Lock disc brake rotor
  • 160 mm diameter, 1.75 mm thickness
  • Stainless steel rotor and carrier
  • Resin pads only
  • Narrow and wide pad shapes supported
  • Lock ring with internal and external serrations (TL-LR11 / TL-FC36)
BrandShimano
Part numberRT-CL300
TypeCenter Lock disc brake rotor
Diameter160 mm
Thickness1.75 mm (standard)
Rotor materialStainless steel, polished
CarrierStainless steel, painted
Pad compatibilityResin only
Pad shapeNarrow and wide
Lock ringInternal and external serration, black
Lock ring toolsTL-LR11 or TL-FC36 (TL-FC36 on E-THRU hubs)
Quantity1 rotor
SKU SHM-ERTCL300S
Barcode # 4550170080310
Brand Shimano
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.030m
Shipping Length 0.220m
