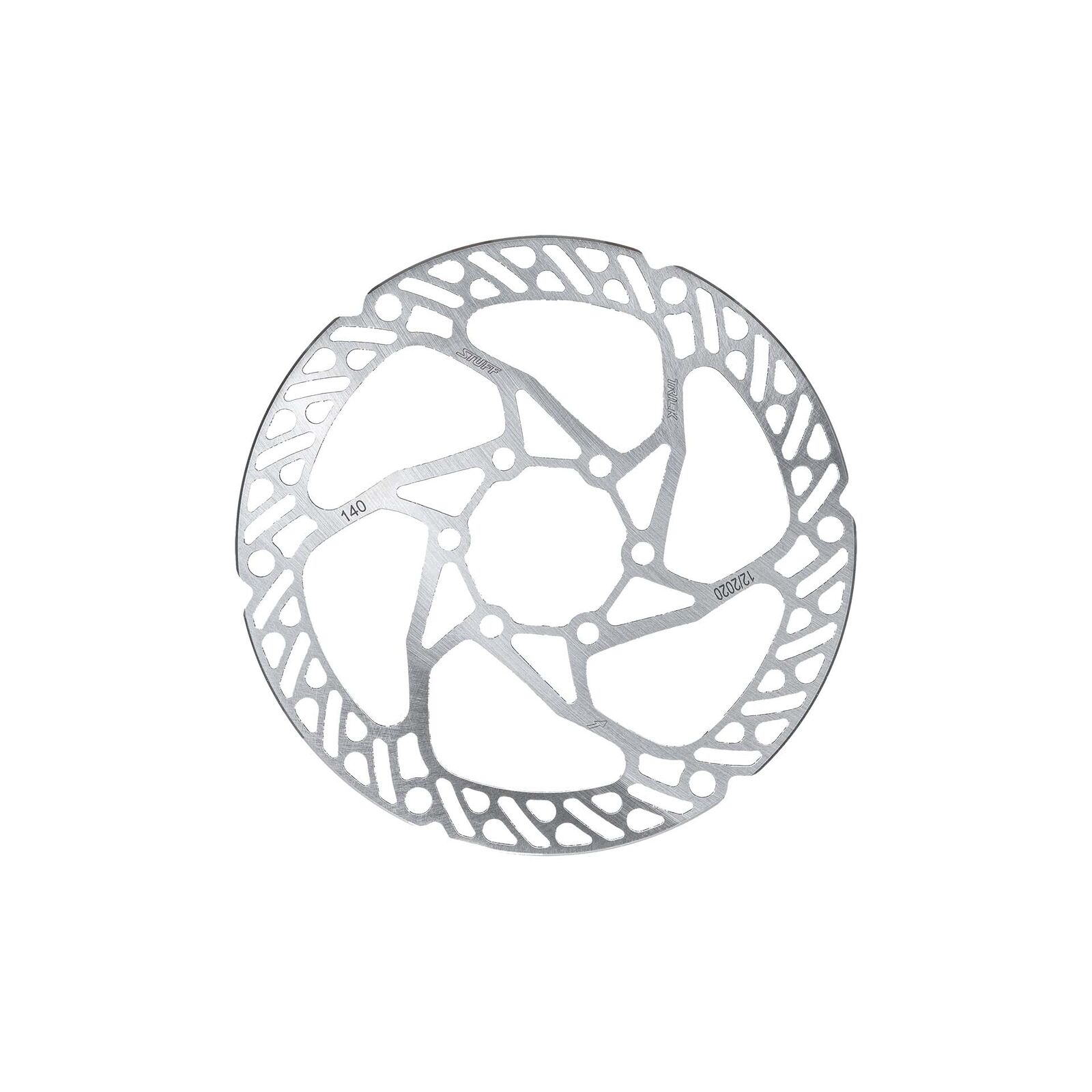

The Dächle Disc UL trims weight for the climbs without giving up the heat management you need on the way down. Slim spokes and the UL hole pattern cut material, while a size-matched disc thickness keeps braking consistent.

Highlights

• Trickstuff's lightest disc family, in 140, 160, 180 and 203 mm
• Vacuum-hardened stainless steel; Trickstuff quotes up to 25% higher tensile strength than conventional discs
• Thickness matched to size: 1.85 mm (140, 160) or 2.05 mm (180, 203)
• UL hole pattern saves weight and helps stop pads glazing
• Bevelled "Dächle" outer edge makes it easier to slot the wheel back in

Light, but not fragile

Trickstuff designed the UL to be as light as it can be while staying as strong as it needs to be. The smaller sizes use a 1.85 mm disc to save grams, and the bigger sizes step up to 2.05 mm so they can absorb and shed more heat.

Sizes & options

Thickness and friction ring width change with size, so check the row for the size you choose.

Fitting and care

Rotors are directional: the arrow and labelling face outwards. Trickstuff asks for new rotor bolts (or bolts with a drop of medium-strength threadlocker), tightened crosswise to the hub maker's torque (max. 6 Nm). Bed new discs in before the first ride (about 20 firm stops from 30 km/h to 5 km/h). To degrease a disc, Trickstuff recommends washing-up liquid and plenty of clean water, not brake cleaner, isopropyl alcohol or acetone.

Compatibility & fit

6-bolt (IS) mount. Trickstuff states its brake discs are compatible with all common disc brakes. Before you order, check your frame and fork limits for rotor size and your brake maker's disc thickness limits. Rotor bolts are not included. A Centre Lock hub needs a Centre Lock to 6-bolt adapter. Our workshop can fit your rotors and set up the calipers so they run clean and quiet.
