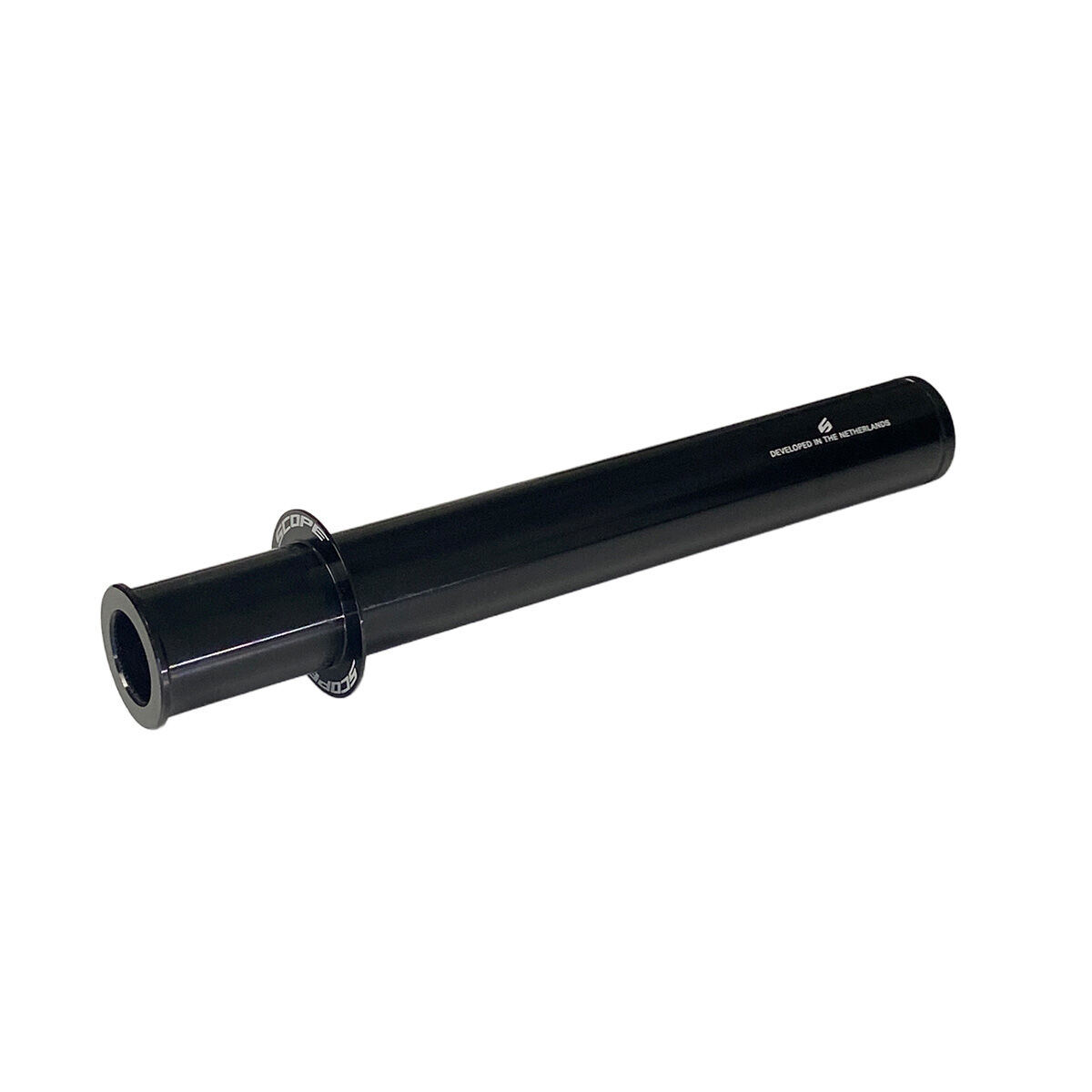

The rear axle carries the hub bearings, the ratchet engagement and the freehub body. If it's damaged, this genuine Scope part returns the Artech rear hub to factory specification.

Highlights

  • Genuine Scope Artech spare part
  • Axle for the Artech rear disc hub 24H (12x142)
  • Shared with the Artech ATT disc hub
  • Also supplied in Scope's rear axle and end cap kit

Where it fits

In Scope's Artech exploded view this axle (SC2024105) runs through the rear hub shell, carrying an SKF 61803 bearing on the non-drive side and an SKF 61903 bearing on the drive side, with the flat spring, 36T diamond ratchets, engagement spacer and freehub body on the drive side. Scope lists the same axle in the ATT disc hub and in the Axle and End Cap kit – Rear Hub (SC2024158).

Compatibility & fit

Fits the Scope Artech rear disc brake hub, 24 hole, 12x142mm (hub SC2024119), and the Scope ATT disc hub (SC2025222). Not for R-Series or S-Series hubs, which use their own axles. Fitting is a separate Tune Cycles workshop service and is not included.

Scope's warranty covers manufacturing and material defects: three years on Sport and Race series products and lifetime on Artech series products, activated by registering the product within 30 working days of purchase. Scope excludes wear-and-tear parts, which it lists as brake pads, rim tape, freehubs, rim braking surfaces, pawls, springs, bearings and decoration. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope Artech rear hub axle
  • 12x142mm thru-axle standard
  • For the Artech 24H rear disc hub and ATT disc hub
  • Fits SKF 61803 and 61903 bearings
BrandScope
SeriesArtech
PartRear hub axle
Part numberSC2024105
Axle standard12x142mm
HubsArtech rear disc hub 24H (SC2024119), ATT disc hub (SC2025222)
BearingsSKF 61803 NDS, SKF 61903 DS (not included)
