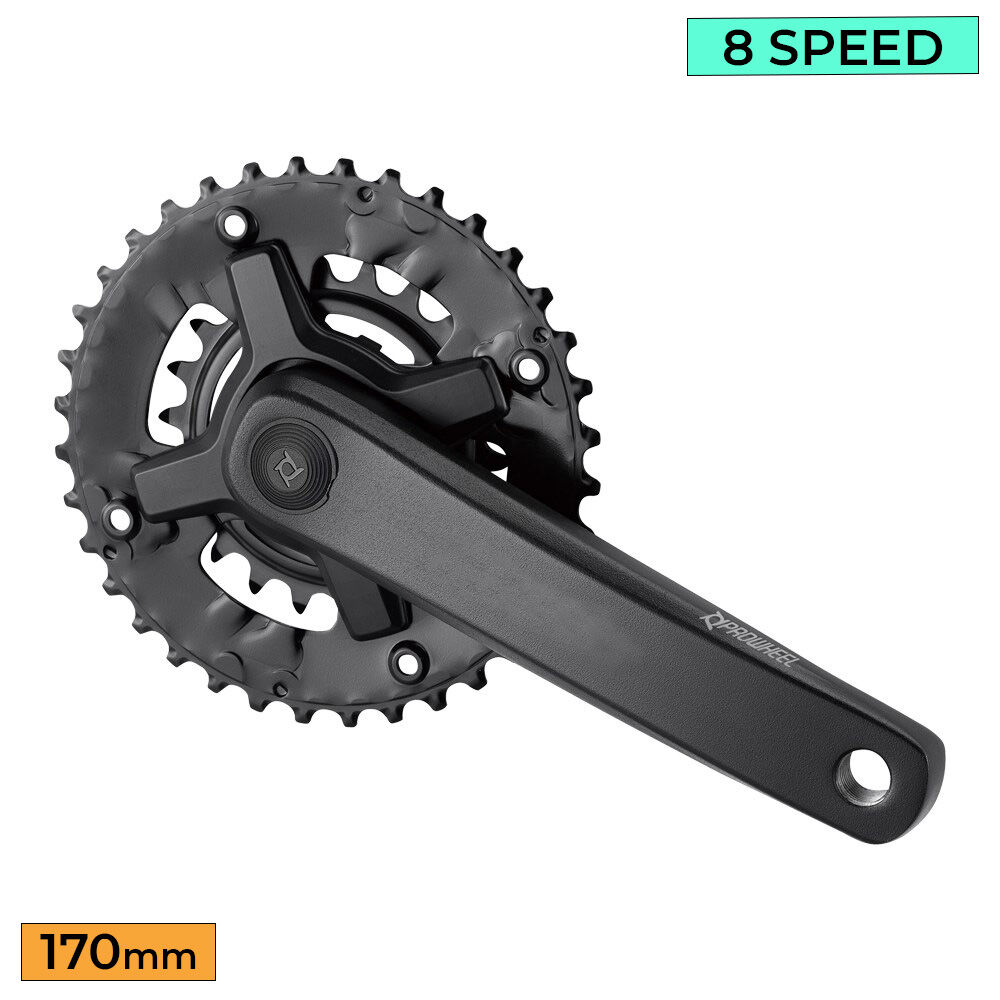

The Prowheel TM-CY10 is a 2× 8-speed square-taper MTB crankset with a 36-22T pairing for entry-level mountain and hybrid bikes.

Highlights

  • 170 mm crank arms
  • 36-22T chainrings
  • Forged AL-6061-T6, sand black arms
  • Steel 36-22T on a black plastic spider
  • 2x8 speed compatible
  • Square-taper — uses a 124.5 mm square-taper bottom bracket (not included)

Prowheel

Prowheel is a Taiwanese crank maker that supplies many bike brands as original equipment; these are the same forged cranks sold as aftermarket replacements.

Fit and compatibility

Square-taper — uses a 124.5 mm square-taper bottom bracket (not included). Match the speed count and chainring sizes to your front derailleur and chain.

Prowheel products supplied by Tune Cycles are covered against defects in materials and workmanship under the manufacturer's warranty, handled in Australia through the distributor. Normal wear and tear, crash or impact damage, incorrect installation, modification and misuse aren't covered.

For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you. This cover is in addition to your rights under the Australian Consumer Law.

  • 170 mm crank arms
  • 36-22T chainrings
  • Forged AL-6061-T6, sand black arms
  • Steel 36-22T on a black plastic spider
  • 2x8 speed compatible
  • Square-taper — uses a 124.5 mm square-taper bottom bracket (not included)
BrandProwheel
ModelTM-CY10
TypeMTB double
Crank length170 mm
Chainrings36-22T
Speeds2x8 speed
Axle / interfaceSquare taper
Bottom bracketSquare-taper — uses a 124.5 mm square-taper bottom bracket (not included)
Chainline49 mm
Q-factor180.9 mm
Arm materialForged AL-6061-T6, sand black
Chainring materialSteel 36-22T on a black plastic spider
SKU KWT-PRW-TM-CY10-170
Barcode # 724022618431
Brand Prowheel
