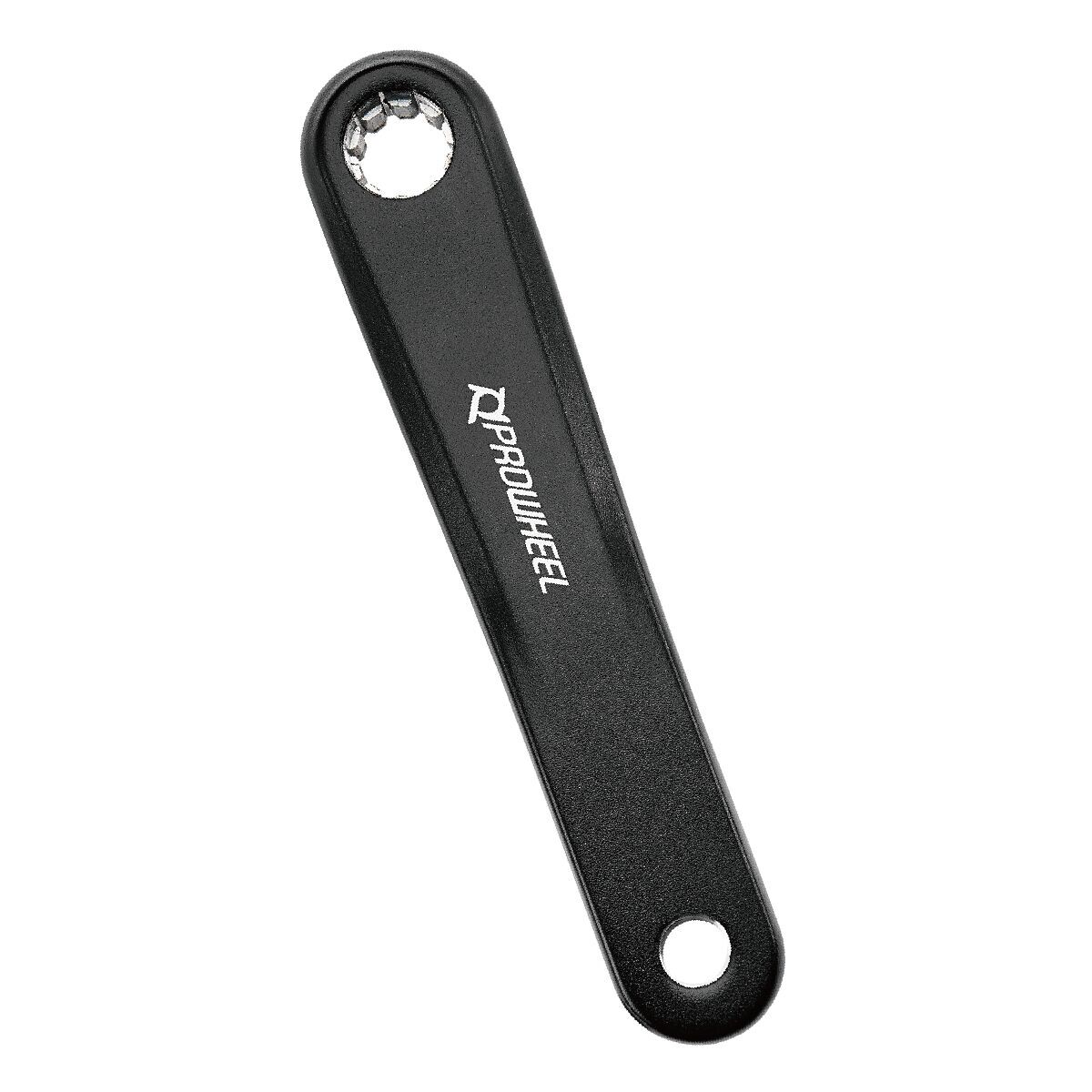

Replace a bent or damaged arm on a Bosch-powered e-bike without buying a whole crankset. The EB03 is Prowheel's forged aluminium ISIS arm, sold as a single left or right arm in 170mm.

Highlights

  • Listed by Prowheel for Bosch Active Line and Performance Line CX drive units
  • ISIS crank interface
  • Forged AL6061-T6 aluminium
  • 170mm length
  • 188mm Q-factor, 27.5mm offset
  • Left or right arm

Forged aluminium

Prowheel forges the EB03 from AL6061-T6 aluminium and lists it in its Bosch e-bike range with a 27.5mm offset and a 188mm Q-factor.

Compatibility & fit

Prowheel lists the EB03 for Bosch Active Line and Performance Line CX drive units with an ISIS spindle interface. Check your drive unit and the length of your current arms before ordering. Each arm is a separate option, so order a left, a right or both. Fitting is a separate workshop service and isn't included; our Marrickville workshop can fit e-bike cranks for you.

Sizes & options

OptionLength
Left170mm
Right170mm
Covered against manufacturing defects under Prowheel's warranty. Normal wear, crash damage and incorrect fitting are not manufacturing defects. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Prowheel's Australian distributor.
  • For Bosch Active Line and Performance Line CX
  • ISIS crank interface
  • Forged AL6061-T6 aluminium
  • 170mm, left or right arm
  • 188mm Q-factor
ModelEB03 (Prowheel spec F14-L / F14-R)
Drive units (Prowheel listing)Bosch Active Line, Bosch Performance Line CX
Crank interfaceISIS
MaterialForged AL6061-T6 aluminium
Length170mm
Q-factor188mm
Offset27.5mm
SKU KWT-P-PRW-EB03
Brand PROWHEEL
Shipping Weight 0.9000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.400m
