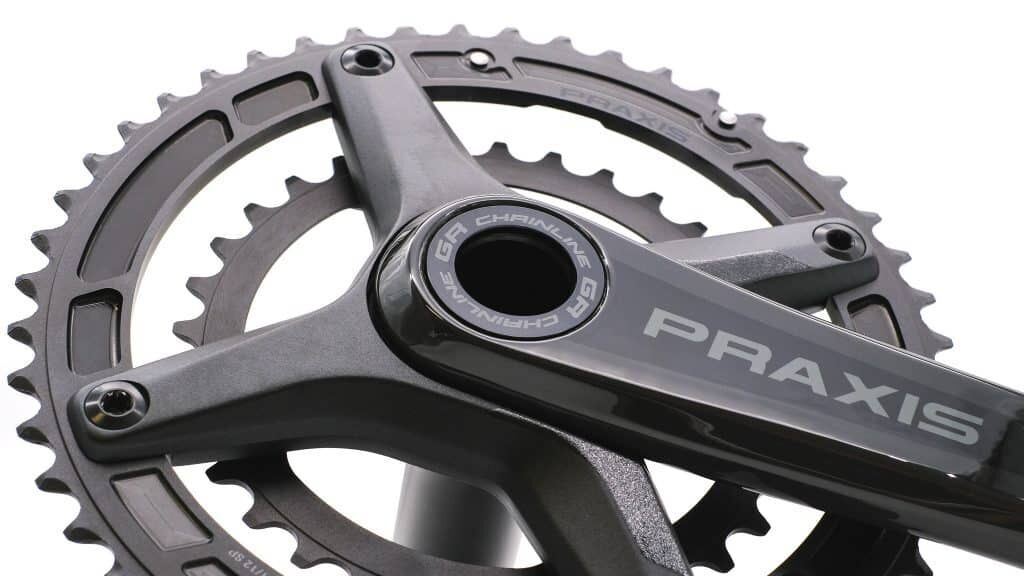

Praxis Zayante Carbon-GR Gravel Crankset – 165mm, 48/32T
SKU code: DSG-PXDM-ZCGR165-X4832
Sold Out
The Zayante Carbon-GR takes Praxis's lightweight Zayante carbon arms and sets them up for gravel. The wider chainline lines up with Shimano GRX 2x and SRAM Wide front derailleurs, or you can run it 1x on the 3-bolt direct-mount interface.
Highlights
- C.R.A.F.T. carbon arms: 418 g for a 172.5 mm arm set
- Gravel chainline: 47 mm for 2x, 48 mm for 1x
- 48/32 lightweight LevaTime II X-rings with alloy bolts, or a 38, 40 or 42T 1x ring
- M30 alloy spindle (30 mm drive / 28 mm non-drive)
- 150 mm Q-factor
Made for gravel groups
Shimano GRX 2x and SRAM Wide front derailleurs sit further out than road ones, so the Carbon-GR moves the rings out to a 47 mm chainline to match. With a 1x ring on the direct-mount interface, the chainline is 48 mm. If your bike uses a standard road front derailleur, Praxis recommends a road crank instead.
The arms are the same C.R.A.F.T. carbon arms Praxis makes in-house for the Zayante road crank.
Options
| Chainring | Setup | Chainline | Weight (172.5 mm) |
|---|---|---|---|
| 48/32T | 2x lightweight LevaTime II X-rings, alloy bolts, 10/11/12-speed | 47 mm | 605 g |
| 38T, 40T, 42T | 1x narrow-wide direct-mount ring, needs a clutch rear derailleur | 48 mm | Not published |
| Crank length | 165mm, 170mm or 172.5mm with every ring | — | — |
Compatibility & fit
Bottom bracket: needs a Praxis M30 bottom bracket (30 mm drive / 28 mm non-drive bearing), sold separately: BSA, BB86, T47 internal bearing, T47 external bearing, BB30, PF30, 386EVO or BBright.
Drivetrain: Shimano GRX (Di2 and mechanical) and SRAM Wide (eTap and mechanical), 10/11/12-speed; KMC, Shimano and SRAM chains including Flattop. 1x setups need a clutch rear derailleur and are not for Campagnolo chains.
Power: Praxis lists 3-bolt spider meters from Power2Max (NG and NG Eco), SRM, SIGEY and XCADEY, plus power pedals.
The Tune Cycles workshop can fit the bottom bracket and crankset for you as a separate workshop service. Threaded shells need the right BB tool and press-fit shells need a proper bearing press, so it pays to have the shell checked and the bottom bracket fitted correctly first. The main crank bolt is torqued to 48–52 Nm with a torque wrench.
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner with proof of purchase. The warranty does not cover normal wear and tear (such as chainring tooth wear, worn anodising or coatings, bearing wear and general corrosion), or damage from a crash, impact, abuse, modification, or installation that does not follow Praxis's instructions and tools.
This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- C.R.A.F.T. carbon arms made in-house by Praxis
- 47 mm 2x / 48 mm 1x gravel chainline
- Lightweight LevaTime II X-rings with alloy bolts (2x)
- M30 30/28 mm alloy spindle
- 8 mm alloy self-extracting main bolt
| Material | Carbon arms, alloy spider and rings |
|---|---|
| Spindle | M30 alloy, 30 mm drive / 28 mm non-drive bearing |
| Bottom bracket | Praxis M30, sold separately |
| Chainring interface | 3-bolt direct mount |
| Speeds | 10/11/12-speed |
| Chainline | 47 mm (2x), 48 mm (1x) |
| Q-factor | 150 mm |
| Weight | 418 g arm set; 605 g with 48/32 (172.5 mm) |
| Main bolt | 8 mm alloy, self-extracting; 48–52 Nm |
| Options | Crank length: 165mm, 170mm, 172.5mm. Chainring: 48/32T, 38T, 40T, 42T |
| SKU | DSG-PXZAYGR |
| Brand | Praxis |
