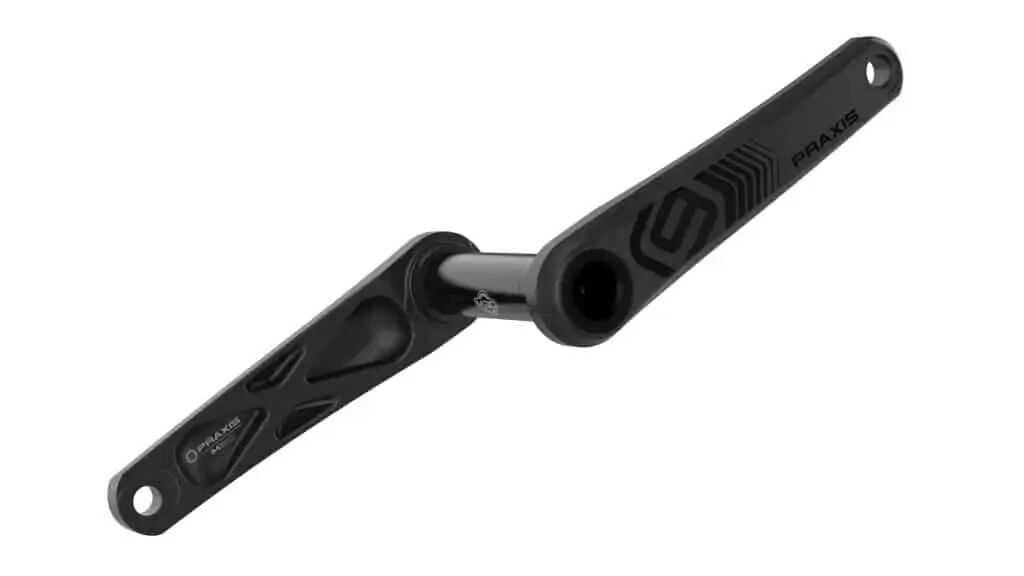

Praxis DH9 Alloy MTB Crank Arm Set – DH9-83 (83mm shell), 160mm
SKU code: DSG-PXDH9-83-160
In Stock
The DH9 is Praxis's gravity crank for downhill and long-travel bikes, forged from high-grade alloy with reinforced cross-sections. It comes in two spindle widths: the DH9-73 for regular mountain bike shells and the DH9-83 for downhill frames that need the longer spindle.
Highlights
- Reinforced forged alloy arms: 650 g for a 165 mm arm set (Praxis reference)
- DH9-73 for 73 mm BSA and BB90/92 shells; DH9-83 for 83 mm BSA and PF104.5/107 DH shells
- M30 alloy spindle (30 mm drive / 28 mm non-drive)
- 3-bolt direct-mount ring interface for any brand's DM ring
- 160 or 165 mm lengths
Which version?
Match the version to your frame's bottom bracket shell. The DH9-73 goes in regular 73 mm BSA, BB90 and BB92 mountain bike shells, so it also suits riders who are hard on equipment but don't ride a downhill bike. The DH9-83 is for the wider 83 mm BSA, PF104.5 and PF107 downhill shells and will not fit a regular mountain bike. As an example from Praxis, the Pivot Phoenix uses the DH9-73 with Praxis's M30-PF41 BB92 bottom bracket.
The arm set is sold without a ring. Any brand's 3-bolt direct-mount ring fits, and the ring's offset sets the chainline shown below.
Options
| Shell | Fits frames with | Q-factor | Chainline | Crank length |
|---|---|---|---|---|
| DH9-73 (73mm shell) | BSA 73 mm, PF41 BB90, PF41 BB92 | 172 mm | 55 mm (0 mm ring) / 52 mm (3 mm ring) | 160mm, 165mm |
| DH9-83 (83mm shell) | BSA 83 mm, PF41 x 104.5 mm, PF41 x 107 mm | 186 mm | 60 mm (0 mm ring) / 57.5 mm (3 mm ring) | 160mm, 165mm |
Compatibility & fit
Bottom bracket: needs a Praxis M30 bottom bracket (30 mm drive / 28 mm non-drive bearing) to suit your shell, sold separately.
Drivetrain: 1x Shimano or SRAM with a clutch rear derailleur; chain compatibility follows the direct-mount ring you fit.
The Tune Cycles workshop can fit the bottom bracket and crankset for you as a separate workshop service. Threaded shells need the right BB tool and press-fit shells need a proper bearing press, so it pays to have the shell checked and the bottom bracket fitted correctly first. The main crank bolt is torqued to 48–52 Nm with a torque wrench.
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner with proof of purchase. The warranty does not cover normal wear and tear (such as chainring tooth wear, worn anodising or coatings, bearing wear and general corrosion), or damage from a crash, impact, abuse, modification, or installation that does not follow Praxis's instructions and tools.
This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- Reinforced forged alloy arms for gravity riding
- Two spindle widths: DH9-73 and DH9-83
- M30 30/28 mm alloy spindle
- 3-bolt direct-mount ring interface
- 8 mm alloy self-extracting main bolt
| Intended use | Downhill and long-travel gravity bikes |
|---|---|
| Material | Reinforced forged alloy arms |
| Spindle | M30 alloy, 30 mm drive / 28 mm non-drive bearing |
| Bottom bracket | Praxis M30, sold separately. DH9-73: BSA 73, PF41 BB90, PF41 BB92. DH9-83: BSA 83, PF41 x 104.5, PF41 x 107 |
| Ring interface | 3-bolt direct mount; ring not included |
| Q-factor | DH9-73: 172 mm. DH9-83: 186 mm |
| Chainline | DH9-73: 55 mm (0 mm ring), 52 mm (3 mm ring). DH9-83: 60 mm (0 mm ring), 57.5 mm (3 mm ring) |
| Weight | 650 g (165 mm arm set, Praxis reference) |
| Main bolt | 8 mm alloy, self-extracting; 48–52 Nm |
| Options | Shell: DH9-73 (73mm shell), DH9-83 (83mm shell). Crank length: 160mm, 165mm |
| SKU | DSG-PXDH9-0000 |
| Brand | Praxis |
