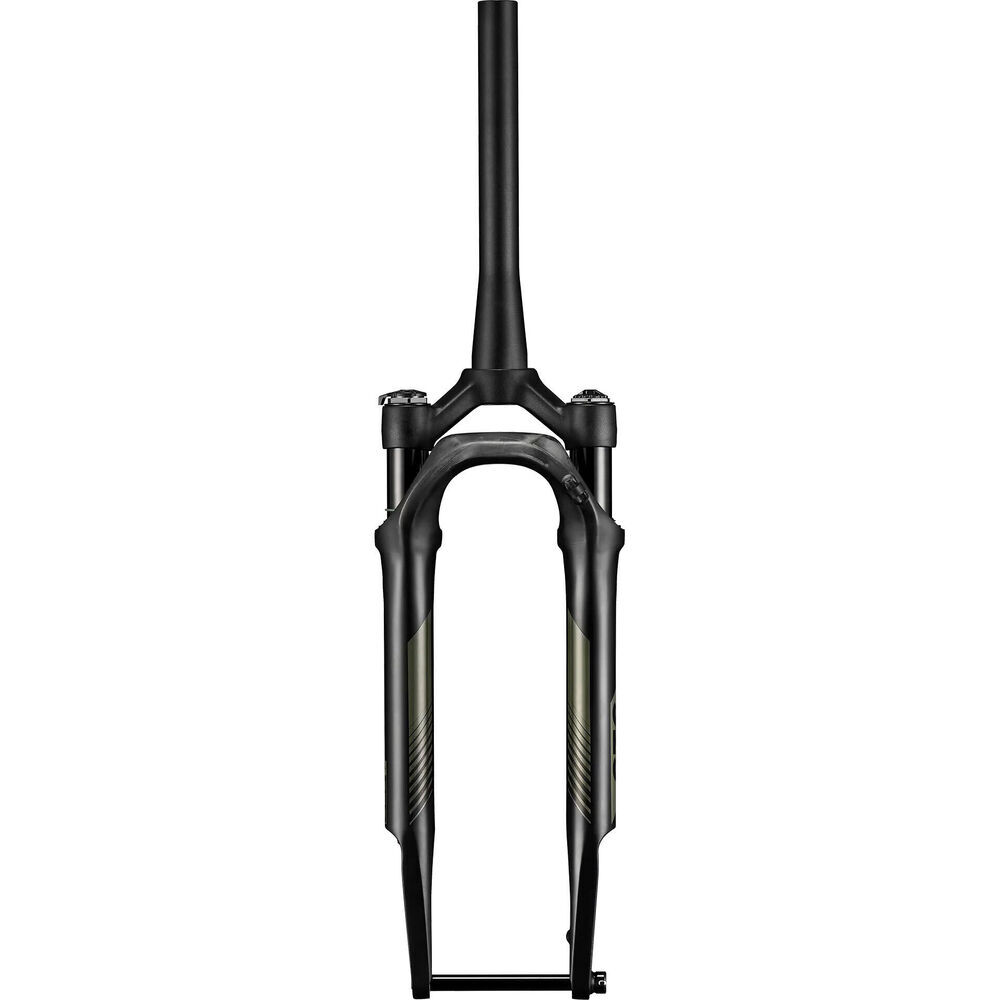

The KS GTC is a 40mm-travel gravel suspension fork that pairs an alloy crown and dropout section with carbon fibre lowers and brake arch, built to take the edge off rough gravel without the weight of a full off-road fork.

Highlights

  • 40mm of travel with an oil-damped cartridge, adjustable rebound and lockout
  • External low-speed compression adjustment and a lockout knob
  • AL6066-T6 forged crown with 30mm-diameter AL7050 hard-anodised stanchions
  • High-modulus carbon fibre and AL6061 composite lower legs
  • 1.5 inch to 1.125 inch tapered alloy steerer
  • Flat-mount disc brake compatible, 160-180mm rotors

Built for gravel

The carbon fibre lowers and brake arch keep weight down to around 1385g, while the alloy crown and dropouts carry the loads a gravel fork takes from washboard and rutted tracks.

Compatibility & fit

Fits frames with a 1.5 inch to 1.125 inch tapered steerer and a 12x100mm thru-axle hub, with clearance for tyres up to 700x50c. Flat-mount brake compatible with 160mm or 180mm rotors. Our workshop can handle fork fitting and servicing if you'd rather leave it to us.

KS products carry a two-year warranty from the original purchase date, covering repair or replacement of defective parts for the original owner. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, KS's Australian distributor.
  • 40mm travel, oil-damped cartridge
  • Adjustable rebound and lockout
  • Carbon fibre lowers and brake arch
  • 12x100mm thru-axle
  • Flat-mount disc, 160-180mm rotors
  • Clearance up to 700x50c tyres
Travel40mm
Offset46mm
Steerer1.5 inch to 1.125 inch tapered alloy
Axle12x100mm thru-axle
Brake mountFlat mount, 160-180mm rotor
Tyre clearanceUp to 700x50c
Weight1385g
CrownAL6066-T6 forged alloy
Stanchions30mm diameter, AL7050 hard-anodised
Lower legsHigh-modulus carbon fibre and AL6061 composite
SKU LNK-KSS-GTCFork40mm
Barcode # 4718022319968
Brand KS
Shipping Weight 1.8930kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.950m
