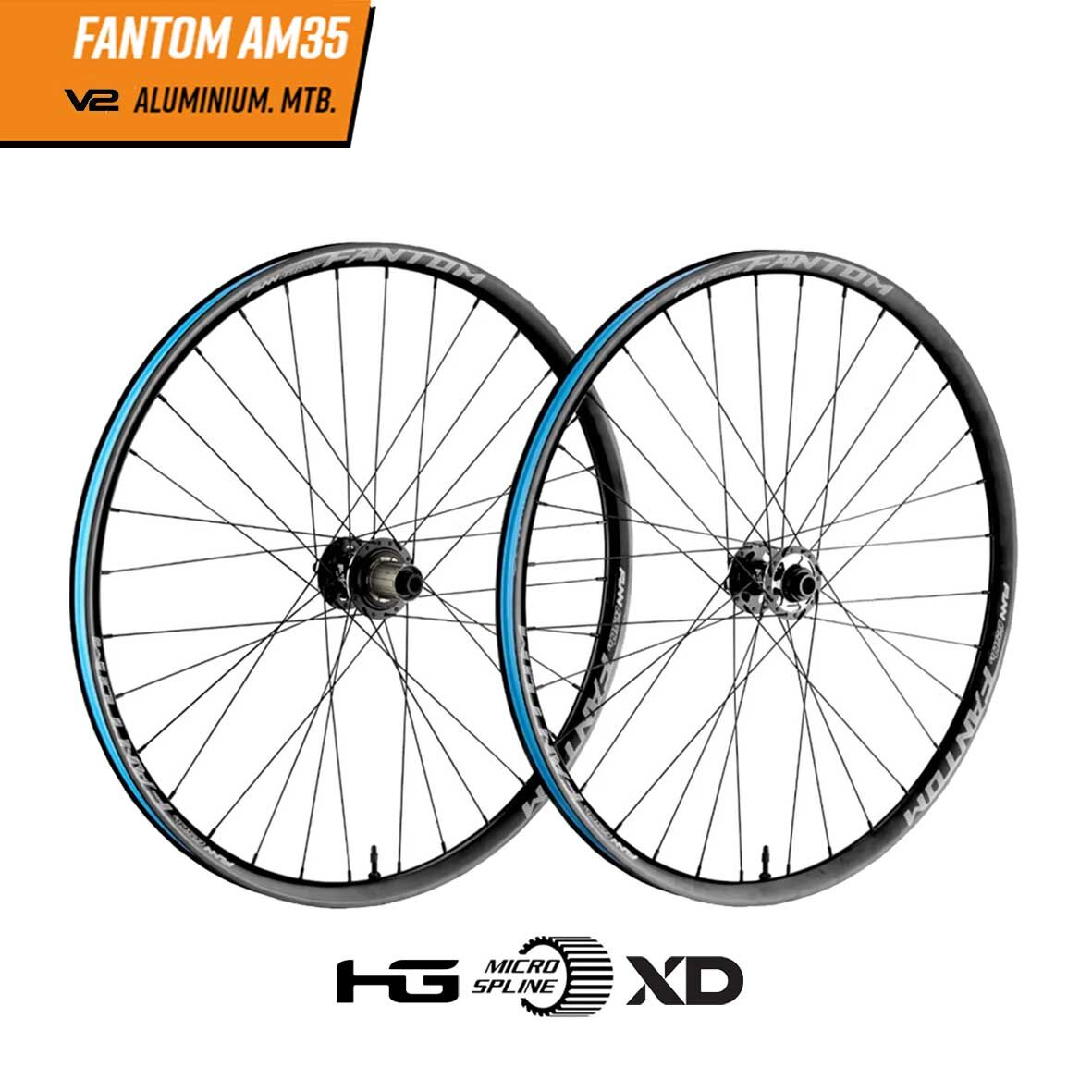

A complete enduro wheelset from FUNN: welded Fantom AM35 rims at 30mm internal width, laced to Fantom hubs with a quick-engaging six-pawl rear, for speed, control and durability on rough trails.

Highlights

  • 30mm internal / 35mm external welded alloy rims
  • 32 holes front and rear
  • Boost 15 x 110mm front, 12 x 148mm rear, 6-bolt disc
  • Rear hub: six pawls engaging together on a 102T ratchet, about 3.5° between engagement points
  • Shimano HG, Shimano Micro Spline or SRAM XD freehub
  • 27.5in, 29in or mullet
  • Tubeless-ready, supplied with tubeless rim tape and valves

Choosing your freehub

Match the freehub body to your cassette: HG for traditional splined Shimano cassettes, Micro Spline for Shimano 12-speed Micro Spline cassettes, or XD for SRAM XD cassettes. The cassette is not included.

Ready for tubeless

The wheels come supplied with tubeless rim tape and valves, so you only need tubeless tyres and sealant. The 30mm internal width is the all-round choice for modern trail and enduro tyres. Tyres, rotors, cassette and sealant are not included. Our workshop can fit tyres, set up tubeless, fit your cassette and rotors, and service the hubs as separate services.

Compatibility & fit

  • Frame and fork: Boost 12 x 148mm rear and 15 x 110mm front thru-axles
  • Disc brakes: 6-bolt rotors (not included)
  • Cassette: choose the freehub that matches it (Shimano HG, Shimano Micro Spline or SRAM XD)
  • Wheel size: 27.5in, 29in, or mullet (29in front, 27.5in rear); check what your frame and fork are built for

Sizes & options

Wheel sizeFreehub body
27.5 InchSRAM XD
27.5 InchShimano HG
27.5 InchShimano Micro Spline
29 InchSRAM XD
29 InchShimano HG
29 InchShimano Micro Spline
Mullet (29in front / 27.5in rear)SRAM XD
Mullet (29in front / 27.5in rear)Shimano HG
Mullet (29in front / 27.5in rear)Shimano Micro Spline
This FUNN product is covered against defects in materials and workmanship. Normal wear, crash or impact damage, and damage from incorrect fitting or misuse are not manufacturing defects, and your rights under Australian Consumer Law are not affected. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, FUNN's Australian distributor.
  • Fantom AM35 enduro wheelset, 30mm internal
  • Welded alloy rims, 32H
  • Boost 110 / 148, 6-bolt
  • Six-pawl, 102T rear hub
  • HG, Micro Spline or XD; tubeless-ready
RimsFantom AM35, 30mm internal / 35mm external, welded joint, sandblasted black anodised
Spoke count32H front and rear
HubsFantom; rear has six pawls on a 102T ratchet
AxlesBoost 15 x 110mm front, 12 x 148mm rear
Disc mount6-bolt
FreehubShimano HG, Shimano Micro Spline or SRAM XD (by option)
TubelessReady; tubeless rim tape and valves supplied
Weight1925g (27.5in) / 1995g (29in), Boost wheelset
SKU KWT-P-FN-FANTOM-WSAM35V2
Brand FUNN
Shipping Weight 2.6000kg
Shipping Width 0.700m
Shipping Height 0.240m
Shipping Length 0.700m
