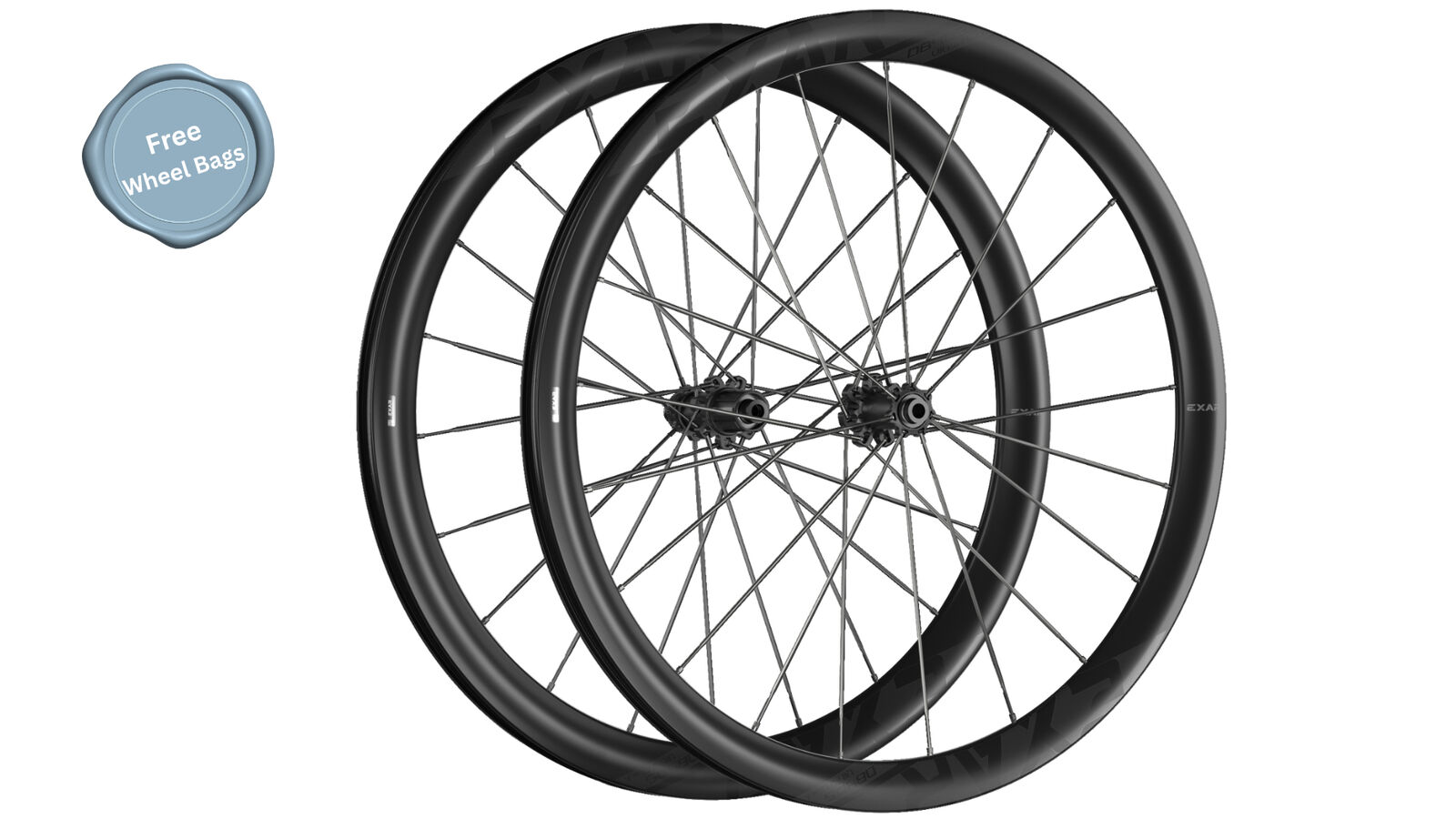

Magene EXAR DB405 UltraDark Carbon Disc Wheelset Shimano HG
SKU code: FES-DB405-DARK-26
The EXAR DB405 UltraDark takes Magene's carbon-spoked Ultra platform and finishes it in a dark black look that suits almost any frame, with a 40mm front and 45mm rear rim for fast, stable riding.
Highlights
- 40mm front / 45mm rear HI-MOD T800 carbon rims
- HI-MOD carbon fibre spokes, 2.8g each
- 36T flat ratchet (54T available separately)
- 1305g per pair (±3%)
- 30mm external / 23mm internal width, hooked rim
- Tubeless or clincher, 25c and up (28-32c suggested)
Lower front, higher rear
A shallower front rim keeps handling predictable in crosswinds, while the deeper rear rim adds aero benefit where it is least affected by wind.
Carbon spokes, stiff hubs
HI-MOD carbon spokes in a 2:1 balanced lacing pattern run at 130kgf ±10% drive side and 110kgf ±10% non-drive side on the rear. The hubs use standard bearings and a 36-tooth flat ratchet, which can be swapped for Magene's 54T ratchet.
Built for wider tyres
The 30mm external and 23mm internal rim width suits 28-32c tyres, creating a smooth tyre-to-rim transition for aerodynamics and comfort.
Compatibility & fit
Disc brake only, for 100mm front and 142mm rear thru-axles. Supplied with a Shimano HG 11-speed freehub; Campagnolo N3W and SRAM XDR freehub bodies are sold separately. Hooked rim, compatible with tubeless and clincher tyres from 25c (28-32c suggested). Maximum system weight (rider plus bike) is 110kg. Wheel set-up, tyre fitting and tubeless set-up are available from our workshop as a separate service, not included in the price.
Magene covers power meters and EXAR wheelsets with a 2-year warranty against manufacturing defects, from the date of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Magene's Australian distributor.
- 40mm front / 45mm rear HI-MOD carbon rims
- HI-MOD carbon fibre spokes, 2:1 lacing
- 36T flat ratchet, standard bearings
- 1305g per pair (±3%)
- Hooked rim, tubeless or clincher
- Shimano HG 11-speed freehub fitted
| Brake | Disc |
|---|---|
| Rim depth | 40mm front, 45mm rear |
| External width | 30mm |
| Internal width | 23mm |
| Rim material | HI-MOD T800 carbon fibre |
| Spokes | HI-MOD carbon fibre, 21H front and rear, 2:1 lacing |
| Bearings | Standard |
| Ratchet | 36T (54T available separately) |
| Axle | 100mm front, 142mm rear thru-axle |
| Freehub | Shimano HG 11-speed fitted; Campagnolo N3W and SRAM XDR sold separately |
| Tyres | Tubeless or clincher (hooked rim), 25c and above, 28-32c suggested |
| Max tyre pressure | 110psi clincher / 100psi tubeless (Magene) |
| Weight | 1305g ±3% (without rim tape and valves) |
| Max system weight | 110kg rider plus bike |
| SKU | FES-DB405-DARK-26 |
| Brand | Magene Cycling |
| Shipping Weight | 2.6000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.240m |
| Shipping Length | 0.700m |
