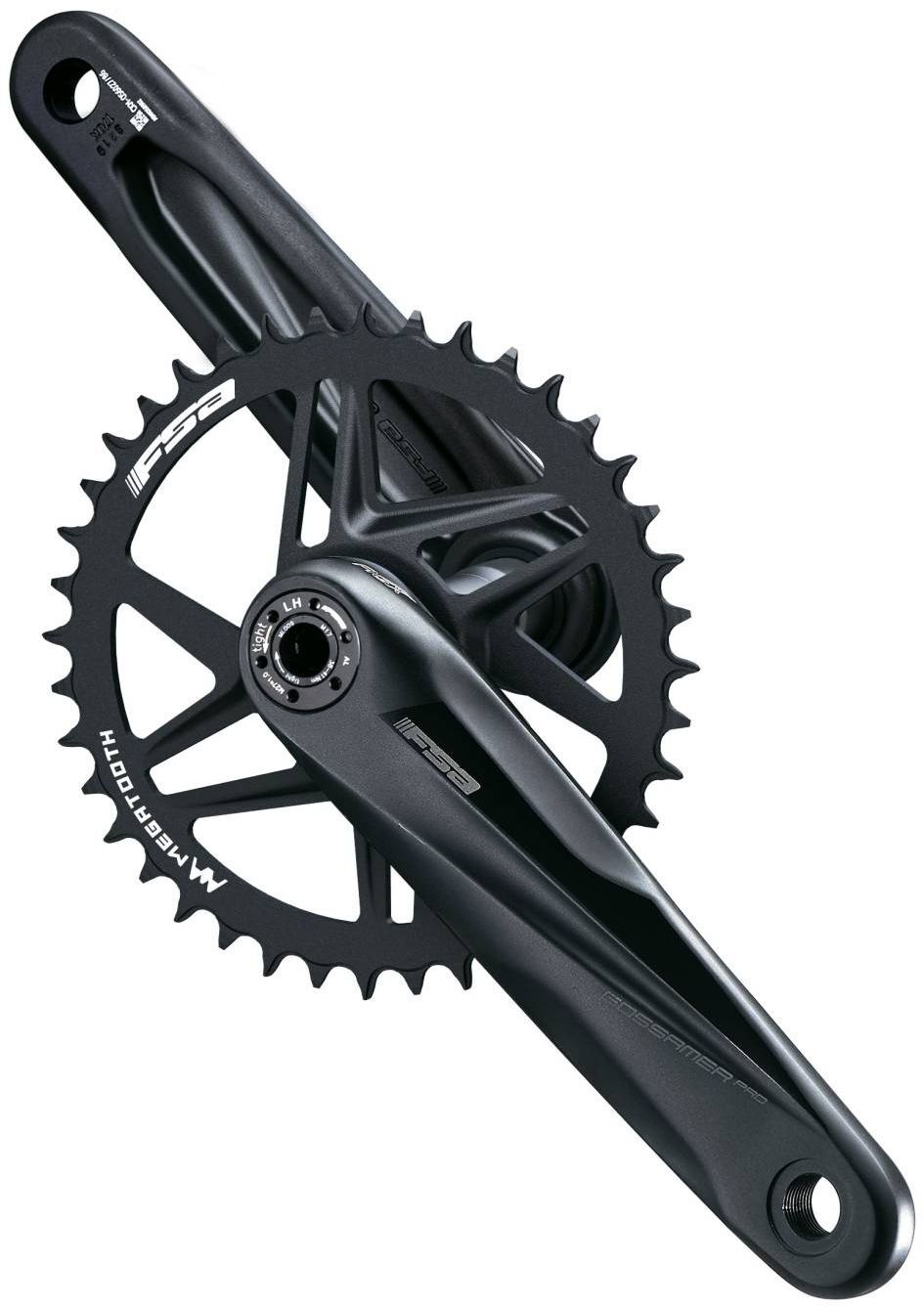

This listing covers the FSA Gossamer Pro AGX+ DM 1x MegaExo Crankset, 40T in 2 crank length options: 170mm, 172.5mm. Choose your crank length above and the price, stock and details update for that option.

Highlights

  • Crank Length options: 170mm, 172.5mm
  • Chainring: 40T direct mount Megatooth
  • Spindle: 24mm MegaExo, forged AL7050
  • Ring mount: Direct mount (DM/90mm)
  • Chainline: 50mm
  • Q-factor: 154.7mm

Details

Gossamer Pro is FSA's high-end alloy crank family, and the AGX+ version is set up for gravel. The arms are cold forged from AL6061 and the spindle is forged AL7050. The AGX+ geometry uses a wider Q-factor and chainline than a road crank, which gives room for wide gravel tyres and a straighter chain on a wide-range cassette.

Fit and compatibility

It uses a 24mm MegaExo spindle, so it needs a 24mm MegaExo-compatible bottom bracket for your frame's shell (sold separately). The 40T setup is direct mount.

Fitting

Fitting a crankset means removing the old crank and bottom bracket, checking the frame's shell, and setting the correct preload on the non-drive arm. If you'd rather not do it at home, our workshop can fit it and check the chainline and shifting at the same time.

Not sure which bottom bracket or crank length you need? Send us your frame model and current setup and we'll check it before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Stripped pedal threads, crash damage, incorrect installation and modification aren't covered.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Cold forged AL6061 arms
  • Forged AL7050 24mm MegaExo spindle
  • Direct-mount chainring
  • Bead-blasted black with polished anodised black finish
  • 170mm arms
Crank Length170mm, 172.5mm
Chainring40T direct mount Megatooth
Spindle24mm MegaExo, forged AL7050
Ring mountDirect mount (DM/90mm)
Chainline50mm
Q-factor154.7mm
DrivetrainShimano and SRAM 11-12 speed
Weight735.9g (40T)
SKU BPW-FSA-P-GOSS-AGX-40
Brand FSA
