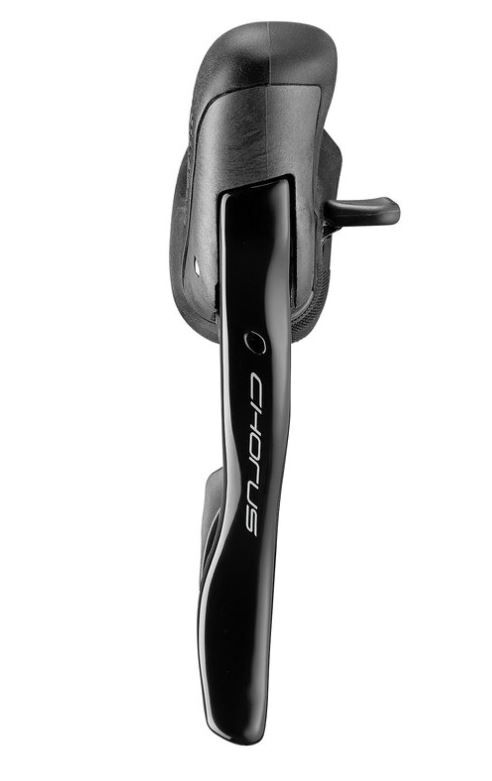

Chorus 12-speed disc brake Ergopower controls share almost everything with Super Record and Record: the same hood shape, larger shift levers, reach adjustment and Ultra-Shift, with a coated aluminium brake lever.

Highlights

• Vari-Cushion hoods in a variable-density, hypoallergenic material for all-day comfort
• One lever-one action: brake, upshift and downshift each have their own lever
• Ultra-Shift mechanism: up to 3 sprockets per upshift and up to 5 per downshift
• Coated aluminium brake lever; otherwise almost identical to the Super Record and Record controls
• Supplied with a 160mm front flat-mount hydraulic caliper with 22 mm pistons

Right-hand lever + front caliper

This is the right-hand control, which operates 12-speed rear derailleur shifting and its paired brake. It comes with a 160 mm front flat-mount caliper, designed for a flat-mount fork and a 160 mm rotor (no front adaptor needed).

Because each Ergopower is sold with either a front or rear caliper, you can set the brakes up the way you ride: front brake on the right lever or on the left. Choose the matching opposite-side lever and caliper to complete the pair.

Hydraulic braking

Campagnolo's flat-mount calipers use 22 mm phenolic-resin pistons for braking power and thermal insulation, an optimised pad return for zero drag when the lever is released, and pads with wear indicators and an anti-vibration plate.

Compatibility & fit

For Campagnolo 12-speed mechanical (Ultra-Shift) 2x road drivetrains. Not for 11-speed, 13-speed, EPS or wireless systems.

The caliper is Campagnolo's standard flat mount and uses mineral oil only; DOT fluid will damage the seals. Campagnolo's rider weight limit for this rotor size: rider up to 109 kg; rider + bike + accessories up to 120 kg. Mount the Ergopower on the curved part of the bar with a 60–75 mm radius and 23.8–24.2 mm diameter.

Fitting, hose cutting and bleeding Campagnolo hydraulic brakes are separate workshop services and are not included in the price. Tune Cycles' workshop can set up and bleed your Campagnolo disc brakes.
