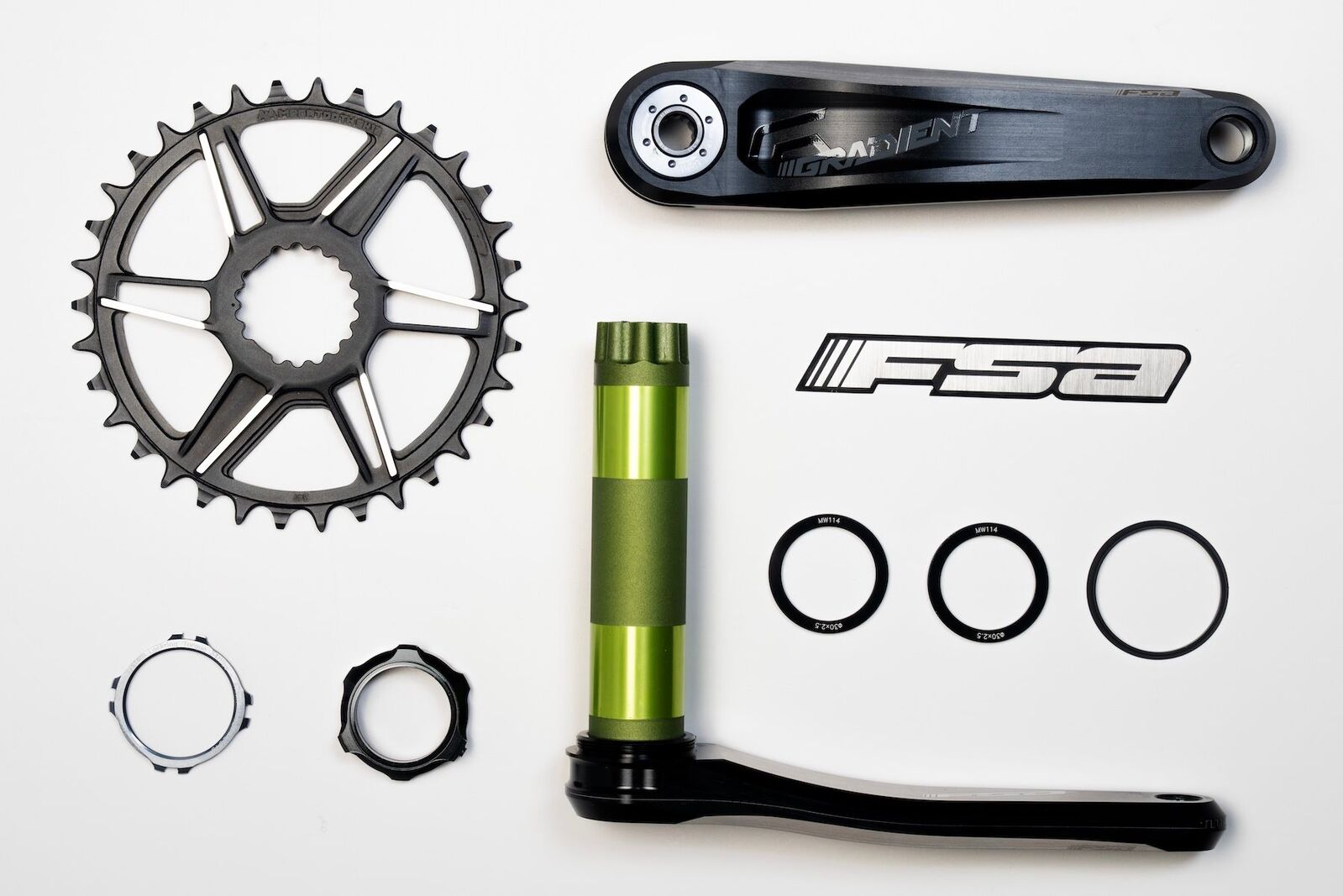

A 1x mountain bike crankset from FSA's Gradient range, with 36T chainring on 165mm arms.

Highlights

  • 165mm crank length
  • Forged and CNC-machined alloy arms
  • Forged AL7050 BB392EVO 30mm spindle
  • Modular direct-mount chainring
  • 36T chainring
  • Shimano and SRAM 11-12 speed

Details

Gradient is FSA's trail, enduro and downhill line. The modular crank uses forged and CNC-machined alloy arms with a hard-anodised finish, and a forged AL7050 BB392EVO spindle. Because it's modular, the direct-mount ring swaps with FSA's lockring tool, and the chainline can be adjusted to suit Boost or standard spacing.

Fit and compatibility

It uses a BB392EVO spindle, so it needs a BB392EVO-compatible bottom bracket for your frame (sold separately). The ring is 36T direct mount. 165mm is a popular pick for smaller riders, and for anyone after a more open hip angle or more pedal clearance.

Fitting

Fitting a crankset means removing the old crank and bottom bracket, checking the frame's shell, and setting the correct preload on the non-drive arm. If you'd rather not do it at home, our workshop can fit it and check the chainline and shifting at the same time.

Not sure which bottom bracket or crank length you need? Send us your frame model and current setup and we'll check it before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Stripped pedal threads, crash damage, incorrect installation and modification aren't covered.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Forged and CNC-machined alloy arms
  • Forged AL7050 BB392EVO 30mm spindle
  • Modular direct-mount chainring
  • Adjustable chainline
  • 165mm arms
Crank length165mm
Chainring36T direct mount, Shimano 12-speed
SpindleBB392EVO, forged AL7050
Ring mountDirect mount (modular)
Chainline52-55mm (adjustable)
Q-factor177mm
FinishHard-anodised black
DrivetrainShimano and SRAM 11-12 speed
SKU BPW-FSA-0080
Model # FSA-0080
Barcode # 4711233868423
Brand FSA
