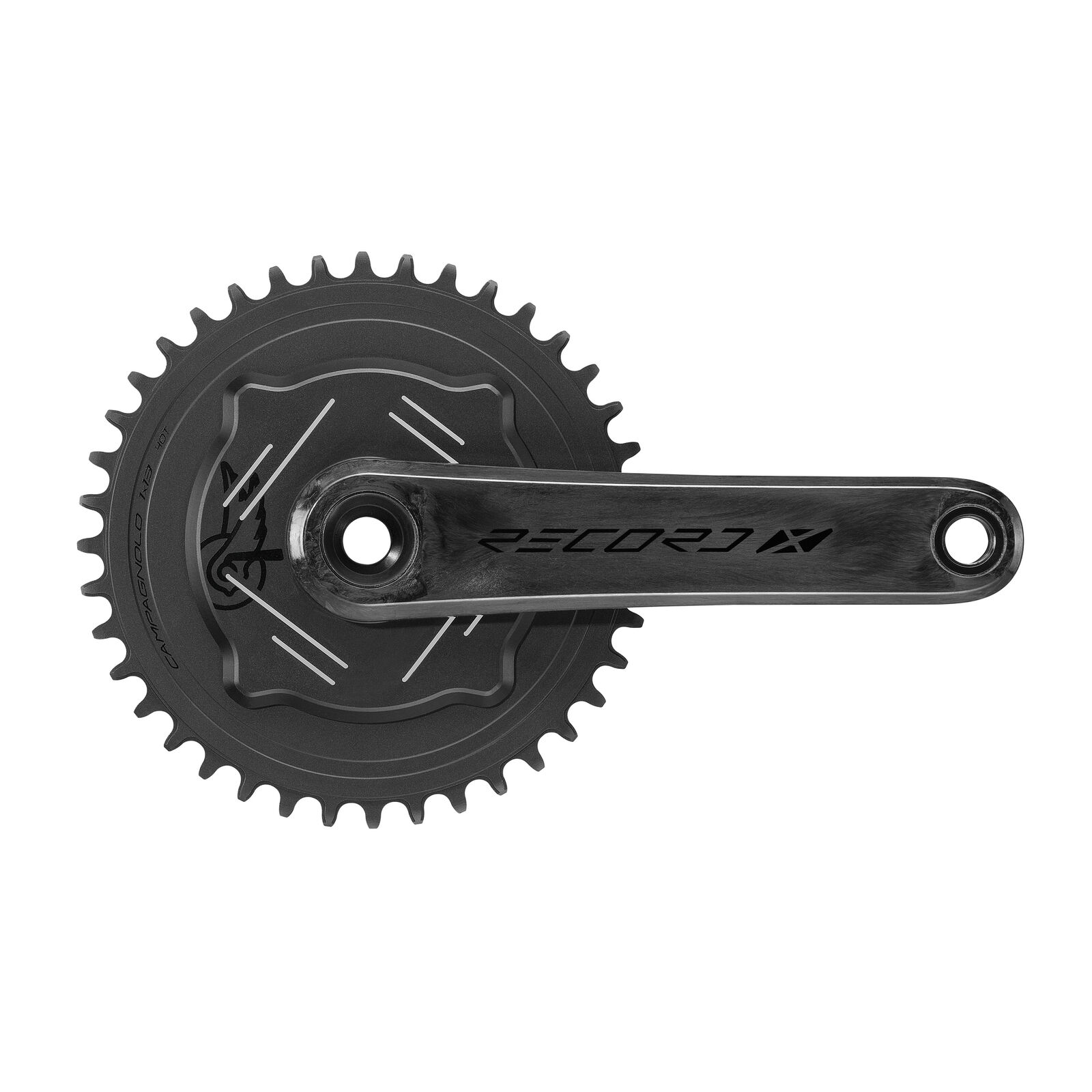

Campagnolo Record X 1x13 QCK-Tech Crankarm Set – 165mm
SKU code: FES-FC03-REX13165CA
Record X is Campagnolo's more accessible 13-speed gravel crank: exposed carbon arms, a gravel chainline for wide tyres and a sealed QCK-Tech bottom bracket, with single chainrings from 38 teeth.
Highlights
- Gravel geometry: 47.5mm chainline, 152mm Q-factor
- Exposed carbon fibre crank arms
- Steel (ASTM2) spindle
- QCK-Tech bottom bracket with dual sealing
- Aluminium chainrings 38 to 48T, expandable to 52T
Built for gravel
Record X uses a 47.5mm chainline and 152mm Q-factor for full gravel-frame compatibility, a steel (ASTM2) spindle, and the QCK-Tech bottom bracket with low-friction bearings and a patented dual sealing system.
Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.
Options
| Crank length | What differs |
|---|---|
| 165mm | Crank arm length only |
| 170mm | Crank arm length only |
| 172.5mm | Crank arm length only |
Compatibility & fit
Designed for Campagnolo Record X 1x 13-speed gravel drivetrains. Campagnolo lists compatibility with the X 13-speed 10-48 cassette and Super Record X cassettes. Requires a Campagnolo bottom bracket cup to suit your frame's shell.
Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
- 47.5mm chainline, 152mm Q-factor
- Exposed carbon arms
- Steel spindle
- Sealed QCK-Tech bottom bracket technology
- 165, 170, 172.5mm
| Brand | Campagnolo |
|---|---|
| Groupset | Record X (13-speed) |
| Speeds | 13 (1x) |
| Type | Crankarm set |
| Crank arms | Carbon fibre |
| Spindle | Steel (ASTM2) |
| Chainline | 47.5mm |
| Q-factor | 152mm |
| Crank lengths | 165, 170, 172.5mm |
| Chainring options | 38, 40, 42, 44, 46, 48T (up to 52T) |
| Claimed weight (complete crankset) | 687 g (172.5mm, 40T aero, bearings assembled) |
| SKU | FES-P-30568 |
| Brand | Campagnolo |
| Shipping Weight | 0.9000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
