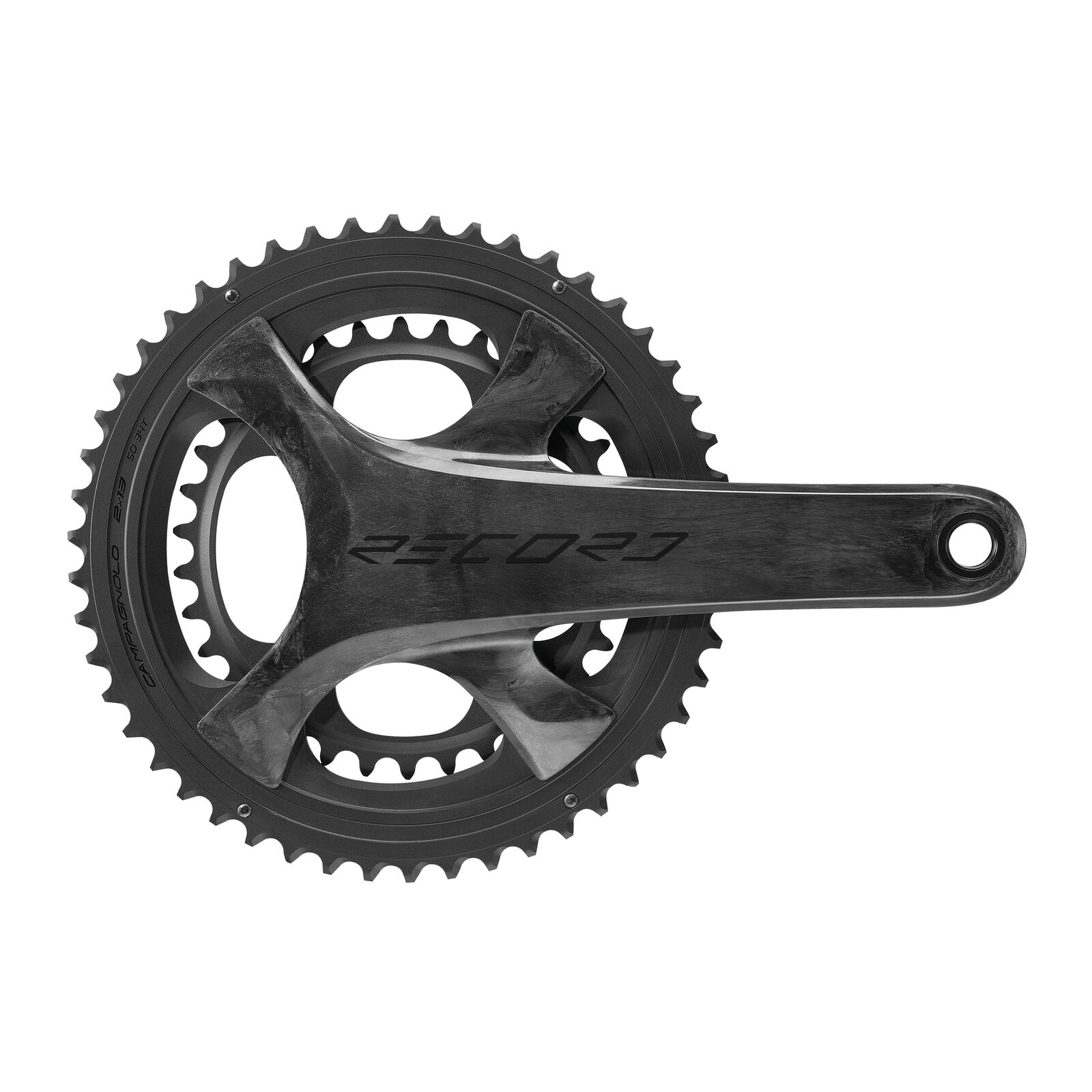

Record 13 brings the 13-speed platform to a more accessible price, and this is its 2x crank: exposed carbon arms on an Ultra-Torque steel axle, sharing chainrings with Super Record 13 for the same seven gearing choices.

Highlights

  • Exposed carbon fibre crank arms
  • Ultra-Torque system with steel axle
  • Seven 2x chainring combinations, 45/29 to 55/39
  • Shares chainrings and cassettes with Super Record 13
  • Three lengths: 165, 170, 172.5mm

Record vs Super Record

The main difference from Super Record 13 is the axle: Record uses steel instead of titanium, with reduced cross-sections to control weight. Chainrings are shared, so you get the full 45/29 to 55/39 range.

Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.

Options

Crank lengthWhat differs
165mmCrank arm length only
170mmCrank arm length only
172.5mmCrank arm length only

Compatibility & fit

Designed for Campagnolo Record 13 (13-speed) 2x drivetrains. Campagnolo states chainrings and cassettes developed for Super Record 13 are fully compatible with Record 13. Available in 165, 170 and 172.5mm only (no 175mm in Record 13). Requires a Campagnolo bottom bracket cup to suit your frame's shell.

Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.

  • Exposed carbon crank arms
  • Ultra-Torque steel axle
  • 45/29 to 55/39 chainring choice
  • Shares chainrings with Super Record 13
  • 165, 170, 172.5mm
BrandCampagnolo
GroupsetRecord 13
Speeds13 (2x)
TypeCrankarm set
Crank armsCarbon fibre
AxleUltra-Torque, steel
Crank lengths165, 170, 172.5mm
Chainring combinations45/29, 48/32, 50/34, 52/36, 53/39, 54/39, 55/39
Claimed weight (complete crankset)686 g (172.5mm, 45x29, bearings assembled)
SKU FES-P-30566
Brand Campagnolo
