The crank at the heart of Campagnolo's Super Record 13 drivetrain: exposed carbon arms and a titanium Ultra-Torque semi-axle that sends every watt straight to the chainrings. Build it up with the chainring pair that suits your riding, from 45/29 through to 55/39.

Highlights

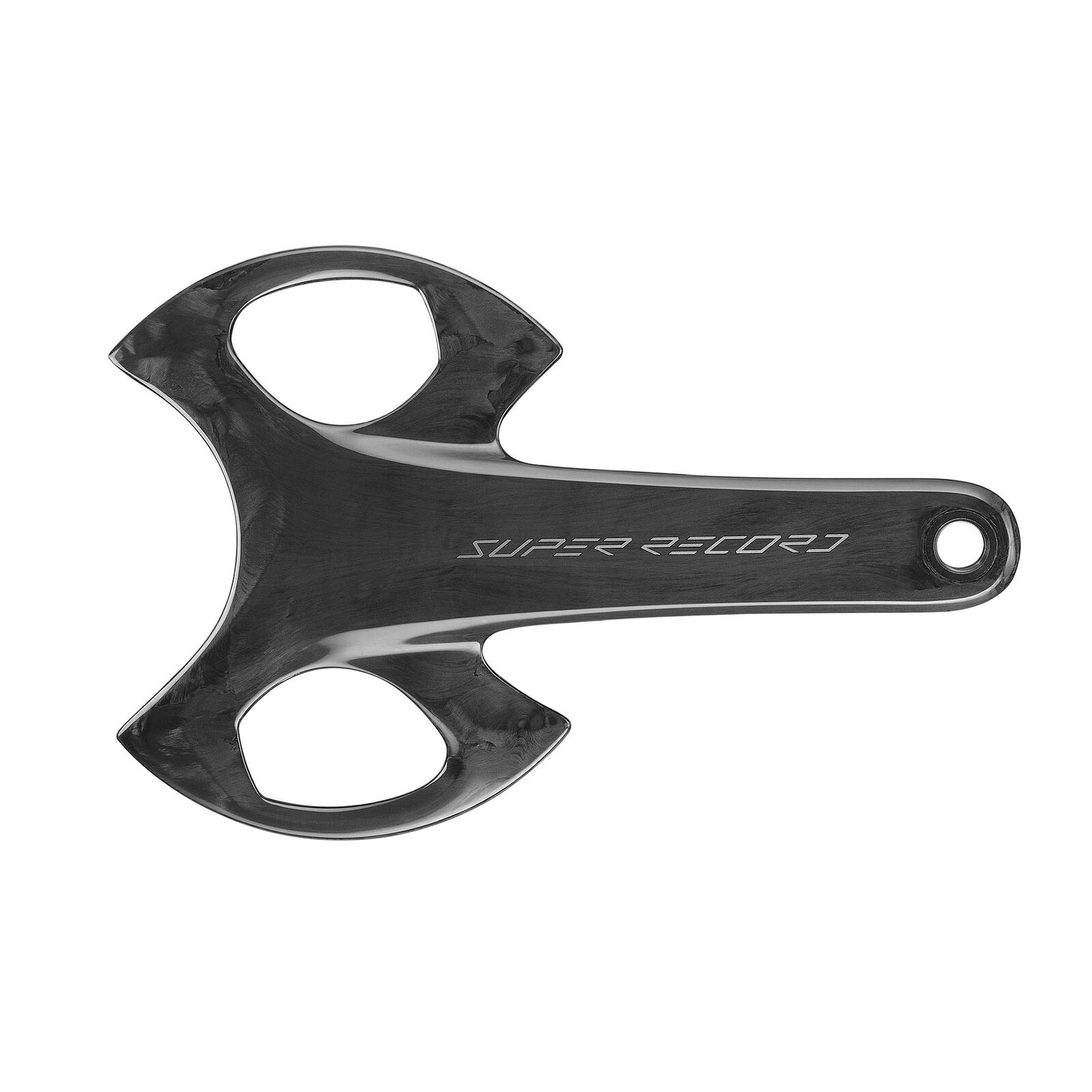

  • Exposed carbon fibre crank arms
  • Ultra-Torque system with titanium semi-axle
  • QCK-Tech (QuickTech) technology and Campagnolo high-smoothness bearings
  • Pairs with seven 13-speed chainring combinations, 45/29 to 55/39
  • Four crank lengths: 165, 170, 172.5 and 175mm

Crankarm set, chainrings separate

This listing is the crankarm set only. Chainrings are sold separately, so you can choose any of the seven Super Record 13 combinations: 45/29, 48/32, 50/34, 52/36, 53/39, 54/39 or 55/39. The redesigned chainring tooth profile and surface finish are engineered for smooth, quiet, precise shifting and long wear.

Built for the 13-speed platform

Together with Campagnolo's four 13-speed cassettes, the 2x crankset gives an unusually wide choice of gearing, from endurance ratios to race-day combinations.

Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.

Options

Crank lengthWhat differs
165mmCrank arm length only; all other specifications are the same
170mmCrank arm length only; all other specifications are the same
172.5mmCrank arm length only; all other specifications are the same
175mmCrank arm length only; all other specifications are the same

Compatibility & fit

Designed for Campagnolo Super Record 13 (13-speed) 2x drivetrains with 13-speed cassettes and Super Record 13 chainrings. Campagnolo states Super Record 13 chainrings and cassettes are also fully compatible with Record 13. Requires a Campagnolo bottom bracket cup to suit your frame's shell; ask us if you're unsure which one you need.

Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.

  • Exposed carbon fibre crank arms
  • Titanium Ultra-Torque semi-axle
  • QCK-Tech technology
  • Seven 13-speed chainring combinations available (sold separately)
  • 165, 170, 172.5 and 175mm lengths
BrandCampagnolo
GroupsetSuper Record 13
Speeds13 (2x)
TypeCrankarm set (chainrings sold separately)
Crank armsCarbon fibre
AxleUltra-Torque, titanium semi-axle
TechnologyQCK-Tech
Crank lengths165, 170, 172.5, 175mm
Chainring combinations (separate)45/29, 48/32, 50/34, 52/36, 53/39, 54/39, 55/39
Claimed weight (complete crankset)590 g (172.5mm, 45x29, bearings assembled)
SKU FES-P-29090
Brand Campagnolo
