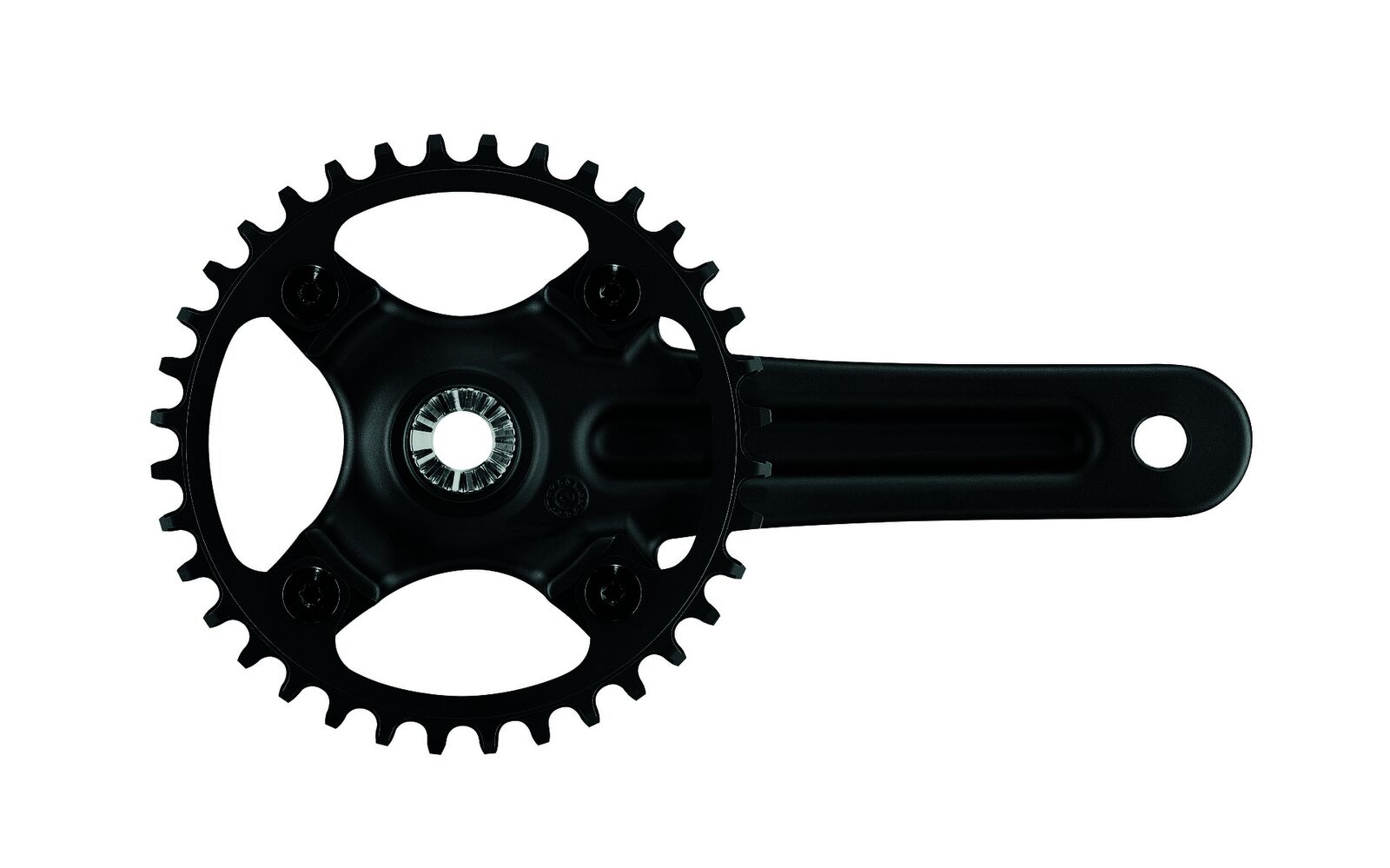

Ekar GT is Campagnolo's mechanical 1x13 gravel groupset, and this robust aluminium crankset is its foundation: simple single-ring gearing, strong steel semi-axles and bearings you can inspect without pulling the cups.

Highlights

  • 1x13 gravel drivetrain: no front derailleur, better chain security
  • Aluminium arms with AISI 630 steel Ultra-Torque semi-axles
  • Pro-Tech Hirth-joint axle joined by a single screw
  • Five 7075 aluminium chainrings, 36T to 44T, 104 BCD
  • Crank lengths 170, 172.5 and 175mm
  • 151mm Q-factor

Pro-Tech durability

Pro-Tech joins the two semi-axles inside the bottom bracket with a single sturdy screw. The oversize stainless steel bearings sit on the crank, so they're easy to inspect and service without removing the cups.

Easy gearing changes

The 7075 aluminium rings bolt to four symmetrical arms on a 104mm BCD and swap without removing the crankset, so changing ratio for different terrain is quick. Claimed weight is 850g (172.5mm, 38T).

Options

ChainringCrank lengths available
36T170mm, 172.5mm, 175mm
38T170mm, 172.5mm, 175mm
40T170mm, 172.5mm, 175mm
42T170mm, 172.5mm, 175mm
44T170mm, 172.5mm, 175mm

Compatibility & fit

For the Campagnolo Ekar GT 13-speed 1x groupset. Uses Campagnolo Pro-Tech bottom bracket cups (sold separately). Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • Aluminium crank arms
  • AISI 630 steel semi-axles
  • Pro-Tech Hirth-joint axle
  • 104mm BCD, four symmetrical arms
  • 7075 aluminium chainrings
  • 151mm Q-factor
GroupsetCampagnolo Ekar GT 13-speed
Speeds1x13
Crank materialAluminium
Semi-axlesAISI 630 steel
Axle systemPro-Tech
BCD104mm
Chainrings36T, 38T, 40T, 42T, 44T (7075 aluminium)
Crank lengths170, 172.5, 175mm
Q-factor151mm
Claimed weight850g (172.5mm, 38T)
SKU FES-P-25992
Brand Campagnolo
