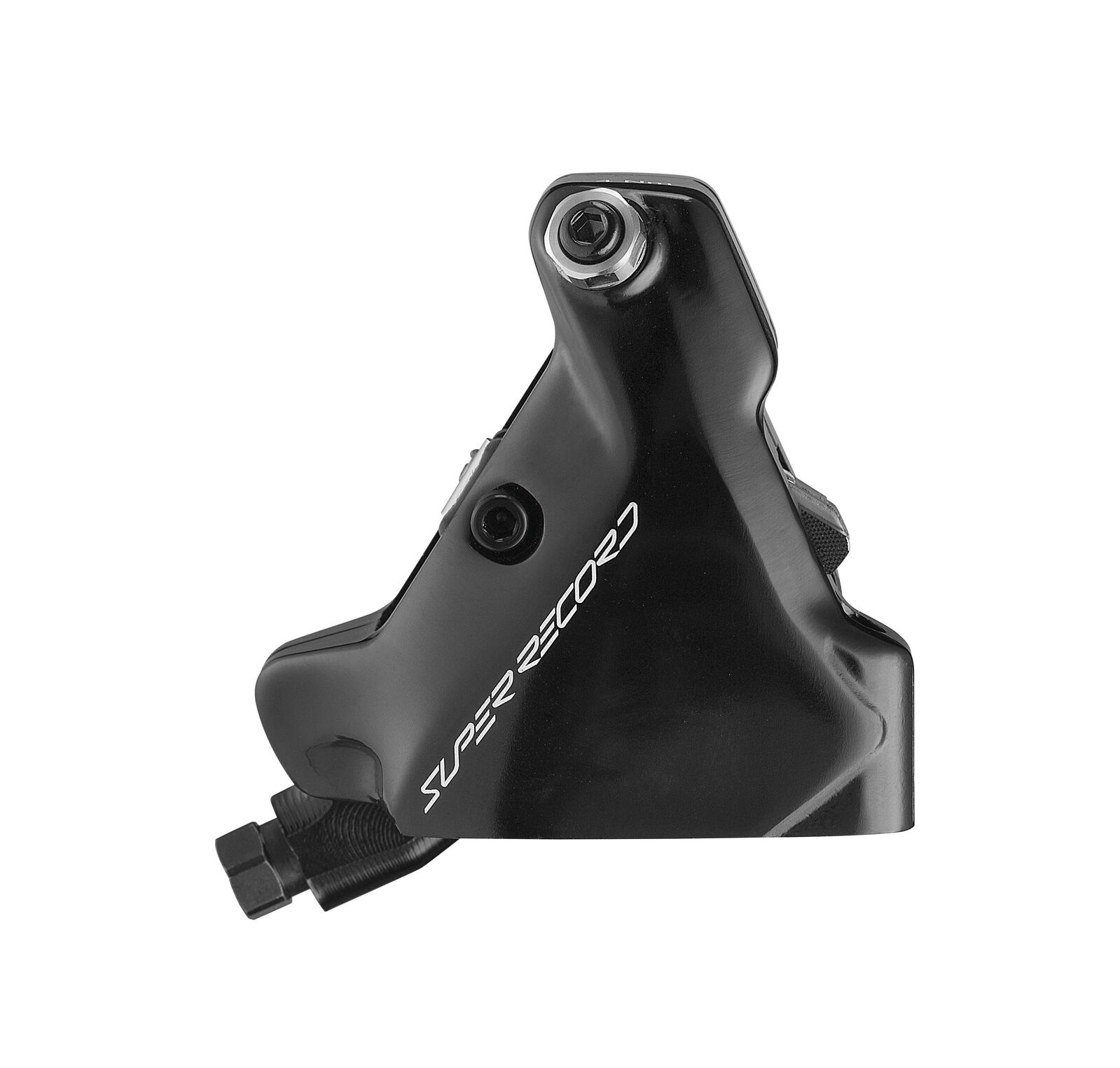

The Super Record 13 caliper delivers the powerful, progressive and smooth braking of Campagnolo's 13-speed platform, here as a 140mm front or rear kit supplied with hose, mineral oil.

Highlights

• 22 mm pistons: braking power with thermal insulation
• Forged aluminium body with titanium retention screws
• Optimised pad return system for drag-free release
• Wide pad friction surface to dissipate heat and reduce glazing
• Supplied with hose, mineral oil

Fitting this caliper

The most versatile Super Record 13 caliper: Campagnolo approves it front or rear in any configuration, with adaptors where needed. Front: add the front adaptor (140 or 160 position). Rear: fits a flat-mount chainstay with a 140 mm rotor, or a 160 mm rotor with the rear adaptor. Rear mounting screws are chosen by chainstay thickness: 19 mm (10–14 mm), 24 mm (15–19 mm), 29 mm (20–24 mm), 34 mm (25–29 mm), 39 mm (30–34 mm) and 44 mm (35–39 mm).

Pads

Organic pads come standard; Campagnolo's sintered pads are the option for wet weather and low temperatures. Both have sound-absorbing plates and wear indicators.

Compatibility & fit

Part of Campagnolo's Super Record 13 platform (wireless 13-speed). Flat-mount frames and forks only, 140 or 160 mm rotors (Campagnolo makes no 180 mm rotor). Mineral oil only. Campagnolo's weight limits: 140 mm rotors for riders up to 82 kg (90 kg rider + bike + accessories); 160 mm rotors up to 109 kg (120 kg total).

Fitting, hose cutting and bleeding Campagnolo hydraulic brakes are separate workshop services and are not included in the price. Tune Cycles' workshop can set up and bleed your Campagnolo disc brakes.
