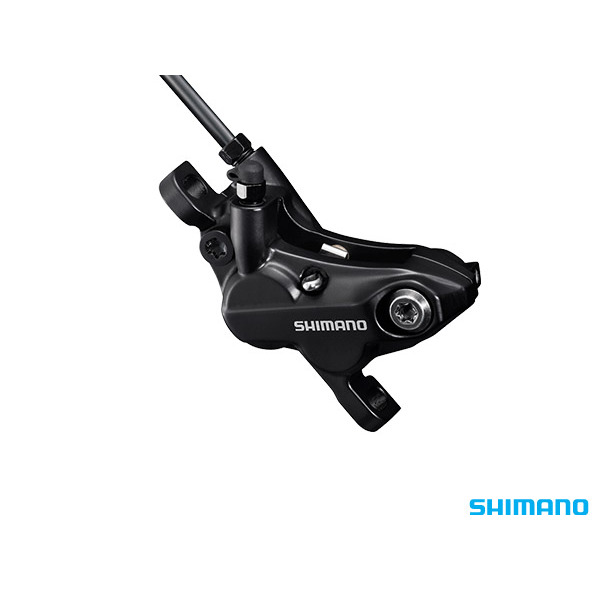

BR-MT520

SHIMANO - 4-Piston - Hydraulic Disc Brake Caliper - MTB

With a strong, 4-piston design, the SHIMANO MT520 hydraulic disc brake boosts rider confidence and enjoyment.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • High power brake performance boosts rider confidence and enjoyment
  • Wider contact area of dual diameter opposed-piston design
  • Four Piston Caliper
  • Highly responsive braking power for greater control
  • Rapid initial pad contact and controllable brake power modulation
  • SERVOWAVE
  • Stable braking and greater durability
  • Sleek and durable master cylinder design
  • Heat insulated pad and piston
  • MODEL NO: BR-MT520
  • SHIMANO Series
  • Black Color
  • Black Brake hose color (kit)
  • Brake hose (Kit): SM-BH90-SS
  • Hydraulic disc brake type
  • Anti loosen method    Snap ring Caliper fixing bolt
  • Caliper fixing bolt Tool size: 5mm
  • Hose joint    Straight
  • J-Kit spec (for OEM)
  • Mount type: Post-type
  • Oil SHIMANO Mineral
  • ONE WAY BLEEDING
  • D03S resin | D02S Metal Pad Standard
  • Split pin Pad mount
  • Piston: 4
  • Recommended brake lever: BL-MT501
  • Recommended disc brake rotor: SM-RT70
  • Compatible Brake Rotor Size: 140 mm (SS)
  • Compatible Brake Rotor Size: 160 mm (S)
  • Compatible Brake Rotor Size: 180 mm (M)
  • Compatible Brake Rotor Size: 203 mm (L)
SKU SHM-EBRMT520MPRXL
Barcode # 4524667686576
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
