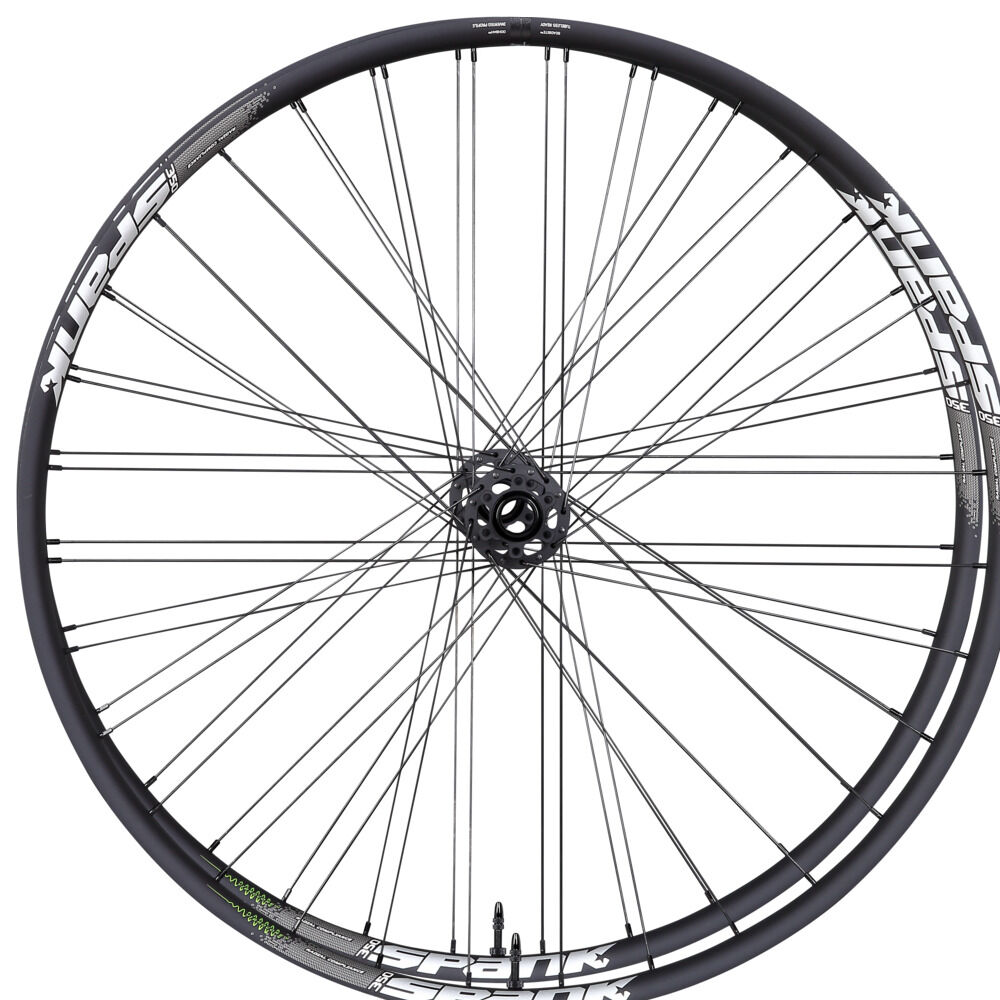

Spank Hex 350 Vibrocore Boost MTB Wheel – Front 27.5in 32H 110mm
SKU code: LNK-SPA-C090222F20J220A
$499.95
The Spank Hex 350 Vibrocore pairs the foam-filled Vibrocore rim with Spank's Hex Drive hub for a smoother-riding trail and all-mountain wheel on short-travel bikes. Choose the front or rear wheel in 27.5in or 29in.
Highlights
- 30.5mm internal rim width with a Vibrocore foam-filled core for vibration damping
- Spank Hex Drive hub, 102-tooth 6-pawl ratchet, 3.5° engagement
- Front wheel: 15x110mm Boost axle, 6-bolt rotor mount
- Rear wheel: 12x148mm Boost axle, 6-bolt rotor mount, freehub body sold separately
- J-Hook triple-butted spokes, brass external nipples, 3-cross lacing
- Tubeless taped and valved
Who it's for
Spank lists the 350 Vibrocore for all-mountain and trail riding on short-travel bikes, for medium-to-light riders. It isn't rated for e-bikes; for enduro, bike-park or e-bike riding, choose the Spank Hex 359 wheels.
Compatibility & fit
The front wheel fits 15x110mm Boost forks; the rear fits 12x148mm Boost frames. The rear ships without a freehub body – Spank offers Shimano HG, SRAM XD and Shimano Microspline options to match your drivetrain.
Sizes & options
| Wheel |
|---|
| Front 27.5in 32H 110mm |
| Front 29in 32H 110mm |
| Rear 27.5in 32H 148mm (without freehub body) |
Spank's standard warranty on the Hex 350 Vibrocore Boost wheel covers manufacturer defects in materials and workmanship for two years from the original purchase date through an authorised Spank seller; it doesn't cover wear and tear, accidents, abuse or unauthorised repairs. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
- 30.5mm internal rim width
- Vibrocore foam-filled core for vibration damping
- Spank Hex Drive hub, 102T/6-pawl, 3.5° engagement
- Front: 15x110mm Boost; rear: 12x148mm Boost, freehub body sold separately
- J-Hook triple-butted spokes, 3-cross lacing
- Tubeless taped and valved
| Rim inner width | 30.5mm |
|---|---|
| Rim outer width | 35mm |
| Profile height | 17mm |
| Tyre compatibility | 2.0in–2.6in |
| Hub | Spank Hex Drive, 102T, 6-pawl, 3.5° engagement |
| Front axle | 15x110mm Boost |
| Rear axle | 12x148mm Boost |
| Rotor mount | 6-bolt |
| Hole count | 32H |
| Spokes | J-Hook, triple-butted 2.2/1.8/2.0mm, 3-cross |
| Freehub | Sold separately – Shimano HG, SRAM XD or Shimano Microspline |
| SKU | LNK-P-SPA-350-VC-BST-WHL |
| Brand | Spank |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
