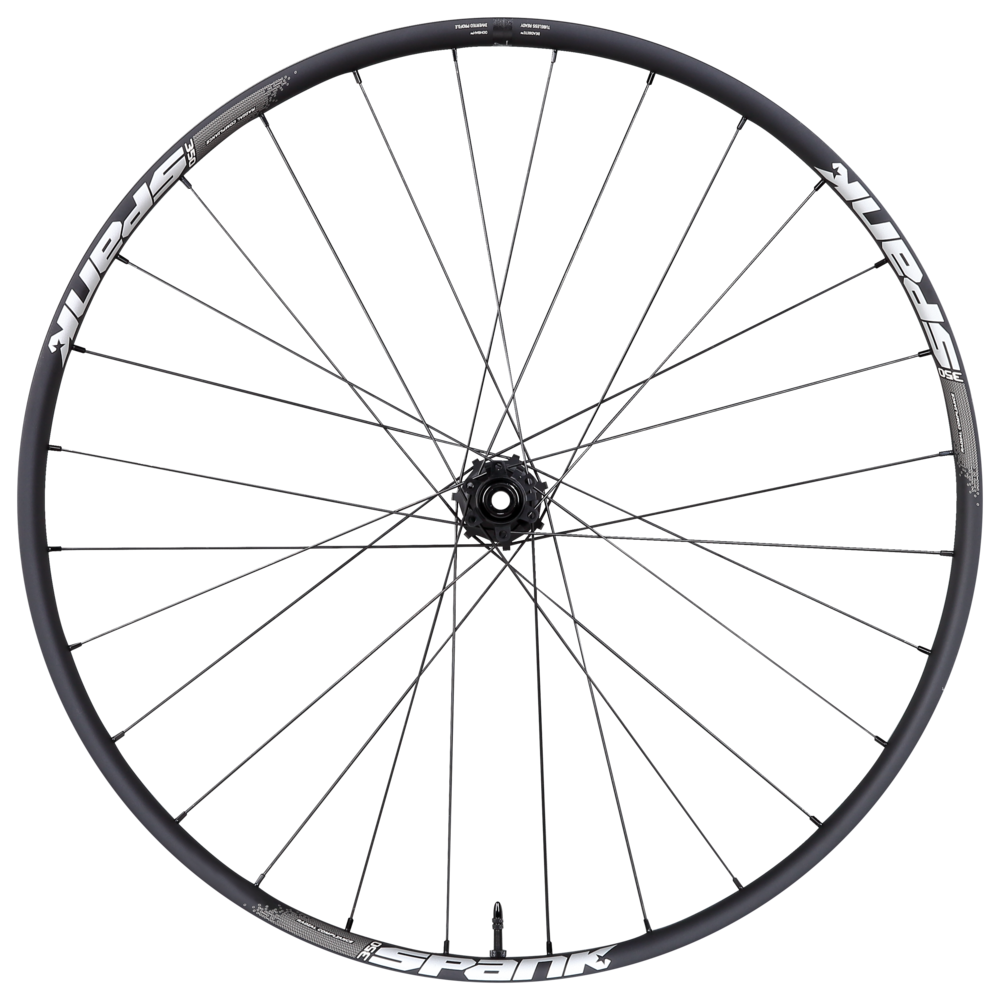

Spank Hex 350 Boost MTB Wheel – Rear 27.5in 32H 148mm
SKU code: LNK-SPA-C090622RE0J220A
$489.95
The Spank Hex 350 is an alloy trail wheel built around Spank's Hex Drive hub, with a 30.5mm-wide rim that suits a broad range of trail tyres. Choose the front or rear wheel in 27.5in or 29in to suit your bike.
Highlights
- 30.5mm internal rim width suits 2.0in–2.6in tyres
- Spank Hex Drive hub with a 102-tooth, 6-pawl ratchet for 3.5° of engagement
- Front wheel: 15x110mm Boost axle, 6-bolt rotor mount
- Rear wheel: 12x148mm Boost axle, 6-bolt rotor mount, freehub body sold separately
- J-Hook triple-butted spokes, brass external nipples, 3-cross lacing
- Tubeless taped and valved
Choose your freehub
The rear wheel ships without a freehub body fitted. Spank offers Shimano HG (Hyperglide), SRAM XD and Shimano Microspline freehub bodies to match your drivetrain – let us know which one you need when you order.
Compatibility & fit
The front wheel fits 15x110mm Boost forks; the rear fits 12x148mm Boost frames. Both use 32-hole Hex J-Type hubs and take 2.0in–2.6in tyres. Our workshop can fit your freehub body, cassette and tyres, or true and service the wheel down the track.
Sizes & options
| Wheel |
|---|
| Front 27.5in 32H 110mm |
| Front 29in 32H 110mm |
| Rear 27.5in 32H 148mm (without freehub body) |
| Rear 29in 32H 148mm (without freehub body) |
Spank's standard warranty on the Hex 350 Boost wheel covers manufacturer defects in materials and workmanship for two years from the original purchase date through an authorised Spank seller; it doesn't cover wear and tear, accidents, abuse or unauthorised repairs. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, Spank's Australian distributor.
- 30.5mm internal rim width
- Spank Hex Drive hub, 102T/6-pawl, 3.5° engagement
- Front: 15x110mm Boost, 6-bolt
- Rear: 12x148mm Boost, 6-bolt, freehub body sold separately
- J-Hook triple-butted spokes, 3-cross lacing
- Tubeless taped and valved
| Rim inner width | 30.5mm |
|---|---|
| Rim outer width | 35mm |
| Profile height | 17mm |
| Tyre compatibility | 2.0in–2.6in |
| Hub | Spank Hex Drive, 102T, 6-pawl, 3.5° engagement |
| Front axle | 15x110mm Boost |
| Rear axle | 12x148mm Boost |
| Rotor mount | 6-bolt |
| Hole count | 32H |
| Spokes | J-Hook, triple-butted 2.2/1.8/2.0mm, 3-cross |
| Front wheel weight (27.5in) | 906g |
| Front wheel weight (29in) | 950g |
| Freehub | Sold separately – Shimano HG, SRAM XD or Shimano Microspline |
| SKU | LNK-P-SPA-350-BST-WHL |
| Brand | Spank |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
