Sold as a single rear wheel. This listing is one wheel, not a pair — the matching front wheel is listed separately.

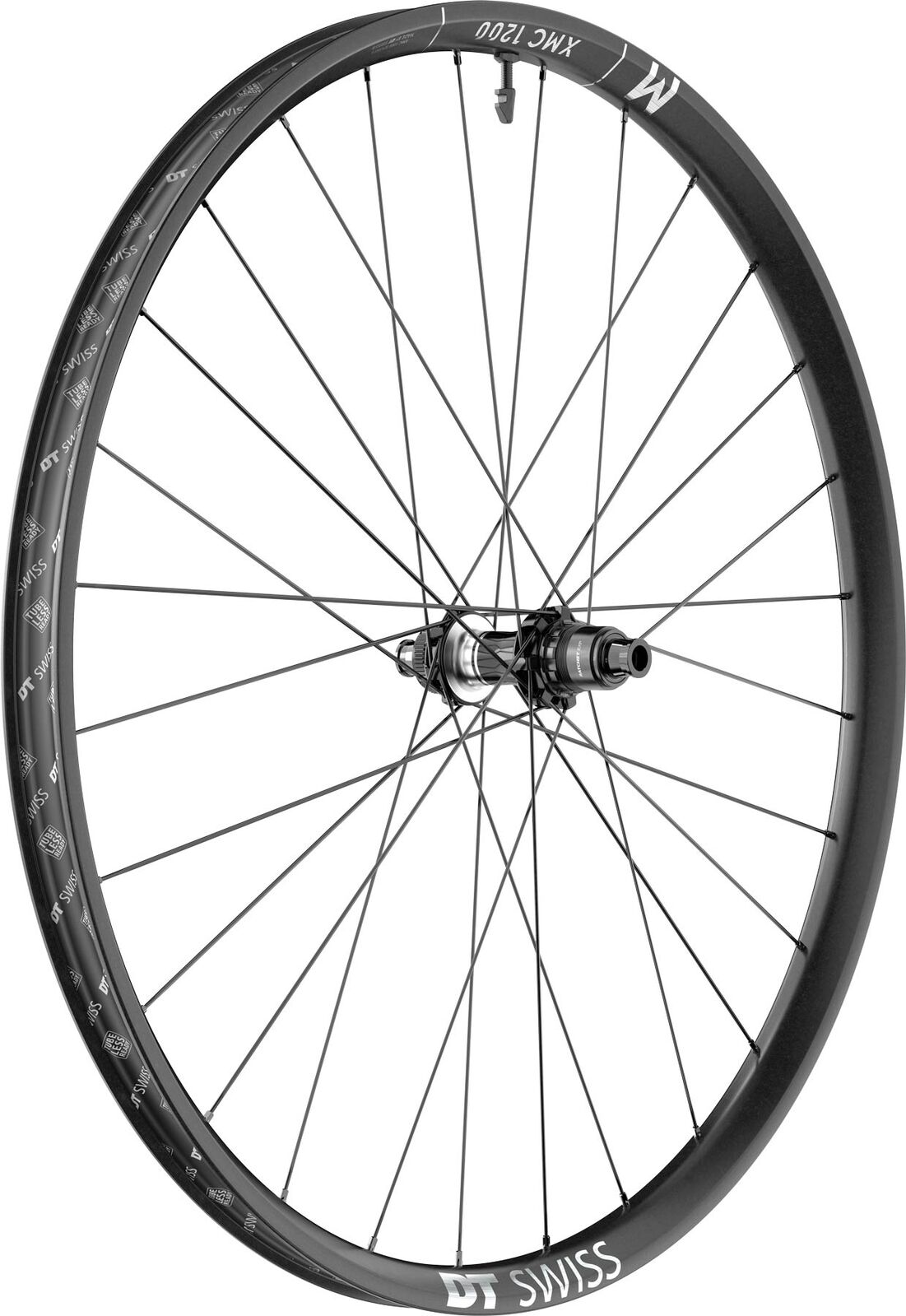

The DT Swiss XMC 1200 is the brand’s flagship carbon trail and all-mountain MTB wheel line. This is the rear wheel — 30 mm inner rim width, in 29" with a 12×148 mm Boost axle, Centre Lock rotor mount.

Fit

  • Rim diameter: 29"
  • Brake type: Disc
  • Rotor mount: Centre Lock
  • Axle: 12×148 mm Boost
  • Freehub body: Not stated by supplier — check with us before ordering

Not sure it matches your bike? Send us your frame and drivetrain details and we will confirm before you order.

DT Swiss wheels are covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. Carbon rims may also be eligible for DT Swiss's Fair Share crash-replacement programme — ask us for the current terms. For any warranty claim or support, return the wheel to Tune Cycles and we will handle it with DT Swiss's Australian distributor.

  • One rear wheel — sold individually, not as a pair; the matching front wheel is a separate listing
  • DT Swiss XMC 1200: flagship carbon trail and all-mountain MTB wheel line
  • 29", 12×148 mm Boost, Centre Lock
  • 30 mm inner rim width
  • Freehub body not stated by the supplier — check with us before ordering
  • Genuine DT Swiss, supplied through the Australian distributor
Specification Details
Sold asSingle rear wheel (one wheel)
Sold asSingle rear wheel (one wheel)
Model XMC 1200 29 15148 30wd CL MY24 Rear
Weight 835 g
Material Carbon
Rim Diameter 29" / 700C
Rim Height 22 mm
Inner Width 30 mm
Outer Width 36.8 mm
Hub Type 180
Axle System 12 mm Thru Axle
Built-in Dimension 148 mm Boost
Brake Interface Disc Center Lock
Cassette Interface SRAM XD
Freehub Body SRAM XD MTB (ASRAM)
Freehub System Ratchet EXP 54
Spokes DT revolite® t-head
Spoke Pattern Three-cross (1:1)
Nipples DT ProLock Squorx ProHead alu
Tire Interface Hookless tubeless TSS
Valve Hole Presta
ASTM Classification 4
Approved for E-bikes Yes (max. 32 km/h or max. 250W)
SKU APO-DTW207B-REAR-24
Barcode # 7.61E+12
Brand DT Swiss
