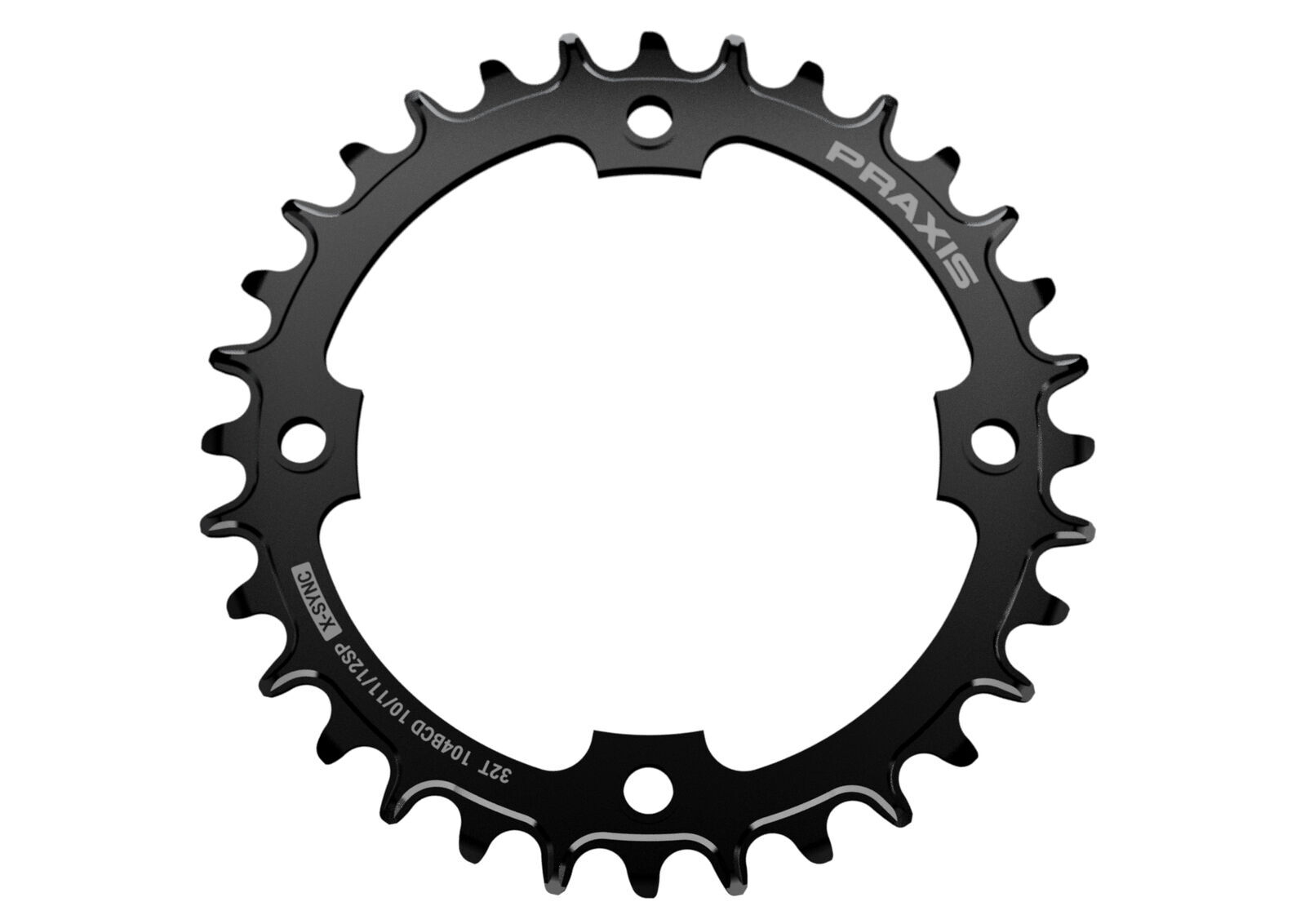

Praxis MTN E-Ring 104BCD Steel eMTB Narrow/Wide Chainring – 32T, Black
SKU code: DSG-PX32-NW7001
In Stock
Built for eMTB torque, the Praxis MTN E-Ring trades alloy's light weight for steel's wear life, so you swap rings less often. It suits 4-bolt 104BCD eMTB spiders, and its threaded bolt holes take M8 bolts directly for extra motor clearance.
Highlights
- Cold-forged, case-hardened high-grade steel for long wear under motor load
- Narrow/wide teeth for 1x chain retention
- Female threaded: M8 chainring bolts thread straight into the ring for better motor clearance
- 32T, 34T or 36T
- Black oxide, or Praxis's new hard silver PVD coating
Why steel on an eMTB
Motor power and torque wear chainrings faster than legs alone. Praxis makes this ring from case-hardened steel specifically for eMTBs and recommends it over its alloy 104BCD rings on eBikes. It isn't recommended for non-assisted bikes, where the lighter alloy ring makes more sense.
Setup notes
The ring mounts with male M8 chainring bolts, which aren't included. Fit it with the Praxis logo facing outward. Use a clutch rear derailleur, and an upper chain guide is recommended in rough terrain. Praxis reference weights: 32T 109 g, 34T 132 g, 36T 150 g.
Fitting
Fitting is a separate workshop service and isn't included in the price. The Tune workshop can measure your spider to confirm it's 104BCD, fit the ring with the right M8 bolts, and check chain length and chainline.
Compatibility & fit
- 4-bolt 104BCD eMTB spiders. Measure first: it won't fit the smaller 94BCD pattern.
- 10-12-speed KMC, Shimano and SRAM chains, regular, Flattop or T-Type.
- Shimano mechanical or Di2; SRAM mechanical or wireless.
- Needs male M8 chainring bolts (sold separately).
- Not recommended for non-assisted bikes.
Options
| Option | Finish | Praxis reference weight |
|---|---|---|
| 32T Black | Black oxide | 109 g |
| 34T Black | Black oxide | 132 g |
| 36T Black | Black oxide | 150 g |
| 32T Silver | Hard silver PVD coating | 109 g |
| 34T Silver | Hard silver PVD coating | 132 g |
| 36T Silver | Hard silver PVD coating | 150 g |
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner. Normal wear and tear isn't covered, and for chainrings Praxis lists tooth wear and the anodised or coated finish wearing off as wear. Damage from crashes, impact, incorrect installation (including the wrong tools) or modification is also excluded.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- Cold-forged, case-hardened steel for eMTB wear life
- Narrow/wide 1x tooth profile
- 4-bolt 104BCD, female threaded for M8 bolts
- Extra motor clearance from the threaded mounting
- 32T, 34T or 36T; black oxide or silver PVD
- 10-12-speed chain compatible
| Product | 1x steel eMTB chainring |
|---|---|
| BCD | 104 mm, 4-bolt |
| Mounting | Female threaded for male M8 chainring bolts (not included) |
| Tooth profile | Narrow/wide |
| Material | Cold-forged, case-hardened high-grade steel |
| Finish | Black oxide or hard silver PVD coating |
| Chain | 10-12-speed KMC, Shimano, SRAM (regular, Flattop, T-Type) |
| Rear derailleur | Clutch type |
| Weight (Praxis reference) | 32T 109 g; 34T 132 g; 36T 150 g |
| Options | 32T, 34T, 36T in Black or Silver |
| SKU | DSG-PX-NWSTEEL |
| Brand | Praxis |
