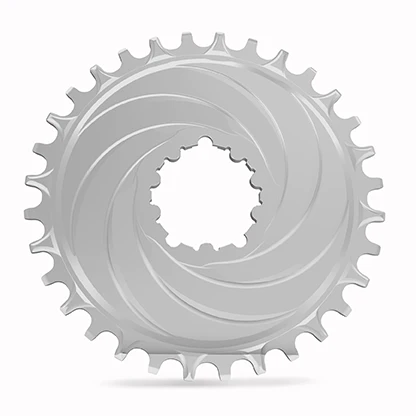

The Spacely Sprocket is 5DEV's no-frills direct mount ring: 32T, 3 mm offset, machined from 6061 aluminium and left raw. It bolts to 5DEV's 3-bolt cranks and, 5DEV says, any SRAM 3-bolt system.

Highlights

  • 32T with a 3 mm offset
  • 3-bolt direct mount for 5DEV cranks and SRAM 3-bolt systems
  • 6061 aluminium, raw and untreated

Raw finish

The ring is left untreated. 5DEV suggests giving it a generous coat of polish before you fit it.

Fitting

Fitting is a separate workshop service and isn't included in the price. On most cranks a direct mount ring swap means taking the drive-side arm off. The Tune workshop can fit the ring with the right tools, torque the three bolts to 5DEV's 9 Nm spec and check your chainline and shifting.

Compatibility & fit

  • Mount: 3-bolt direct mount.
  • Cranks: 5DEV 3-bolt cranks (such as R-SPEC) and all SRAM 3-bolt systems, per 5DEV.
  • Offset: 3 mm.
  • Chain: 5DEV doesn't specify chain speed or tooth profile, so check with us for your drivetrain.

5DEV backs its products with a limited 5-year warranty from the date of manufacture, covering defects in materials and workmanship. If 5DEV finds a failure was caused by such a defect, it replaces the affected product with a comparable model. The warranty is void if a part from another manufacturer or retailer is used in place of the 5DEV component, so talk to us before replacing anything.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with 5DEV's Australian distributor.

  • 32T direct mount chainring
  • 3 mm offset
  • 6061 aluminium
  • Raw, untreated finish
  • For 5DEV cranks and SRAM 3-bolt systems
ProductDirect mount chainring
Size32T
Offset3 mm
Mount3-bolt direct mount
Material6061 aluminium
FinishRaw, untreated
Fits5DEV 3-bolt cranks; SRAM 3-bolt systems
Bolt torque9 Nm (5DEV 3-bolt chainring spec)
SKU DSG-5DCR-6061-32T-3W
Brand 5DEV
