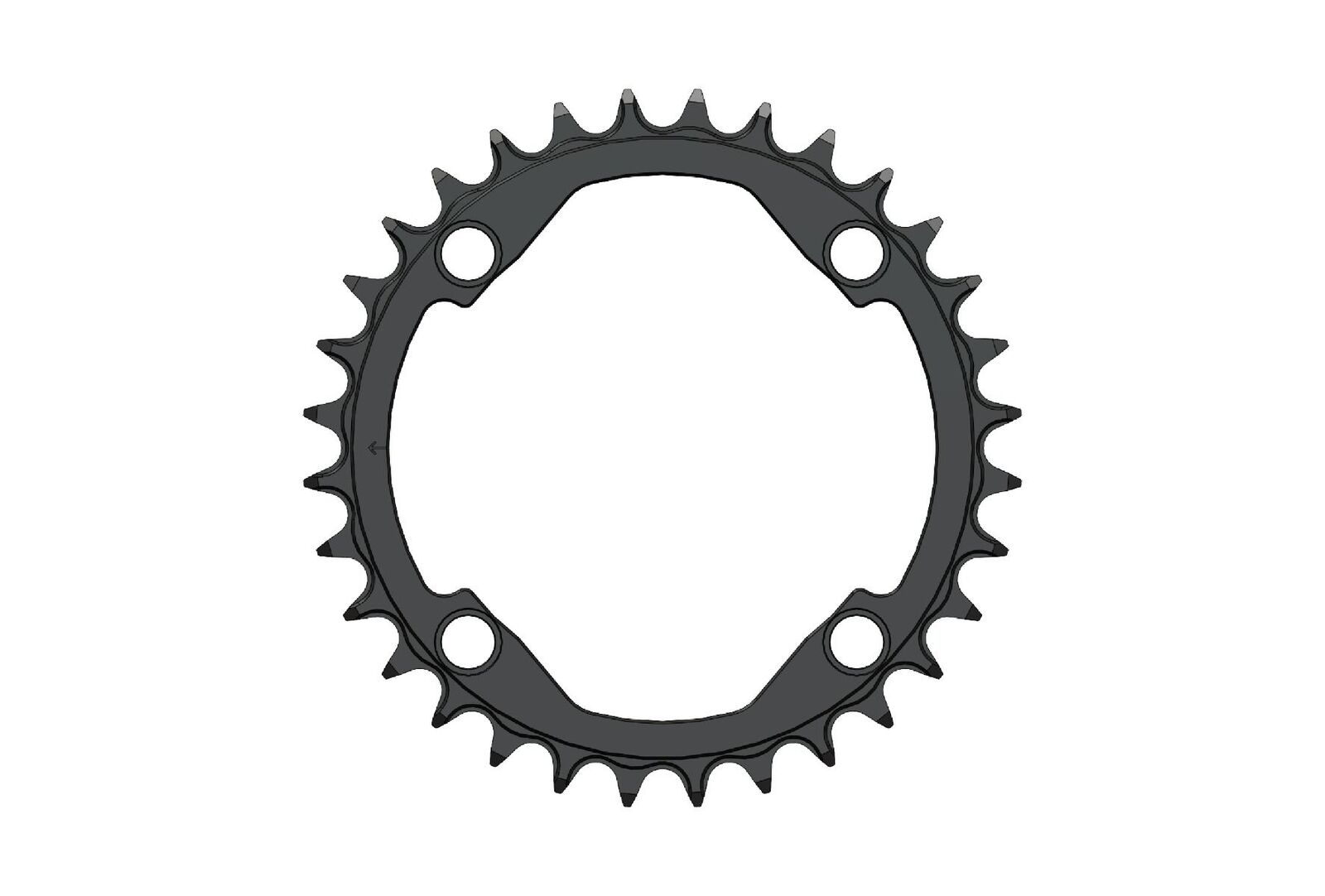

Running SRAM T-Type chain on a 104 BCD crank? PILO machines this narrow wide ring from 7075 aluminium plate to suit exactly that pairing, with tooth geometry built for durability and quiet running.

Highlights

  • Made for 104 BCD cranksets and SRAM T-Type chain
  • 0mm offset; chainline is set by your crank
  • Milled from 7075-T7351 aluminium plate made by Constellium, Switzerland
  • Narrow wide tooth profile engineered on DIN 8196 (ISO) geometry
  • Hard black anodised finish
  • Listed by PILO as e-bike proven

Machined from solid plate

PILO mills each ring from 7075-T7351 aluminium plate. PILO says this subtractive machining keeps the grain structure of the metal intact for strength and endurance. Production runs in PILO's ISO 9001:2015 certified facility.

Options

TeethPILO partOuter diameter (PILO)Weight (PILO)
32TC94136mm43 g
34TC92145mm53 g
36TC95153mm53 g
38TC96161mm70 g

Compatibility & fit

PILO lists this ring for 104 BCD cranksets with a SRAM T-Type chain. The ring has 0mm offset, so chainline is set by your crank. Chainring bolts are not listed as included. Our workshop can fit the ring and check your drivetrain install.

Covered against defects in materials and workmanship. Normal tooth wear, crash damage and incorrect installation are not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, PILO's Australian distributor.
  • 104 BCD mount
  • For SRAM T-Type chain
  • 7075-T7351 aluminium, CNC-machined
  • Narrow wide teeth, 0mm offset
  • 32T, 34T, 36T or 38T
  • Hard black anodised
BrandPILO
TypeNarrow wide chainring
Crank mount104 BCD
ChainSRAM T-Type
Teeth32T / 34T / 36T / 38T
Offset0mm
Material7075-T7351 aluminium
FinishHard black anodised
E-bikeListed by PILO as e-bike proven
SKU KWT-P-PILO-104-T-TYPE
Brand PILO
Shipping Weight 0.3500kg
Shipping Width 0.120m
Shipping Height 0.040m
Shipping Length 0.150m
