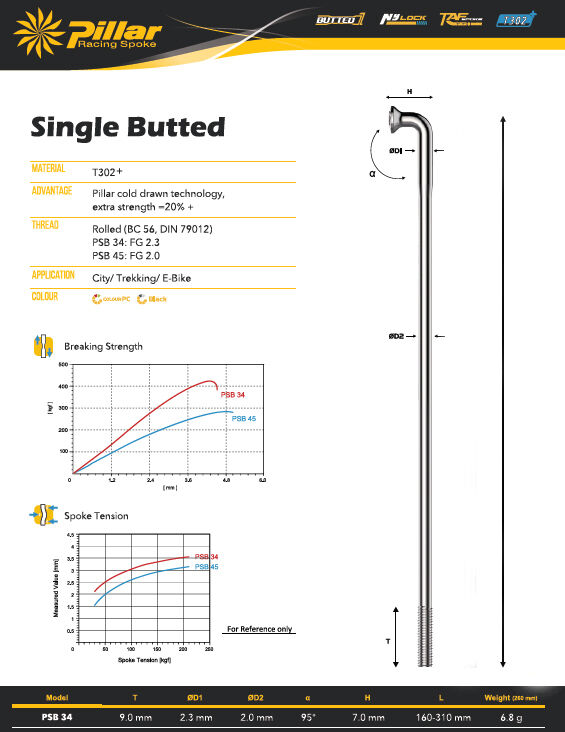

Pillar's PSB34 'Alpen 1' is a single-butted spoke built for heavier-duty wheels - enduro, downhill, touring and eBikes. It's cold-forged with extra material at the hub-flange arc, which reinforces the spot that usually fails first on a hard-ridden spoke, and it's made from Sandvik T302 stainless steel.

Spec

13G/14G single-butted (2.34mm/2.0mm), rolled thread to DIN 79012, 95° arc angle at the spoke head, 9.0mm thread length. Sold without nipples - order 2.0mm (14G) nipples separately if you need them.

Compatibility & fit

Spoke length has to match your exact hub, rim and lacing pattern - the wrong length can't be fixed once a spoke's cut. Tune's wheel-building service calculates the length for your build and can supply and build with it.

Options

Length170mm, 172mm, 174mm, 176mm, 178mm, 180mm, 182mm, 184mm, 186mm, 188mm, 190mm, 192mm, 194mm, 196mm, 198mm, 200mm, 202mm, 204mm, 206mm, 208mm, 210mm, 212mm, 214mm, 216mm, 218mm, 220mm, 222mm, 224mm, 226mm, 228mm, 230mm, 232mm, 234mm, 236mm, 238mm, 240mm, 242mm, 244mm, 246mm, 248mm, 250mm, 252mm, 254mm, 256mm, 258mm, 260mm, 262mm, 264mm, 266mm, 268mm, 270mm, 272mm, 274mm, 276mm, 278mm, 280mm, 282mm, 284mm, 286mm, 288mm, 290mm, 292mm, 294mm, 296mm, 298mm, 300mm, 302mm, 304mm, 306mm, 308mm, 310mm
Pack size18 pack
Pillar doesn't publish a specific warranty period for this product, so we can't state one here. For warranty support, return the product to Tune Cycles and we'll manage the claim with Pillar's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Single-butted 13G/14G (2.34mm/2.0mm)
  • Cold-forged, reinforced hub-flange arc
  • Sandvik T302 stainless steel
  • For enduro, DH, touring and eBike builds
BrandPillar
ModelPSB34 Alpen 1
ProfileSingle-butted, 13G/14G (2.34mm/2.0mm)
HeadJ-Bend
MaterialSandvik T302 stainless steel
ThreadRolled, DIN 79012, 9.0mm length
ColourSilver
NippleNot included
