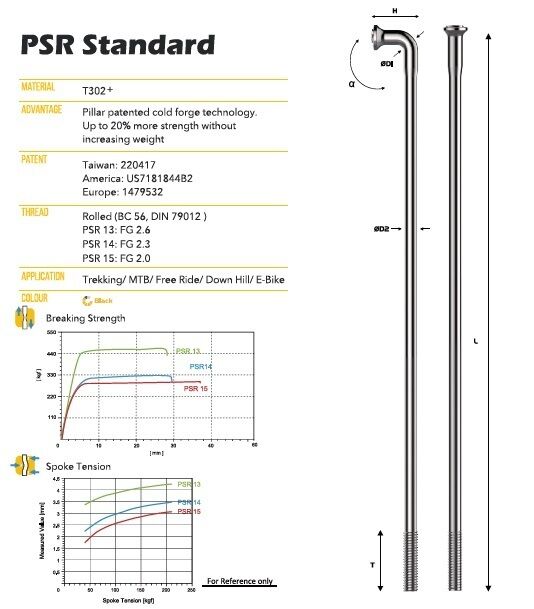

Pillar's PSR is a double-butted spoke: full diameter at the elbow and thread for strength, thinner through the middle for weight. This one is 13G, 2.5/2.3mm, J-Bend, sold without nipples.

Compatibility & fit

Spoke length has to match your exact hub, rim and lacing pattern - the wrong length can't be fixed once a spoke's cut. Tune's wheel-building service calculates the length for your build and can supply and build with it.

Options

Length174mm, 176mm, 178mm, 180mm, 182mm, 184mm, 186mm, 188mm, 190mm, 192mm, 194mm, 196mm, 198mm, 200mm, 202mm, 204mm, 206mm, 208mm, 210mm, 212mm, 214mm, 216mm, 218mm, 220mm, 222mm, 224mm, 226mm, 228mm, 230mm, 232mm, 234mm, 236mm, 238mm, 240mm, 242mm, 244mm, 246mm, 248mm, 250mm, 252mm, 254mm, 256mm, 258mm, 260mm, 262mm, 264mm, 266mm, 268mm, 270mm, 272mm, 274mm, 276mm, 278mm, 280mm, 282mm, 284mm, 286mm, 288mm, 290mm, 292mm, 294mm, 296mm, 298mm, 300mm, 302mm, 304mm, 306mm, 308mm, 310mm
Pack size18 pack
Pillar doesn't publish a specific warranty period for this product, so we can't state one here. For warranty support, return the product to Tune Cycles and we'll manage the claim with Pillar's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Double-butted PSR profile, 13G (2.5mm/2.3mm)
  • J-Bend head, silver finish
  • Sold without nipples
BrandPillar
ProfilePSR double-butted
HeadJ-Bend
Gauge2.5mm/2.3mm (13G)
ColourSilver
NippleNot included
SKU DTW-PRG-SJPSR13S-PAR
Brand Pillar
Shipping Weight 0.0100kg
