Pillar PTB380 J-Bend Triple-Butted Spokes – Black – 290mm, Box of 100
SKU code: DTW-PRG-SJTB380K290Q100

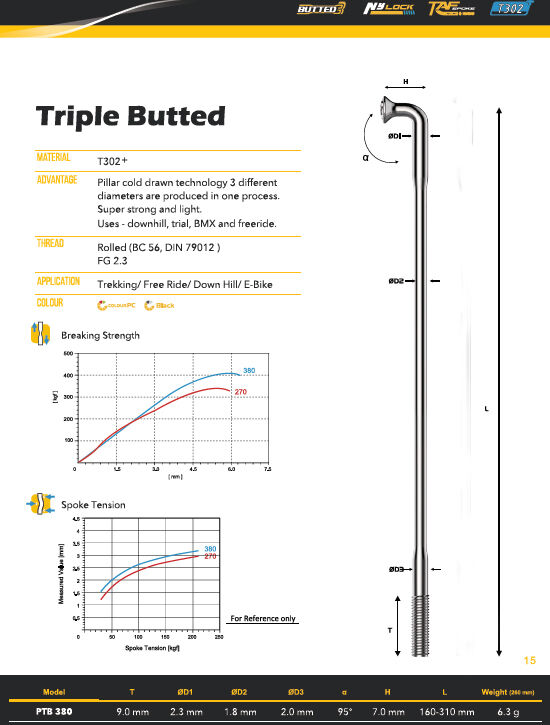

Pillar’s PTB380 is a genuine triple-butted J-bend spoke — three distinct diameters along its length, 2.3mm at the elbow, 1.8mm through the middle and 2.0mm at the thread, for a lighter spoke that still carries full gauge at the elbow and a near-full gauge at the thread.
Highlights
- Triple-butted profile: 2.3mm elbow, 1.8mm middle, 2.0mm thread
- J-bend head for standard hub flanges
- Stainless steel, black finish
- 95° elbow bend, 9.0mm thread length
- Supplied without nipples
- Packed as bags of 18 or boxes of 100
Why triple-butted
A third diameter lets Pillar tune the elbow and the thread separately instead of matching them, as a double-butted spoke does — full 2.3mm gauge where the elbow takes the highest load, a lighter 1.8mm through the low-stress middle, and 2.0mm at the thread.
Compatibility & fit
Spoke length is specific to the hub, rim and lacing pattern of the wheel it’s built into — there’s no generic right answer. The Tune Cycles workshop calculates the correct length for your build and laces the wheel in-house; because these spokes are supplied without nipples, pair them with nipples sized to this spoke’s gauge. A spoke cut or ordered to the wrong length can’t be corrected afterwards.
Options
| Pack size | Lengths available |
|---|---|
| Pack of 18 | 254mm, 256mm, 258mm, 260mm, 262mm, 264mm, 266mm, 268mm, 270mm, 272mm, 274mm, 276mm, 278mm, 280mm, 282mm, 284mm, 286mm, 288mm, 290mm, 292mm, 294mm, 296mm, 298mm |
| Box of 100 | 274mm, 290mm |
Pillar backs its spokes, nipples and tools against manufacturing defects in materials and workmanship; it doesn’t cover damage from an incorrect spoke length, over-tensioning, crash damage or normal wear. For warranty support, return the product to Tune Cycles and we’ll manage the claim with Pillar’s Australian distributor.
This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
- Triple-butted profile: 2.3mm elbow, 1.8mm middle, 2.0mm thread
- J-bend head for standard hub flanges
- Stainless steel, black finish
- 95° elbow bend, 9.0mm thread length
- Supplied without nipples
- Packed as bags of 18 or boxes of 100
| Brand | Pillar |
|---|---|
| Model | PTB380 |
| Profile | Triple-Butted |
| Head type | J-Bend |
| Diameter profile | 2.3mm at the elbow, 1.8mm through the middle, 2.0mm at the thread |
| Gauge | 13G/15G/14G |
| Elbow angle | 95° |
| Material | Stainless steel |
| Colour | Black |
| Nipples included | No |
| Approx. weight | 6.3g per 260mm spoke (varies with length) |
| Available lengths | 254mm – 298mm |
| Pack sizes | Pack of 18, Box of 100 |
| SKU | DTW-PRG-SJTB380K-PAR |
