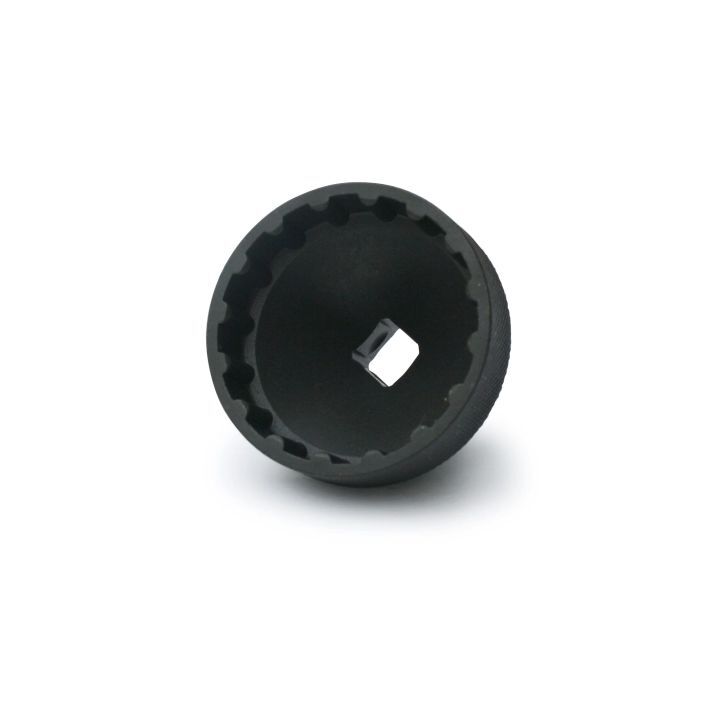

A socket tool sized for 16-notch x 44mm external bearing bottom bracket cups, updated to also fit 16-notch disc brake rotor lockrings and Shimano crank-puller adapters.

Highlights

  • Fits 16-notch x 44mm external bearing bottom bracket cups
  • Also fits 16-notch x 44mm disc brake rotor lockrings
  • Fits Shimano TL-FC24 and TL-FC25 crank adapters
  • Square 3/8-inch drive; also works with a 24mm socket/wrench or in a bench vice

One socket, several jobs

Use it with Pedro's snap-channel Pro Socket Handle, any 24mm socket/wrench, a square 3/8-inch drive, or held in a bench vice.

Compatibility & fit

Fits 16-notch x 44mm external bearing BB cups including Shimano BB80, BB5700, XT BB70 and BB51, plus external threaded cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-Type, Surly and Wheels Manufacturing. Also fits 16-external-notch disc rotor lockrings and Shimano TL-FC24/TL-FC25 adapters.

Pedro's Lifetime Warranty covers this tool against breakage, malfunction or defect for as long as you own it. For warranty support, return the product to Tune Cycles and we'll manage the claim with Pedro's Australian distributor.
  • Fits 16-notch x 44mm external bearing BB cups
  • Also fits 16-notch rotor lockrings
  • Fits Shimano TL-FC24/TL-FC25 adapters
  • Square 3/8-inch drive
  • Works with Pro Socket Handle, 24mm socket or bench vice
Notch count16
Diameter44mm
DriveSquare 3/8-inch
FitsShimano BB80/BB5700/XT BB70/BB51, Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-Type, Surly, Wheels Manufacturing (44mm 16-notch cups); 16-notch rotor lockrings; Shimano TL-FC24/TL-FC25
SKU SCV-PDTL6460261
Brand Pedro's
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.030m
Shipping Length 0.220m
