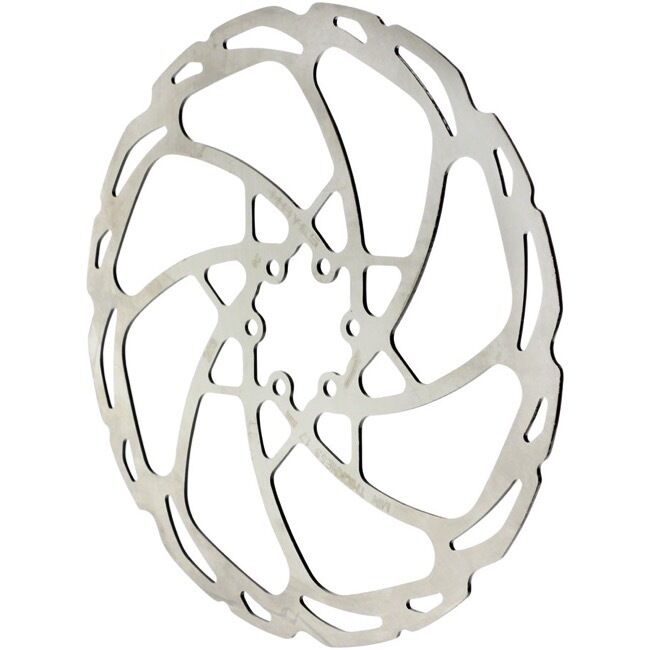

Developed alongside the Dominion brake, the D-Series rotor is tuned to work with Hayes' own pad compounds for a fast, consistent burn-in and less brake noise under hard use.

Highlights

  • 6-bolt mount, 1.95mm rotor body for heat dissipation
  • MRC (Modal Resonance Cancellation) shapes cut into the rotor to reduce noise and vibration
  • Tuned for Hayes Sintered T100 and Semi-Metallic T106 pad compounds
  • Mounting bolts included
  • 160 / 180 / 203 / 220mm sizes

Compatibility & fit

6-bolt mount (not Centre Lock). Fits any 6-bolt hub with a caliper mount (post mount or IS mount bracket) sized to suit; developed for Hayes Dominion brakes but will run on any compatible 6-bolt hydraulic disc brake. Match the rotor size to your caliper's native mount or the bracket you're running.

Options

SizeRotor diameter
160mm160mm (6in)
180mm180mm (7in)
203mm203mm (8in)
220mm220mm (9in)
Hayes Bicycle Group's two-year warranty covers defects in materials and workmanship on this part. Normal wear and tear, crash damage and labour aren't included. For warranty support, return the product to Tune Cycles and we'll manage the claim with Hayes' Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 6-bolt mount (not Centre Lock)
  • 1.95mm rotor body for heat management
  • MRC noise-cancelling shapes
  • Mounting bolts included
  • 160/180/203/220mm sizes
BrandHayes
Mount6-bolt
Thickness1.95mm
HardwareMounting bolts included
Sizesee Options table
SKU DTW-HBG-98-36153-K00-PAR
Brand Hayes
