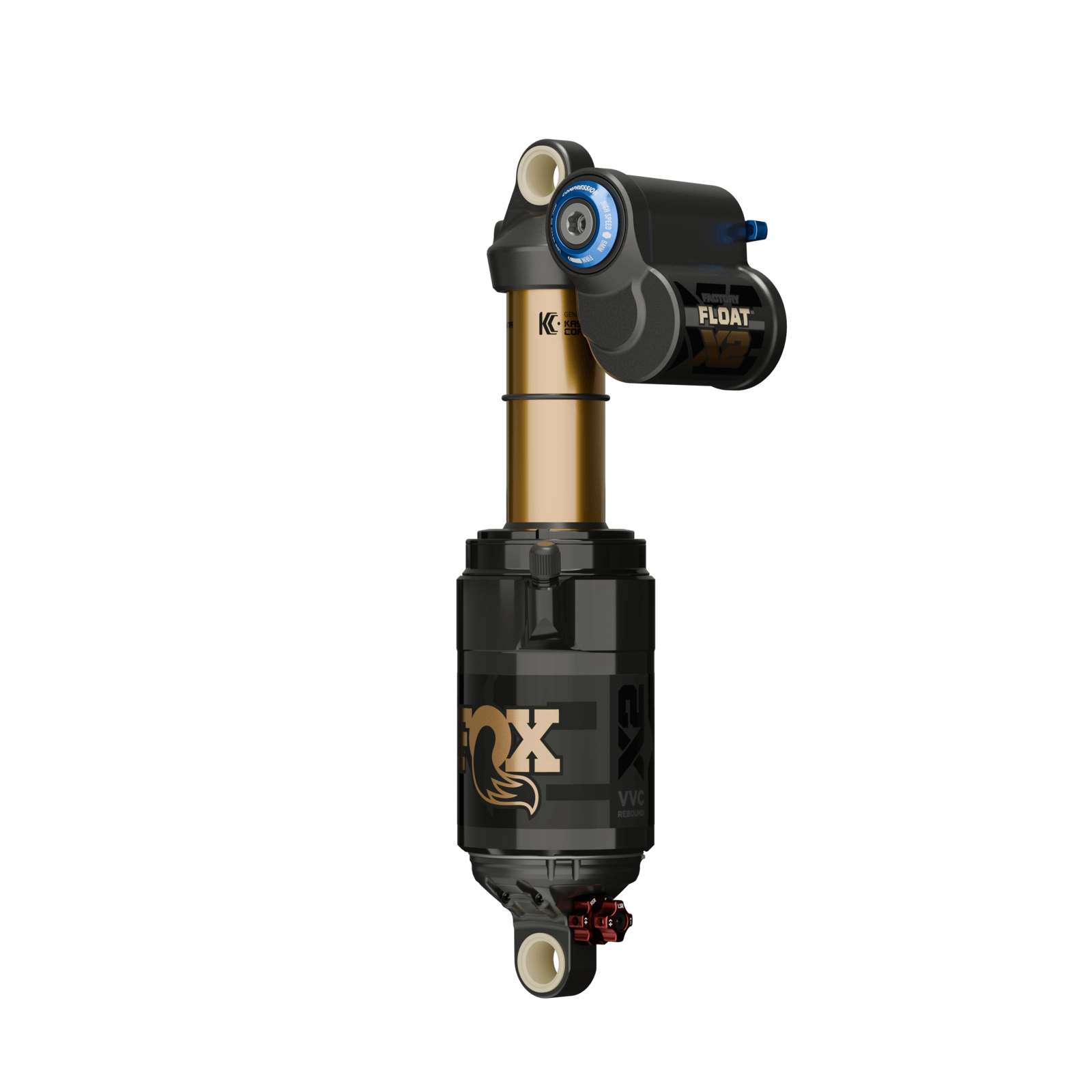

New chassis, new damping, same name. For 2026 the Float X2 moves to a monotube design for more durability while keeping its four-way adjustability, making it Fox's definitive gravity air shock for downhill and enduro racing.

Highlights

• 4-way adjust: high-speed compression (8 clicks, VVC), low-speed compression (16), high-speed rebound (8, VVC), low-speed rebound (16)
• Monotube body with pressure balancing
• ½in damper shaft for strength and durability
• Independent 2-position firm mode lever on most sizes
• Genuine Kashima Coat
• Starting weight 708 g (Float X2, 210 x 55mm, 2-position)

World's first 4-way monotube

High- and low-speed compression and rebound now live in a simpler, more durable monotube body, with pressure balancing for extra sensitivity and support. An oversized air chamber and reduced-friction air seals give a more linear, planted ride, and a larger ½in damper shaft adds strength. Air volume tunes in 1cc steps for precise spring rate changes.

Lever or no lever

Most sizes come with Fox's independent 2-position firm mode lever for efficient climbing. The 250 x 75mm and 225 x 75mm trunnion downhill sizes skip the lever and keep the full four-way adjust. The reservoir sits transverse on most sizes to fit more frames; the 250 x 75mm uses a parallel reservoir.

Fitting and Fox service

Fitting isn't included: shock installation and setup is a separate workshop service. Tune Cycles is an authorised Fox service centre in Marrickville, Sydney, so we can fit your new shock, set it up for your weight and riding, and look after its servicing. Fox recommends a full service every 125 hours of riding.

Compatibility & fit

Match the eye-to-eye length and stroke your frame maker specifies, and check whether your frame takes a standard eye or a trunnion mount. Mounting hardware isn't included; it's sold separately and has to suit your frame's mounts.

Sizes & options

Pick your eye-to-eye length and stroke; trunnion sizes are marked. The damper configuration is set by size.
