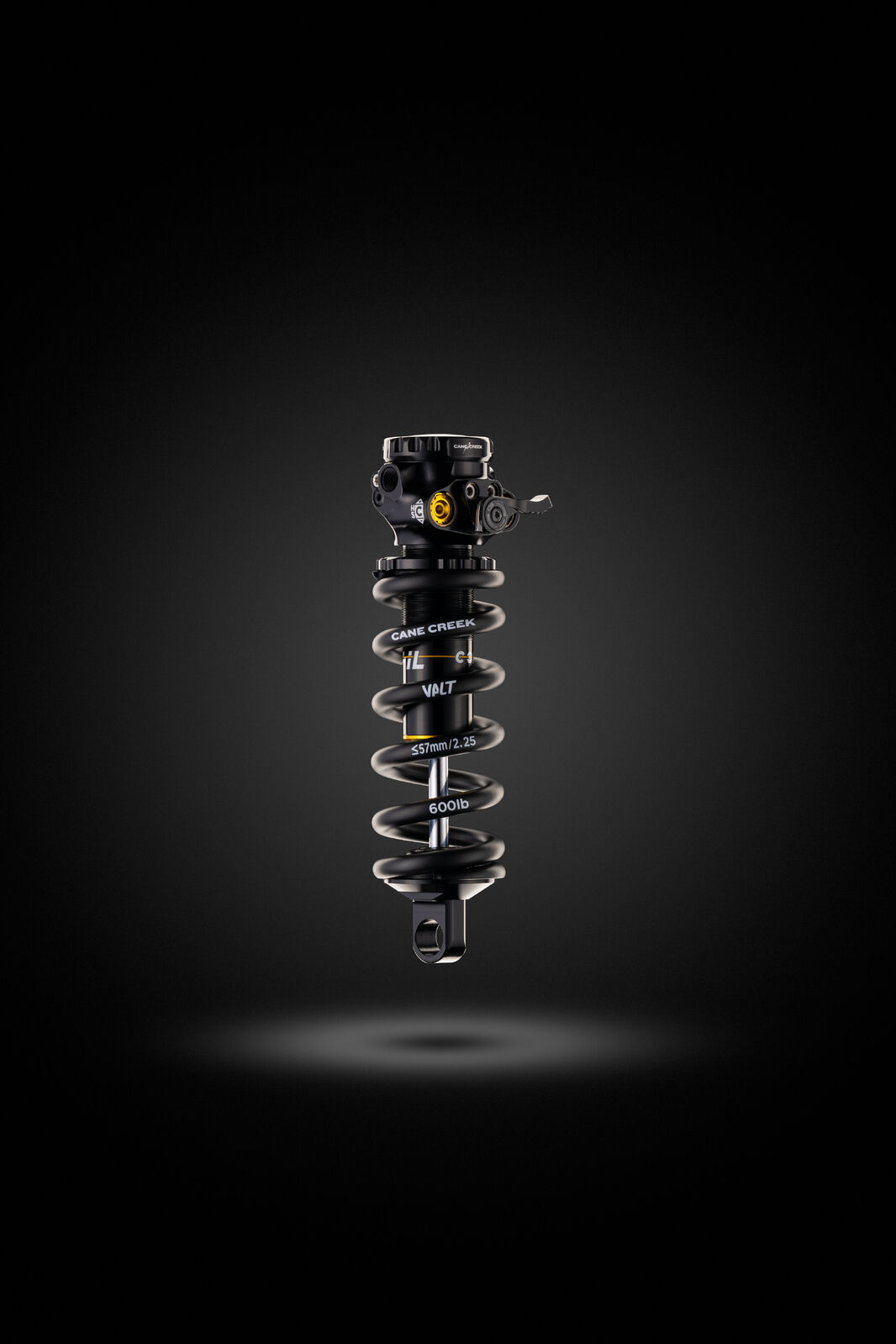

The second-generation Coil IL brings Cane Creek's full 4-way DB Twin Tube damping to a coil shock, in a narrower, lighter body than the first generation. It pairs with Cane Creek's linear or progressive-rate VALT springs, sold separately.

Highlights

  • DB Twin Tube damping: independent high- and low-speed compression and rebound
  • Climb Switch with an integrated tool, built into the lever
  • Works with linear or progressive-rate VALT springs (progressive ramps up from 50% into the stroke)
  • Hand-assembled and dyno-tested in Fletcher, NC, weight approximately 280g (210mm, without spring, varies by size)
  • Trunnion or standard-eyelet mount, depending on length

DB Twin Tube damping

Oil circulates continuously through externally adjustable valving instead of the main piston, giving independent high- and low-speed compression and rebound control without internal valving changes.

Compatibility & fit

This shock is sold without a spring — fit it with a Cane Creek VALT spring sized to your weight and riding style, and with mounting hardware to suit your frame's eyelet width (both sold separately). Cane Creek does not recommend the Coil IL for "clevis"-style suspension linkages, and it is not compatible with Specialized Stumpjumper or Turbo Levo frames. 165mm and 185mm eye-to-eye lengths use a trunnion mount; 190mm and 210mm use a standard eyelet. Match eye-to-eye length, stroke and mount type exactly to your frame's suspension design. The Tune workshop can advise on spring rate and fit the shock.

Options

Eye-to-eyeStrokeMount
165mm40mm, 42.5mm or 45mmTrunnion
185mm50mm, 52.5mm or 55mmTrunnion
190mm40mm, 42.5mm or 45mmStandard eyelet
210mm50mm, 52.5mm or 55mmStandard eyelet
Cane Creek's IL-series shocks (Air IL and Coil IL) carry a 1-year warranty to the original owner against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • DB Twin Tube 4-way independent damping
  • Climb Switch with integrated tool
  • Linear or progressive-rate VALT spring compatible
  • Hand-assembled in Fletcher, NC, approx. 280g without spring
  • Trunnion or standard-eyelet mount by length
  • Sold without spring or mounting hardware
DampingDB Twin Tube, independent HSC/LSC/HSR/LSR, Climb Switch
WeightApprox. 280g (210mm, without spring, varies by size)
Spring compatibilityCane Creek linear or progressive-rate VALT springs (sold separately); not compatible with clevis-style linkages, Specialized Stumpjumper or Turbo Levo
HardwareSold separately, to suit frame eyelet width
ManufacturingHand-assembled and dyno-tested, Fletcher, NC
Eye-to-eye / stroke / mount (by option)165mm trunnion (40/42.5/45mm stroke); 185mm trunnion (50/52.5/55mm); 190mm standard eyelet (40/42.5/45mm); 210mm standard eyelet (50/52.5/55mm)
SKU DTW-CSG-SHDBCILG2-PAR
Brand Cane Creek
Shipping Weight 1.5000kg
