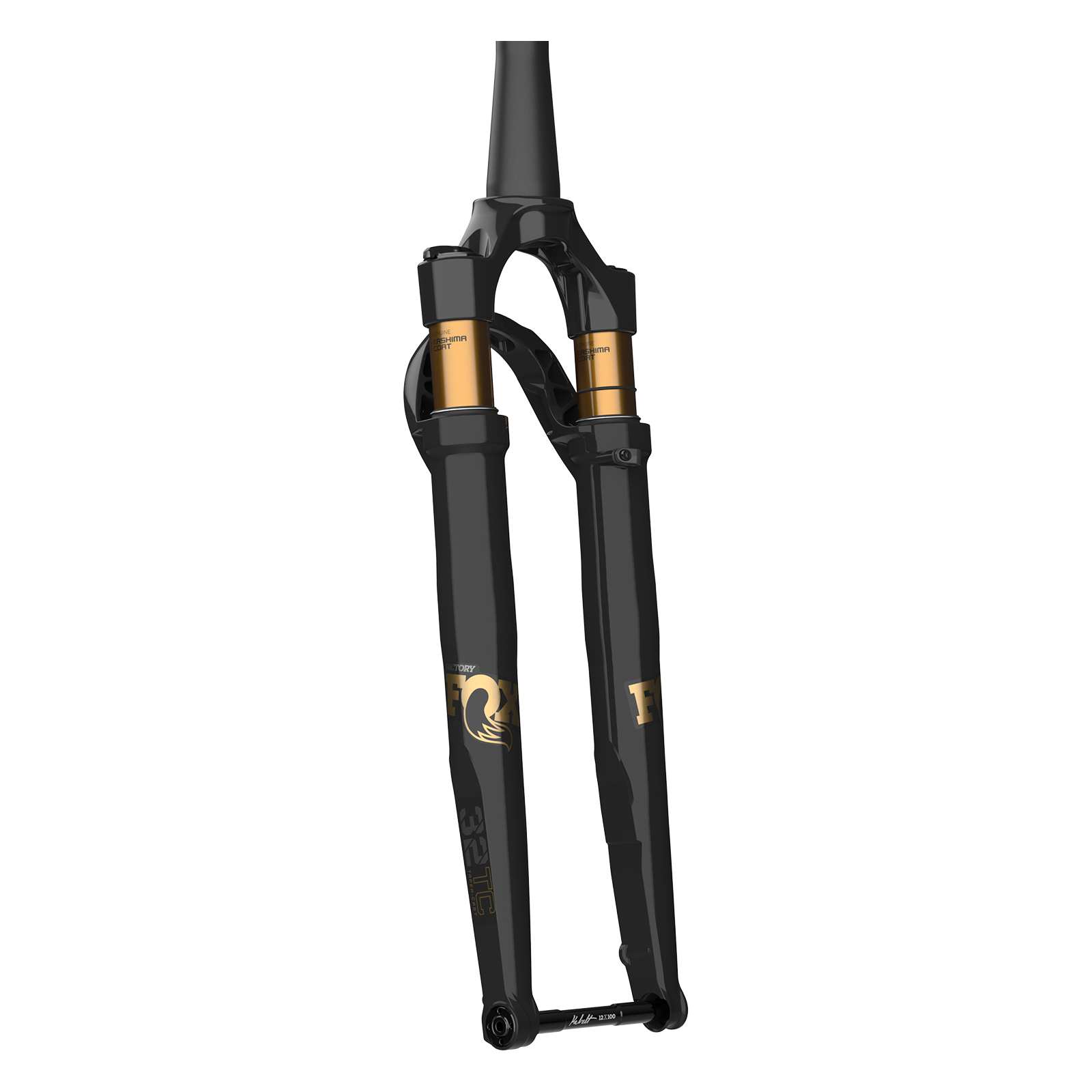

Fox 32 Taper-Cast Factory GRIP SL 700c Gravel Fork – 40mm, 50mm, Shiny Black
SKU code: RFX-FF91021268
Take the sting out of long, rough gravel days. The Fox 32 Taper-Cast Factory adds 40mm or 50mm of properly damped travel to a drop-bar bike, so you keep control on corrugations, washouts and loose descents for very little extra weight.
Highlights
- The lightest suspension fork Fox has built, at a claimed 1161g starting weight
- GRIP SL damper with three on-the-fly compression positions and 17 clicks of low-speed rebound
- 40mm or 50mm of travel, with 45mm or 50mm offset options
- Genuine Kashima Coat 32mm upper tubes and a FLOAT EVOL air spring
- 12 x 100mm Kabolt thru-axle, flat mount brakes and integrated fender mounts
Purpose-built for gravel
A sleek drop-crown profile, reverse arch and reshaped knobs give plenty of downtube clearance across frame sizes and styles, and the smaller frontal area helps aerodynamics. Tapered lowers integrate the lightweight 12 x 100mm Kabolt thru-axle, and the fork keeps integrated fender mounts and 160–180mm flat mount rotor compatibility.
GRIP SL damper
GRIP SL is Fox's light, short-travel damper. It gives a supple stroke with good pedal-to-bump efficiency and a smooth blow-off when you're riding locked out, with three on-the-fly compression positions and 17 clicks of low-speed rebound.
Fitting and Fox service
Fork installation is a separate workshop service and isn't included. As an authorised Fox service centre, our Marrickville workshop can fit the fork to your bike (steerer cut, crown race and star nut), set sag and damping for your weight and riding, and look after its scheduled Fox servicing from there.
Compatibility & fit
Built for 700c wheels with a 12 x 100mm thru-axle hub and a 1.5in tapered steerer. Brakes are flat mount, 160mm direct and up to 180mm rotors with the right adapter. Tyre clearance is up to 700c x 50mm without a fender, or 700c x 45mm with one. Fox rates the fork for EN 17406 category 3 use with a maximum system weight of 121kg (bike, rider, gear and cargo), and lists it as compatible with Class 1 and L1e-A e-bikes. Check your frame's allowable fork travel and axle-to-crown before choosing 40mm or 50mm.
Sizes & options
Four versions. Travel, offset and colour change from one to the next; everything else is shared.
| Travel | Offset | Colour | Axle-to-crown | Fox part no. |
|---|---|---|---|---|
| 40mm | 45mm | Shiny Black | 435.5mm | 910-21-313 |
| 40mm | 50mm | Shiny Black | 435.5mm | 910-21-268 |
| 40mm | 45mm | Shiny Orange | 435.5mm | 910-21-311 |
| 50mm | 45mm | Shiny Black | 445.5mm | 910-21-312 |
- Lightest suspension fork Fox has made
- GRIP SL damper, 3-position compression
- 32mm Genuine Kashima Coat uppers
- 12 x 100mm Kabolt thru-axle
- Flat mount brakes, 160–180mm rotors
- Integrated fender mounts
| Brand | Fox |
|---|---|
| Model | 32 Taper-Cast Factory |
| Wheel size | 700c |
| Travel | 40mm or 50mm (see options) |
| Offset (rake) | 45mm or 50mm (see options) |
| Upper tubes | 32mm, Genuine Kashima Coat |
| Damper | GRIP SL, 3-position adjust |
| Air spring | FLOAT EVOL |
| Axle | Kabolt 12 x 100mm thru-axle |
| Steerer | 1.5in tapered |
| Brake mount | 160mm flat mount, up to 180mm rotors |
| Tyre clearance | 700c x 50mm (700c x 45mm with fender) |
| Fender mounts | Integrated |
| Starting weight | 1161g (Fox figure: 50mm, GRIP SL, Kabolt) |
| Model year | 2025 |
| In the box | Star nut, brake hose clip, 3 volume spacers, owner's manual, Fox sticker |
| SKU | RFX-P-F-32TCF-GSL |
| Brand | Fox |
| Shipping Weight | 1.6350kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.150m |
| Shipping Length | 0.950m |
