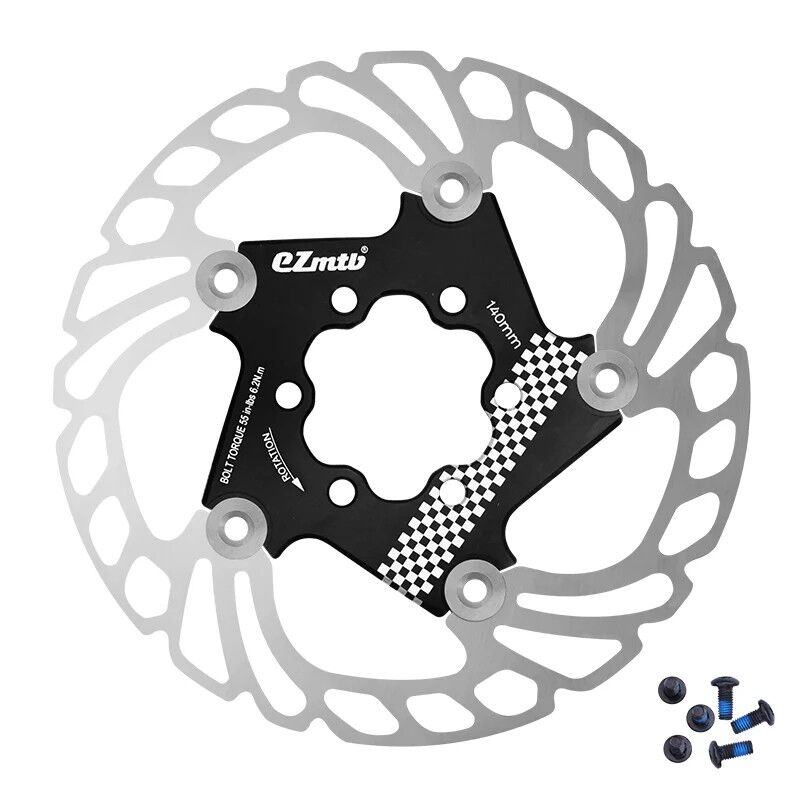

A two-piece 6-bolt rotor that pairs a vented aluminium alloy carrier with a polished stainless steel braking track. It's a simple way to replace a worn rotor or step up a size on a 6-bolt hub.

Highlights

  • Aluminium alloy carrier with hollow cutouts for airflow and heat dissipation
  • Imported 420 stainless steel braking surface, polished for strong braking
  • Stainless steel hollow rivets join the carrier and braking track
  • 6-bolt mount with six mounting bolts included
  • Suits semi-metallic and resin pads

Two-piece construction

The aluminium alloy carrier is cut out to move more air and shed heat while keeping its strength. Stainless steel hollow rivets join it to the 420 stainless steel braking track, and the braking surfaces are polished for strong braking power.

Compatibility & fit

Fits hubs with a standard 6-bolt rotor interface; six mounting bolts are in the box. If you are changing rotor size, check that your caliper adaptor suits the new diameter. Our workshop can fit rotors, set up adaptors and bed in your pads as a separate service.

Options

Size140mm, 160mm, 180mm, 203mm
Covered against manufacturing defects under EZmtb's standard warranty terms. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, EZmtb's Australian distributor.
  • Two-piece rotor: alloy carrier, stainless steel braking track
  • Vented carrier for airflow and heat dissipation
  • 420 stainless steel braking surface
  • 6-bolt mount, bolts included
  • Suits semi-metallic and resin pads
Mount6-bolt
Braking surface420 stainless steel
CarrierAluminium alloy with hollow cutouts
RivetsStainless steel, hollow
Includes6 x mounting bolts
Pad compatibilitySemi-metallic and resin
Sizes140mm, 160mm, 180mm, 203mm
SKU KWT-P-EZMTB-FL-6BOLT
Brand EZMTB
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.030m
Shipping Length 0.220m
