ENVE G23 Gravel Carbon 24H Rimset 700C
SKU code: GSP-NV-G23-700C-RIMS

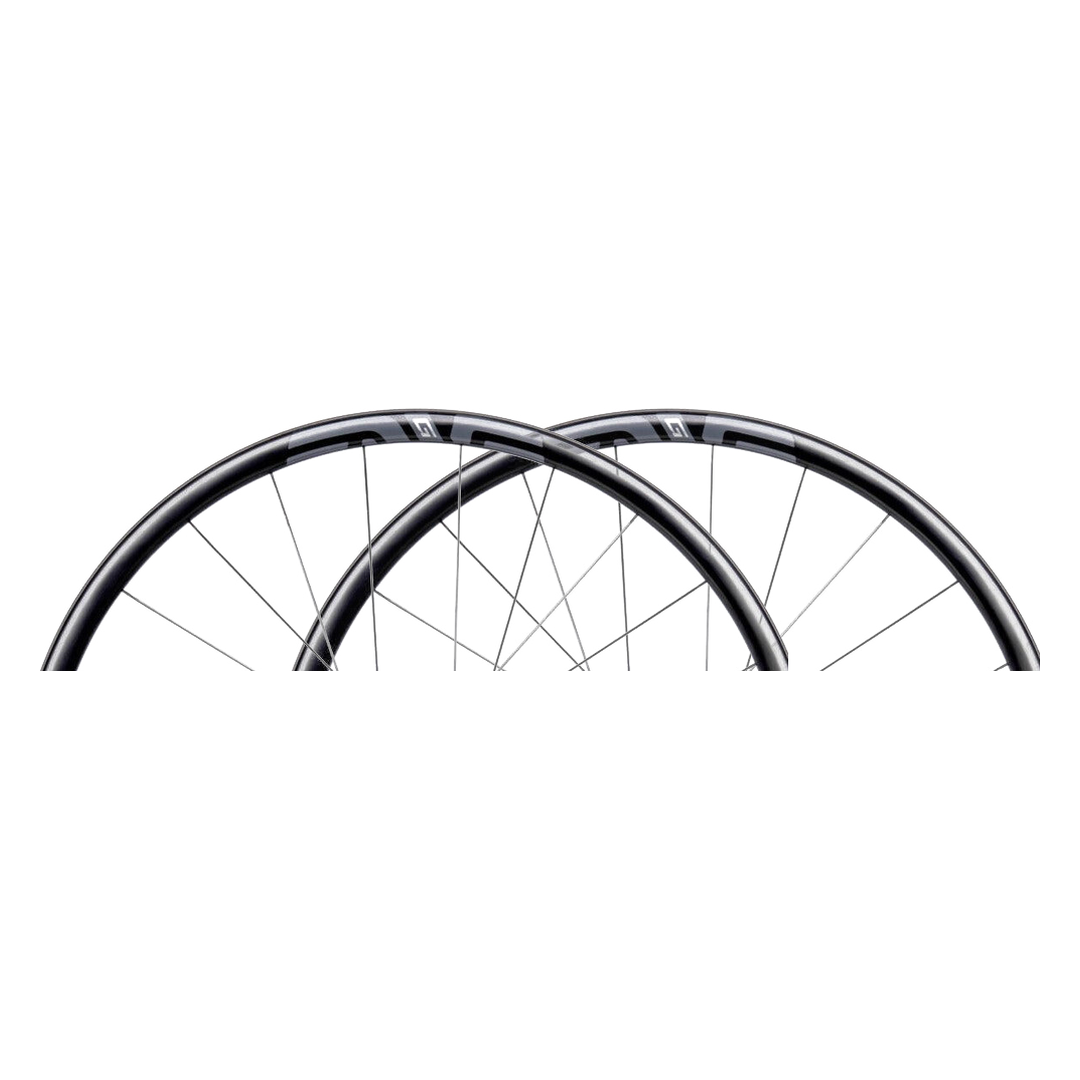

ENVE G23 rim set, 24H, 700C
Two ENVE G23 rims packed as one set: the rim pair inside our hand-built ENVE gravel wheelsets, and the same pair on its own for your own build. For gravel racing and fast mixed-surface riding on 33–45 mm tyres — ENVE's lightest 700c tubeless rim, with the Wide Hookless Bead against pinch flats.
Special order: ENVE rims come from ENVE's Australian distributor, usually in about 7 days; we confirm the dispatch date by email when you order.
What is in the box
- 2 × ENVE G23 rim, 700C, 24H
- Rims only: ENVE sells the rim without nipples, tape or valves. For your own build you need ENVE's brass internal nipples (one 24-pack per rim; ENVE's moulded nipple seat takes nothing else) and ENVE valves (47 mm).
The rim
- 23 mm internal, 31.5 mm external, 25 mm deep
- Hookless carbon, tubeless only: ENVE optimises the G23 for 33–45 mm tyres and accepts 28–50 mm
- 24 spoke holes, ERD 608 mm; weight 329 g each (ENVE's figures)
- Tape: 27 mm tubeless tape; valves 47 mm (ENVE's recommendation)
- ENVE's spoke chart: 120 kgf (about 1,180 N) on the front disc side and the rear drive side
Warranty
ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for the rim warranty. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number.
ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for the warranty. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with ENVE. Wear, corrosion and incorrect fitting are not covered.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- ENVE G23 × 2, 24H, 700C
- 23 mm internal, 25 mm deep, hookless carbon
- Tubeless only: ENVE optimises the G23 for 33–45 mm tyres and accepts 28–50 mm
- ERD 608 mm; 329 g each
- Rims only: ENVE internal nipples and 47 mm valves listed separately
- The rim pair in our hand-built ENVE gravel wheelsets; sold here on its own too
- ENVE lifetime warranty (original owner) + crash replacement
| Specification | Value |
|---|---|
| Rims | 2 × ENVE G23 |
| Diameter | 700C |
| Spoke holes | 24H |
| Material | Carbon |
| Internal / external width | 23 mm / 31.5 mm |
| Rim depth | 25 mm |
| ERD | 608 mm |
| Weight | 329 g each |
| Tyre interface | hookless, tubeless-ready tyres only |
| Tyres | ENVE optimises the G23 for 33–45 mm tyres and accepts 28–50 mm |
| Tape | 27 mm |
| Valves | 47 mm (ENVE) |
| Nipples | ENVE brass internal, sold separately (24-pack per rim) |
| Spoke tension | 120 kgf (ENVE spoke chart) |
| In the box | Rims only |
| Warranty | ENVE lifetime (original owner) + crash replacement, claims via Tune Cycles |
| SKU | GSP-NV-G23-RIMSET |
| Brand | ENVE |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.080m |
| Shipping Length | 0.700m |
