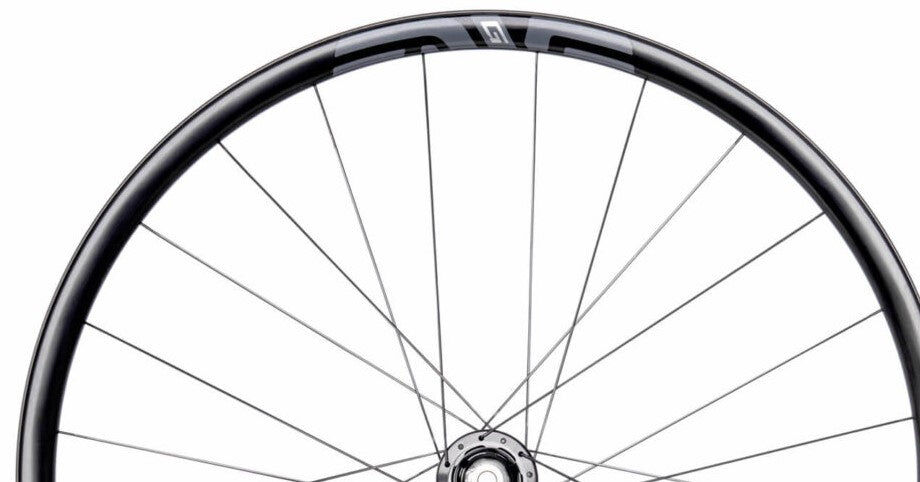

ENVE's lightest 700c tubeless rim and the heart of a true disc gravel wheelset: 329g, a generous 23mm internal width and ENVE's Wide Hookless Bead against pinch flats.

Highlights

  • 25mm deep, 23mm internal for the tyre widths ENVE designed it around
  • 329g rim weight
  • 24-hole drilling for hand-built wheels
  • Wide Hookless Bead, tubeless-ready and resistant to pinch flats

Fit and compatibility

This is a 700c disc-brake rim, drilled 24H with an effective rim diameter (ERD) of 608mm for spoke length. Tyres: 33c–45c optimised; 28c–50c accepted. It's sold as a rim only: pair it with a hub, spokes and nipples, or let us build it.

Built by Tune Cycles

Tune Cycles builds wheels by hand in Marrickville, Sydney. Buy the rim on its own, or send us your hub choice and riding and we'll build and true a complete wheel around it.

Not sure which ENVE rim suits your bike or tyres? Tell us what you ride and we'll help you choose.

ENVE covers its rims with a lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage.

For warranty support, return the item to Tune Cycles and we'll manage the claim with ENVE for you. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.

  • Brake: Disc
  • Rim depth: 25mm
  • Internal width: 23mm
  • External width: 31.5mm
  • Spoke holes: 24H
  • Effective rim diameter (ERD): 608mm
BrandENVE
ModelG23
Wheel size700c
BrakeDisc
Rim depth25mm
Internal width23mm
External width31.5mm
Spoke holes24H
Effective rim diameter (ERD)608mm
Rim weight329g
BeadWide Hookless Bead, tubeless-ready
Tyre size33c–45c optimised; 28c–50c accepted
Supplied asRim only (no hub, spokes or tape)
SKU GSP-NV-G23-RIM
Brand ENVE
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
