DT Swiss XRC310 DT 240 EXP hand-built wheelset

A DT Swiss XRC310 rim set laced 28-spoke front and rear to DT 240 EXP hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

Wheel size — 29": read it off your tyre sidewall (700 × 40C is 700c; 27.5 × 2.1 is 650b).
Rear axle — 12 × 142 only on this wheelset: measure the inside of the dropouts.
Front axle — 12 × 100 only on this wheelset: check the fork lowers.
Rotor mount — Centre Lock only on this wheelset: check your rotors.
Cassette — Shimano HG freehub body: Shimano 11- and 12-speed road / GRX and SRAM 11-speed cassettes fit HG; SRAM 12-speed road and XPLR need XDR — not offered on this listing, ask us about the body swap.

Who it is for

For gravel and all-road riding on a disc-brake bike with big tyres — the DT Swiss XRC310 is a 30 mm-inner carbon XC rim (ASTM 3) that wants a 47 mm (1.85") gravel tyre or wider; for 32–45 mm tyres see our GR531 kits (24 mm inner).

The rider's questions

How much can it carry? Max system weight (rider, bike and gear) 120 kg — the DT Swiss XRC310 rating, the lowest-rated part of the build.
What tyres fit? 53–69 mm tyres are DT's recommended range for a 30 mm inner width; 47–52 mm and 71 mm are possible. Hookless (TSS) rims: fit tubeless or tubeless-ready tyres only, with or without a tube, and never go above the tyre's marked maximum pressure.
E-bike? DT approves the DT 240 EXP for e-bikes to 100 Nm of motor torque; above 55 Nm DT recommends the 350 Hybrid and above 100 Nm requires it — see our Hybrid and Pro 5e kits for a full-power motor.
How fast does the hub engage? 36 points of engagement — Ratchet EXP 36, 10° between clicks. The EXP 54 ratchet kit is a drop-in upgrade (sold separately).
Warranty? DT Swiss parts 24 months from purchase; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.

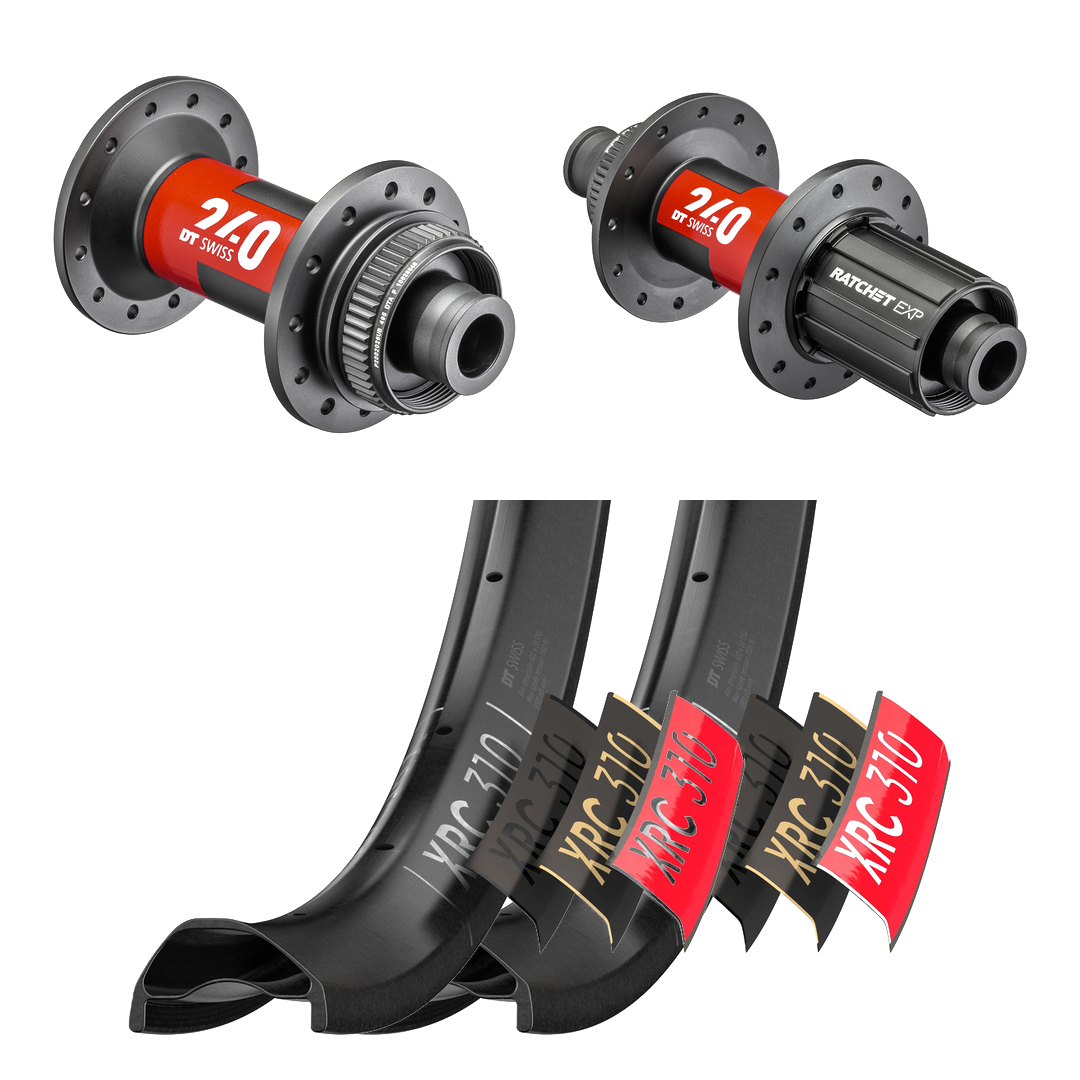

Kit includes

DT Swiss XRC310 rim set — two 28H rims, 29"
DT 240 EXP front hub, 28H: Centre Lock · 12 × 100
28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes (front)
DT 240 EXP rear hub, 28H: Centre Lock · 12 × 142 · freehub Shimano HG
28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes (rear)
The DT Pro Lock flat hex alloy nipples supplied with the rims, as fitted

Options: rim diameter 29" · tubeless valves (50 mm, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), RT-CL700 160 mm Centre Lock rotor, a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits (1200 N), stress-relieved and trued, then checked again before it is packed. Tubeless tape (32 mm) is fitted to the rim; DT packs its own 32 mm tape and a tubeless valve with each rim, so the valves come with the wheelset — the Pro build and tape are added to your cart automatically; add sealant and it is ready for tyres. The valve row below is only for spares.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

DT Swiss rims and hubs are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Crash damage on a carbon rim is not a warranty case, but DT's Fair-Share programme replaces a first owner's crashed carbon rim for a fixed fee instead of the full price for ten years from purchase — ask us for the current Australian fee; the claim goes through Tune Cycles and Apollo. Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

DT Swiss XRC310 rims — 30 mm internal, one-piece carbon (PURE Carbon, no joint), ASTM 3; 29"
DT 240 EXP hubs — 36 points of engagement, Ratchet EXP 36; Centre Lock; 12 × 100 or 12 × 142; freehub Shimano HG
Spokes — 28 × DT Competition front, 28 × DT Competition rear; the DT Pro Lock flat hex alloy nipples supplied with the rims
Your bike's fit from the dropdowns: size — nothing is pre-selected, choose each one
Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
Serviceable and upgradable: Ratchet EXP, the EXP 54 kit and freehub bodies available separately
Editable kit: the Upgrades rows are optional and the price follows what you tick

	Front	Rear
Rim	DT Swiss XRC310	DT Swiss XRC310
Rim construction	one-piece carbon (PURE Carbon, no joint), no eyelets	one-piece carbon (PURE Carbon, no joint), no eyelets
Tyre interface	hookless tubeless (TSS) — TL / TLR tyres only	hookless tubeless (TSS) — TL / TLR tyres only
Diameters offered	29"	29"
Internal width	30 mm	30 mm
Rim depth	20 mm	20 mm
ERD	29" 602 mm	29" 602 mm
Spoke holes	28H	28H
Hub	DT 240 EXP	DT 240 EXP
Axle	12 × 100	12 × 142
Rotor mount	Centre Lock	Centre Lock
Freehub bodies	—	Shimano HG
Engagement	—	36 POE — Ratchet EXP 36
Spokes	28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes	28 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes
Nipples	The DT Pro Lock flat hex alloy nipples supplied with the rims	The DT Pro Lock flat hex alloy nipples supplied with the rims
Tape fitted	32 mm tubeless tape	32 mm tubeless tape
Valves	optional, 50 mm tubeless valves	optional, 50 mm tubeless valves
Max spoke tension	1200 N	1200 N
Max system weight	120 kg (rider, bike and gear)	120 kg (rider, bike and gear)
Tyre width	53–69 mm recommended (47–52, 71 mm possible)	53–69 mm recommended (47–52, 71 mm possible)
Intended use	Gravel — ASTM 3	Gravel — ASTM 3
E-bike rating	DT: approved to 100 Nm motor torque (Hybrid recommended above 55 Nm)	DT: approved to 100 Nm motor torque (Hybrid recommended above 55 Nm)
Warranty	DT Swiss parts 24 months from purchase	DT Swiss parts 24 months from purchase
Built by	Tune Cycles, Marrickville — Pro wheel build and tubeless tape included	Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
