DT Rim XRC310 Carbon XC MTB 28H Rimset 29"
SKU code: APO-DT-XRC310-28-29-RIMS
In Stock

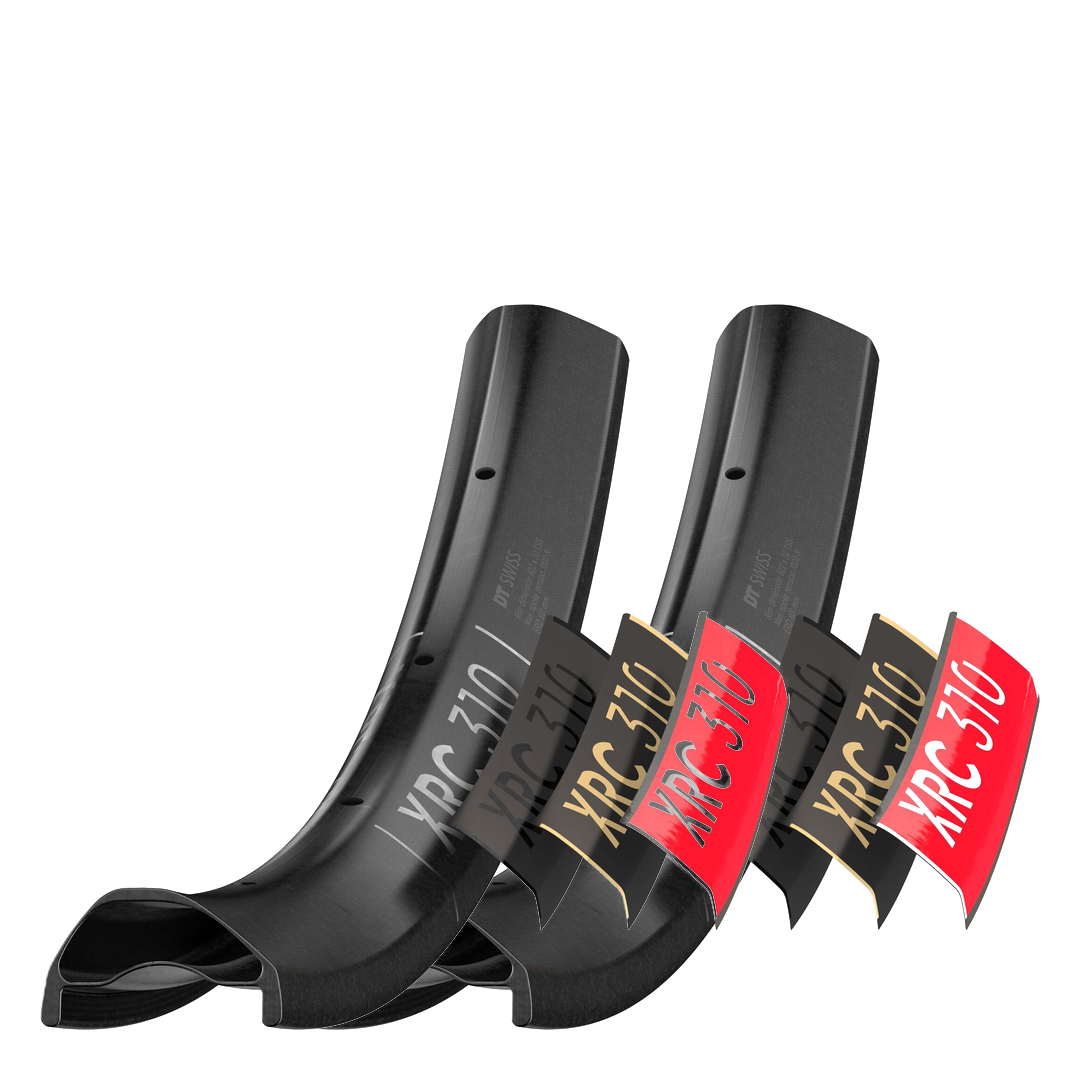

DT Swiss XRC 310 rim set — 28H, 29"
Two DT Swiss XRC 310 rims packed as one set: the rim pair inside our hand-built cross-country wheel kits, and the same pair on its own for your own build. Both rims drilled 28H.
What is in the box
- Two DT Swiss XRC 310 rims — 29" (DT makes this rim in 29" only)
- Each rim ships with DT Pro Lock flat hex alloy nipples (black), 32 mm tubeless tape and a tubeless valve (18-25 mm) — nothing else to buy for lacing
The rim
- 30 mm internal width, 36 mm external, 20 mm deep — sized for 2.1–2.7" tyres (DT's recommended range for a 30 mm rim)
- One-piece PURE Carbon layup (no rim joint), asymmetric profile for even spoke tension, non-eyelet spoke bed
- ASTM 3 — XC; max system weight (rider, bike and gear) 120 kg
- ERD 602 mm · weight 373 g each (DT's figures)
- Hookless TSS tubeless profile — tubeless or tubeless-ready tyres only, never above the tyre's marked maximum pressure; 32 mm tape; e-bike approved by DT (max 32 km/h / 250 W)
Warranty
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Carbon rims also join DT's Fair-Share programme: a first owner who damages a rim in a crash gets a replacement for a fixed fee, not full price, for ten years from purchase. Any claim comes back to Tune Cycles — bring the rim to Marrickville or contact us with your order number.
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.
Crash damage on a DT carbon rim is not a warranty case, but DT's Fair-Share programme replaces a first owner's crashed rim for a fixed fee instead of the full price, for ten years from purchase (rims bought after 1 March 2025). Ask us for the current Australian fee — the claim goes through Tune Cycles and Apollo.
- DT Swiss XRC 310 × 2 — 28H, 29"
- 30 mm internal, hookless PURE Carbon, ASTM 3 (XC)
- Nipples, tape and valves in the box
- Hookless tubeless (TSS) — TL / TLR tyres only, 32 mm tape, 2.1–2.7" tyres
- Max system weight 120 kg; DT e-bike approved
- DT Fair-Share crash replacement for first owners (10 years)
- The rim pair in our hand-built cross-country wheel kits — sold here on its own too
| Specification | Value |
|---|---|
| Rims | 2 × DT Swiss XRC 310 |
| Diameter | 29" |
| Spoke holes | 28H |
| Material | PURE Carbon |
| Internal / external width | 30 mm / 36 mm |
| Rim depth | 20 mm |
| ERD | 602 mm |
| Weight | 373 g each |
| Construction | one-piece carbon, asymmetric, non-eyelet |
| Tyre interface | hookless tubeless (TSS) |
| ASTM | 3 — XC |
| Max system weight | 120 kg |
| Tyre width | 2.1–2.7" recommended |
| Tape | 32 mm tubeless tape |
| In the box | DT Pro Lock flat hex alloy nipples (black), 32 mm tubeless tape and a tubeless valve (18-25 mm) |
| Warranty | DT Swiss 24 months + Fair-Share crash replacement (first owner, 10 years), claims via Tune Cycles |
| SKU | APO-DT-XRC310-28-RIMSET |
| Brand | DT Swiss |
