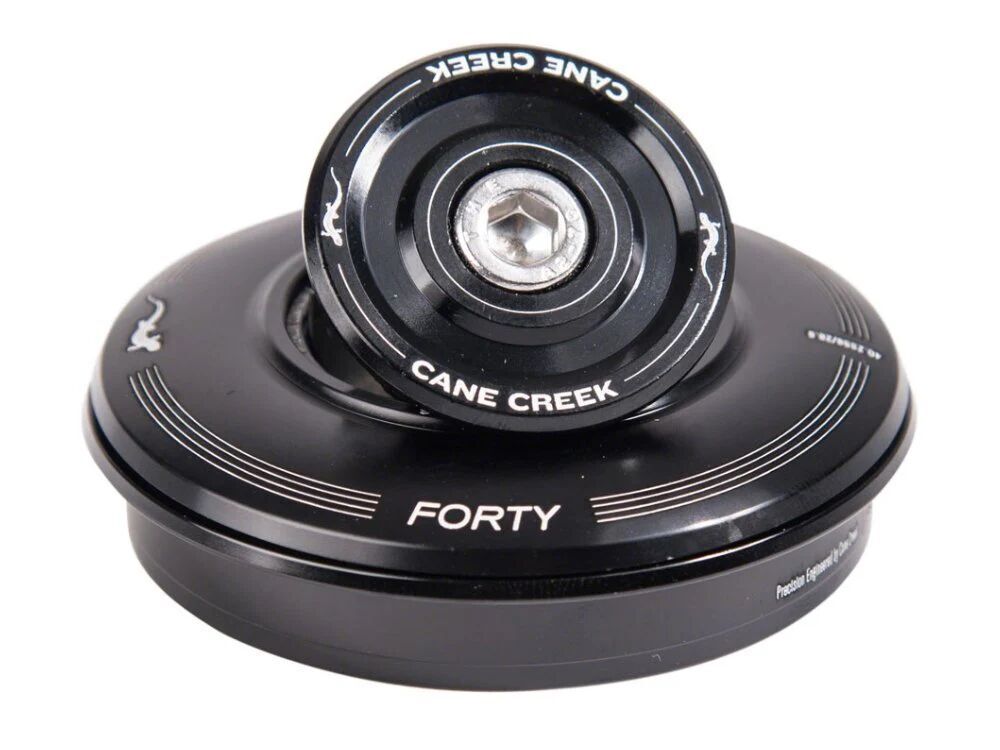

This is a Cane Creek 40-Series conversion top: a ZeroStack cup that lets a 1.5in oversized head tube run a 1-1/8in steerer and stem, sold on its own for building up or servicing a headset rather than as a complete set.

Compatibility & fit

S.H.I.S. (the Standardized Headset Identification System) is the code the whole headset industry uses for cup and crown race sizes, written upper | lower — this top is ZS56/28.6, a ZeroStack conversion cup sized for a 55.95mm (1.5in oversized) head tube bore that steps down to a 28.6mm (1-1/8in) stem clamp. It is not a tapered-steerer top: it keeps the fork's steerer at a constant 1-1/8in through a larger head tube. Match the head tube bore and steerer diameter to your frame and fork before ordering. If you're not sure which headset standard your frame uses, the Tune workshop can check and fit it.

Cane Creek's 40-Series (Forty) headsets carry a 1-year warranty to the original owner against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • S.H.I.S. ZS56/28.6 ZeroStack conversion top
  • Adapts a 1.5in oversized (55.95mm) head tube to a 1-1/8in (28.6mm) steerer and stem
  • Black-oxide sealed bearing for corrosion resistance
  • 6061 aluminium cup
S.H.I.S. (upper)ZS56/28.6
Top typeZeroStack conversion (1.5in oversized to 1-1/8in)
Head tube inside diameter55.95mm
Stem clamp diameter28.6mm
Bearing typeBlack-oxide, sealed cartridge
Material6061 aluminium
SKU DTW-CKG-HSCT40ZS56K
Barcode # 840226077925
Brand Cane Creek
Shipping Weight 0.1000kg
