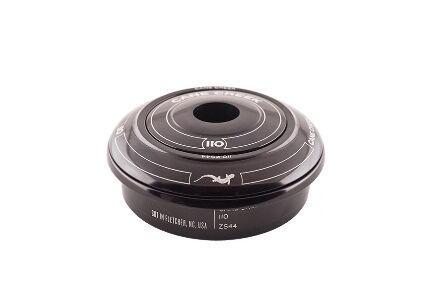

The top half of a Cane Creek 110-Series headset: a ZeroStack (ZS) assembly for a 1-1/8in steerer, built around a Hellbender stainless steel bearing, in the short (9mm) stack height.

Highlights

  • Hellbender stainless steel sealed bearing
  • 7075 aluminium cup and cover
  • S.H.I.S. ZS44/28.6, short (9mm) stack

What S.H.I.S. means

S.H.I.S. states a headset's cup type and bearing bore, then the steerer diameter it takes — here, a ZeroStack (ZS) cup that sits inside the head tube with a 44mm bearing bore, for a 28.6mm (1-1/8in) steerer. Fitting the wrong standard won't seat properly, so match this code to your frame's head tube before ordering.

Compatibility & fit

Top assembly only, S.H.I.S. ZS44/28.6, short (9mm) stack, for a 1-1/8in (28.6mm) steerer and a head tube bored for a 44mm ZeroStack cup. Needs a matching 110-Series bottom assembly to complete the headset.

Cane Creek backs the 110 headset range — including this top assembly's Hellbender stainless bearing — with a 100% Lifetime Guarantee for the original owner, on products purchased after 28 August 2019. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
  • S.H.I.S. ZS44/28.6
  • Short (9mm) stack
  • Hellbender stainless steel bearing
  • Top assembly only — needs a matching bottom assembly
S.H.I.S.ZS44/28.6
Steerer1-1/8in (28.6mm)
Stack heightShort (9mm)
BearingHellbender stainless steel
Material7075 aluminium
ColourBlack
PositionTop assembly only
SKU DTW-CKG-HST110ZSS8K
Barcode # 840226096056
Brand Cane Creek
