The bottom half only of a Cane Creek 40-Series headset, for frames with an oversized 62mm head tube bore. S.H.I.S. ZS62/40 is a ZeroStack lower matched to a 40mm crown race for a 1.5in tapered steerer — sold on its own as a spare or to build up a headset, not as a complete set.

Compatibility & fit

S.H.I.S. ZS62/40: 62mm head tube bore, takes a 52mm bearing, 36°×45° contact angle. Fits 1.5in lower head tubes with a tapered fork steerer. Match the S.H.I.S. code to your frame before ordering — a ZS62 cup will not seat in a standard ZS56 head tube.

Cane Creek's 40-Series (Forty) headsets carry a 1-year warranty to the original owner against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.

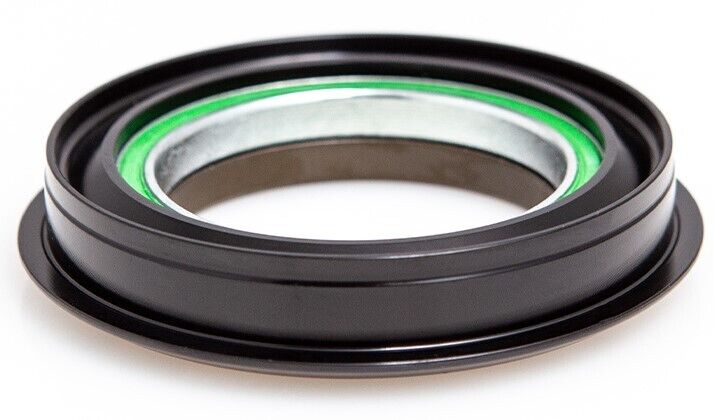

  • S.H.I.S. ZS62/40 lower assembly: cup, sealed bearing and crown race
  • Zinc-coated (ZN40) sealed cartridge bearing for corrosion resistance
  • Steel crown race
  • 6061-T6 aluminium cup
S.H.I.S. (lower)ZS62/40
Bottom typeZeroStack (ZS)
Head tube inside diameter62mm
Bearing size52mm
Bearing typeZinc-coated (ZN40), sealed
Crown race typeSteel
Material6061-T6 aluminium
SKU DTW-CKG-HSB40ZS62K
Barcode # 840226078090
Brand Cane Creek
Shipping Weight 0.1000kg
