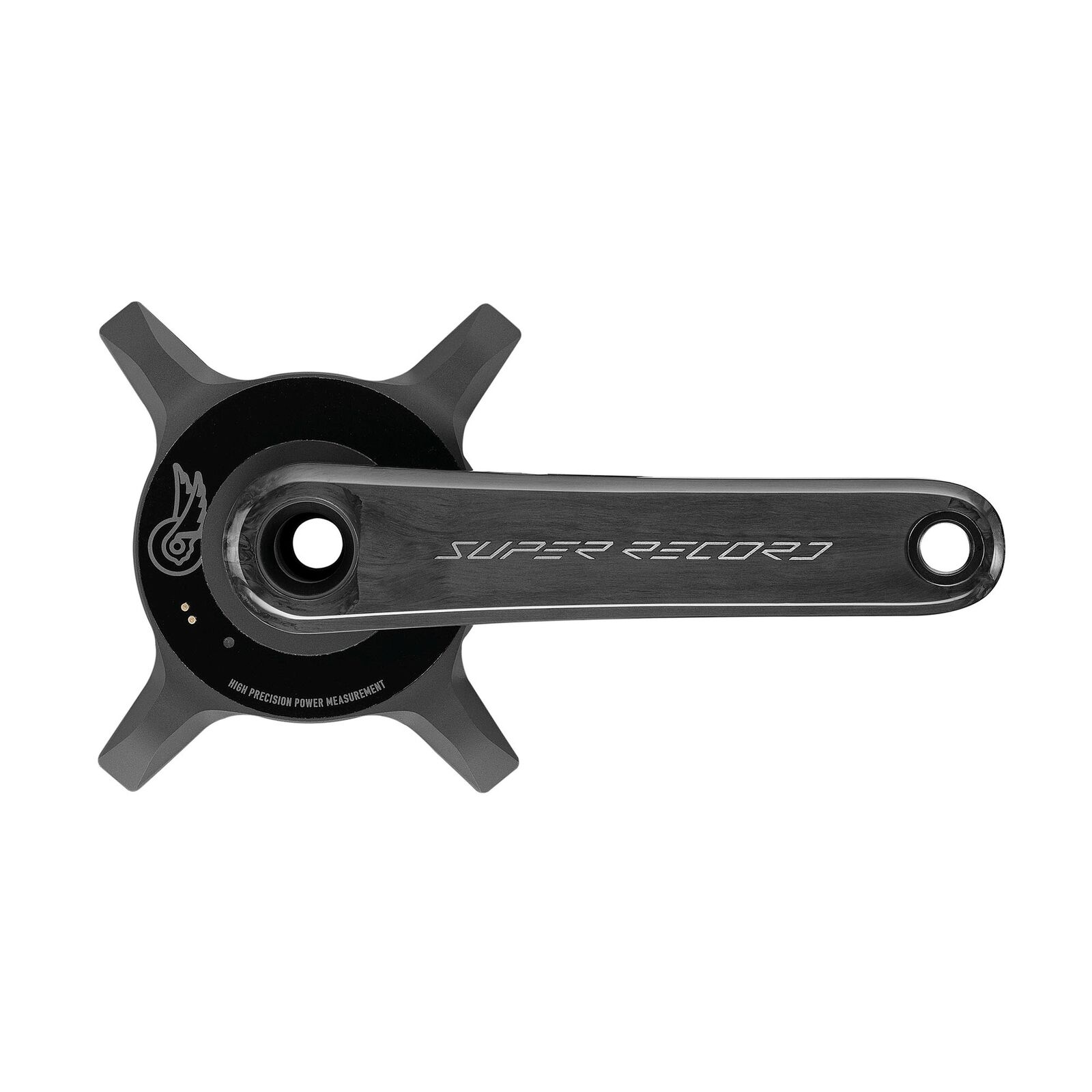

Campagnolo Super Record 13 2x13 QCK-Tech Power Meter Crankarm Set – 165mm
SKU code: FES-FCP0-SR13165CA
In Stock
Super Record 13's carbon crankset with Campagnolo's HPPM power meter built into the axle, so you measure pure torque without adding a pod or spider. Claimed accuracy is ±1%, and data goes straight to your bike computer or the MyCampy app.
Highlights
- HPPM (High Precision Power Measurement): 16 extensometers and an integrated gyroscope
- ±1% claimed accuracy
- Power meter mounted directly on the axle, measuring torque only
- Magnetic quick-snap recharging; battery status via app, computer or LED
- Exposed carbon arms, titanium Ultra-Torque semi-axle, QCK-Tech
Power measured at the axle
Because the sensors sit on the axle rather than in the arms, Campagnolo says the reading is unaffected by crank flex. Power, battery status and settings are visible on your bike computer and in the MyCampy app.
Crankarm set, chainrings separate
Chainrings are sold separately; choose from the seven Super Record 13 combinations, 45/29 to 55/39.
Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.
Options
| Crank length | What differs |
|---|---|
| 165mm | Crank arm length only |
| 170mm | Crank arm length only |
| 172.5mm | Crank arm length only |
| 175mm | Crank arm length only |
Compatibility & fit
Designed for Campagnolo Super Record 13 (13-speed) 2x drivetrains with Super Record 13 chainrings and 13-speed cassettes. Requires a Campagnolo bottom bracket cup to suit your frame's shell. Connection details for your head unit: check with us before ordering if you rely on a specific protocol.
Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
- Integrated HPPM power meter, ±1% claimed accuracy
- 16 extensometers plus gyroscope
- Axle-mounted sensor measures pure torque
- Magnetic quick-snap charging
- Carbon arms with titanium Ultra-Torque semi-axle
| Brand | Campagnolo |
|---|---|
| Groupset | Super Record 13 |
| Speeds | 13 (2x) |
| Type | Power meter crankarm set (chainrings sold separately) |
| Power meter | HPPM, 16 extensometers + gyroscope, axle-mounted |
| Claimed accuracy | ±1% |
| Data | Bike computer and MyCampy app |
| Charging | Magnetic quick-snap |
| Crank arms | Carbon fibre |
| Axle | Ultra-Torque, titanium semi-axle |
| Crank lengths | 165, 170, 172.5, 175mm |
| Claimed weight (complete crankset) | 650 g (172.5mm, 45x29, bearings assembled) |
| SKU | FES-P-29092 |
| Brand | Campagnolo |
