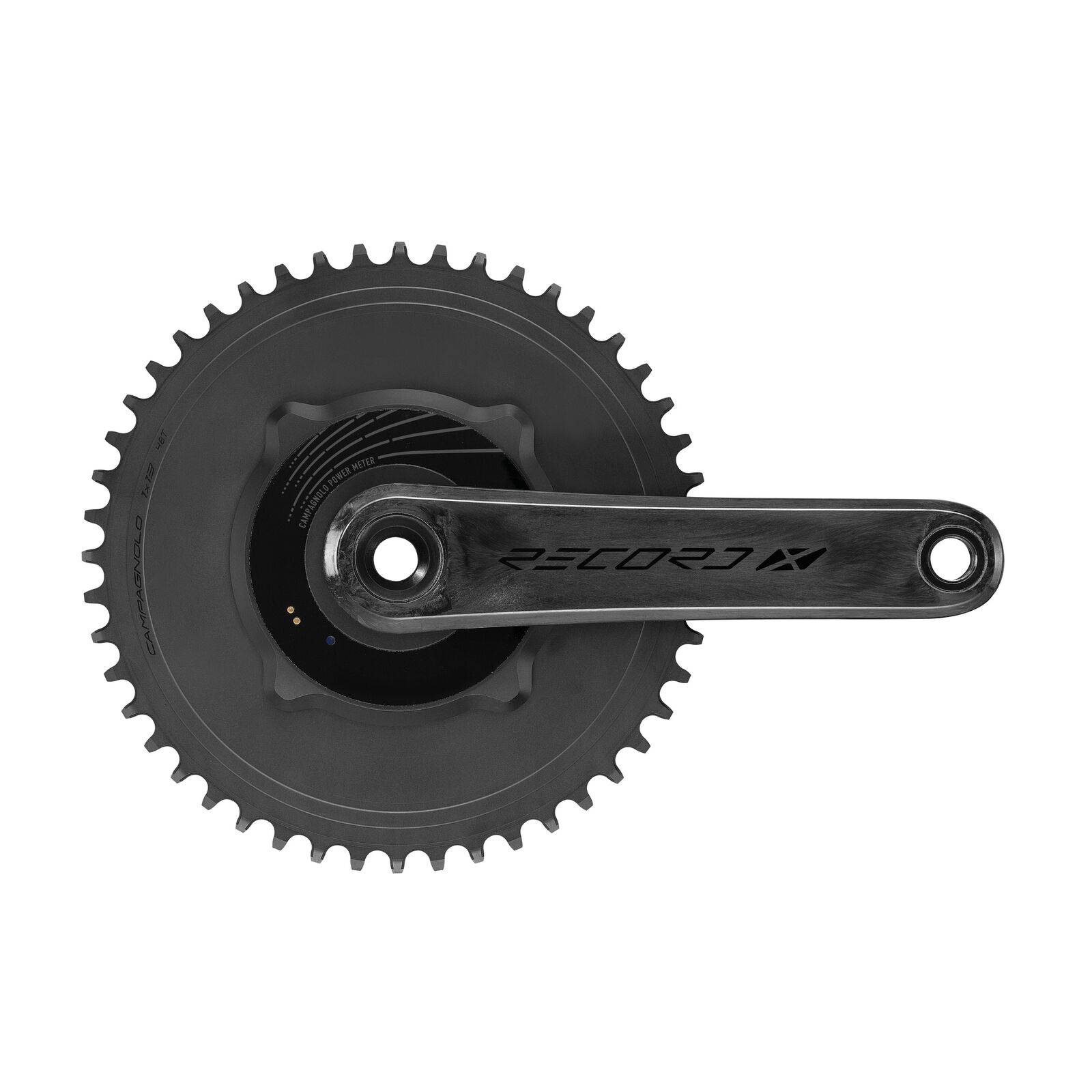

Campagnolo Record X 1x13 QCK-Tech Power Meter Crankarm Set – 170mm
SKU code: FES-FCP0-REX13170CA
In Stock
The Record X gravel crank with Campagnolo's CPM power meter integrated on the spindle, measuring pure torque without crank flex interference. Dual-sided data claimed to ±2%.
Highlights
- CPM power meter: 8 strain gauges plus gyroscope
- ±2% claimed accuracy, dual-sided
- Spindle-mounted sensor for pure torque
- 47.5mm chainline, 152mm Q-factor
- Carbon arms, steel (ASTM2) spindle
Power data
Real-time watts on the MyCampy app or a compatible cycling computer.
Built for gravel
Record X uses a 47.5mm chainline and 152mm Q-factor for full gravel-frame compatibility, a steel (ASTM2) spindle, and the QCK-Tech bottom bracket with low-friction bearings and a patented dual sealing system.
Bottom bracket selection, crank installation and drivetrain set-up are available from the Tune Cycles workshop as a separate service, not included in the price.
Options
| Crank length | What differs |
|---|---|
| 165mm | Crank arm length only |
| 170mm | Crank arm length only |
| 172.5mm | Crank arm length only |
Compatibility & fit
Designed for Campagnolo Record X 1x 13-speed gravel drivetrains, with single chainrings from 38 to 52 teeth. Requires a Campagnolo bottom bracket cup to suit your frame's shell.
Campagnolo covers its components with a 3-year limited warranty from the date of purchase against defects in materials and workmanship (EPS power units: 2 years). Proof of purchase is required; crash damage, normal wear and tear, misuse and incorrect installation are not covered (see Campagnolo warranty information). For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
- CPM power meter, ±2% claimed
- Dual-sided measurement
- 47.5mm chainline, 152mm Q-factor
- Carbon arms, steel spindle
- 165, 170, 172.5mm
| Brand | Campagnolo |
|---|---|
| Groupset | Record X (13-speed) |
| Speeds | 13 (1x) |
| Type | Power meter crankarm set |
| Power meter | CPM, 8 strain gauges + gyroscope, spindle-mounted |
| Claimed accuracy | ±2% |
| Crank arms | Carbon fibre |
| Spindle | Steel (ASTM2) |
| Chainline | 47.5mm |
| Q-factor | 152mm |
| Crank lengths | 165, 170, 172.5mm |
| Chainring options | 38 to 52T |
| Claimed weight (complete crankset) | 717 g (172.5mm, 40T aero, bearings assembled) |
| SKU | FES-P-30574 |
| Brand | Campagnolo |
