power2max NG MTB Power Meter Spider e*thirteen Super Boost 104 BCD
SKU code: FES-LM-NGM-ETH00-001.0104
In Stock

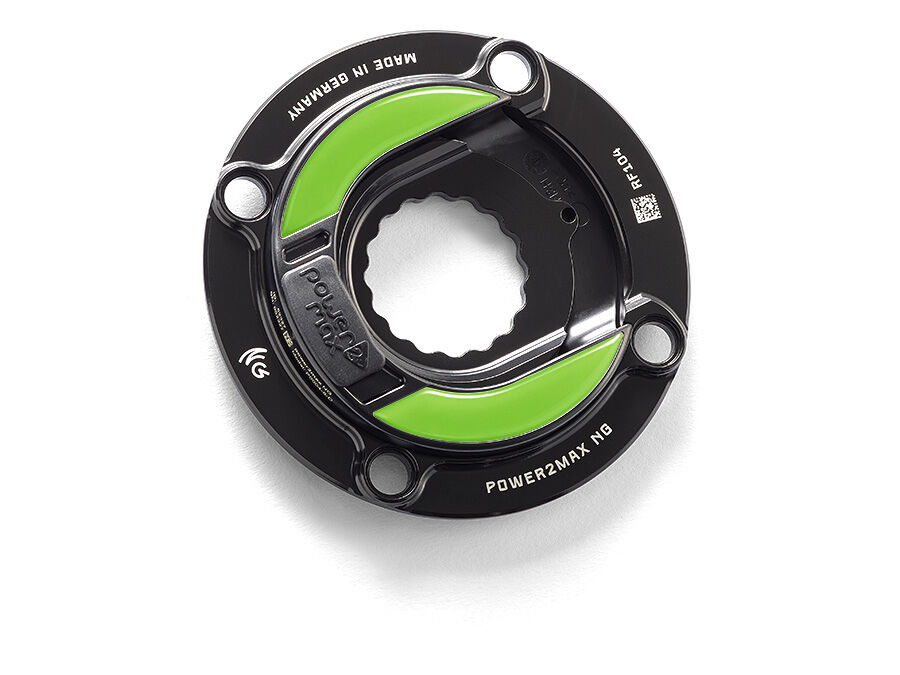

The NG MTB e*thirteen spider replaces the direct mount ring on XCX, TRS and LG1 cranksets with a ±1% power meter that takes a 104 BCD chainring.
Highlights
- Spider power meter for e*thirteen XCX, TRS and LG1 cranksets
- 55mm Super Boost chainline, 104 BCD
- ±1% accuracy; L/R balance and pedal smoothness
- Rechargeable, up to 150 hours per charge
- ANT+ and Bluetooth
Rechargeable and precise
The NG measures at the spider with ±1% accuracy and adds left/right balance and pedal smoothness to power and cadence. Active temperature compensation and automatic zero-point adjustment mean no manual calibration, and the rechargeable battery runs up to 150 hours per charge.
Compatibility & fit
Compatible with e*thirteen XCX, TRS and LG1 cranksets. The chainline is 55mm (Super Boost). The power meter replaces the direct mount chainring, so a new 104 BCD chainring is needed (not included). For a Boost chainline, the adapter ZB-SAX-00104-M01.SBNG is required. Our workshop can fit the power meter to your crankset and pair it with your head unit as a separate service, not included in the price.
power2max covers NG power meters with a 2-year manufacturer's warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with power2max's Australian distributor.
- Spider power meter for e*thirteen XCX, TRS and LG1 cranksets
- 55mm Super Boost chainline, 104 BCD
- ±1% accuracy; L/R balance and pedal smoothness
- Rechargeable, up to 150 hours per charge
- ANT+ and Bluetooth
| Discipline | MTB, single |
|---|---|
| Crankset | e*thirteen XCX, TRS, LG1 |
| BCD | 104mm |
| Chainline | 55mm Super Boost (Boost with adapter) |
| Measurement | Total power from both legs (spider-based) |
| Accuracy | ±1% |
| Metrics | Power, cadence, left/right balance, pedal smoothness |
| Power range | 10–2999 W |
| Torque range | 0–250 Nm |
| Cadence range | 20–250 rpm |
| Battery | Rechargeable lithium-ion |
| Battery life | Up to 150 hours per charge |
| Connectivity | ANT+, Bluetooth Low Energy |
| Temperature compensation | Active |
| Calibration | Automatic zero-point adjustment |
| Water resistant | Yes |
| Fitment | Loctite 243 or similar threadlocker recommended |
| In the box | Power meter, silicone cover, USB charging cable, 2D decal, quick-start guide |
| SKU | FES-LM-NGM-ETH00-001.0104 |
| Brand | Power2Max |
