QCK-Tech is the bottom bracket designed from scratch for Super Record 13, built for faster, more precise assembly and a sealed, consistent feel for the life of the groupset.

Highlights

  • Designed for Super Record 13 assembly
  • Patented external seal keeps water, mud and sand out
  • Fibreglass-reinforced polyamide central tube
  • Threaded: BSA, ITA, T47x68, T47x86, T47A
  • Press-fit: BB30, PF30, BB86, BB386, BB Right
  • Claimed weight 52g

Sealed for the long haul

A patented external seal protects the bearings, and the central tube in fibreglass-reinforced polyamide keeps contamination out. The cups house oversize stainless steel bearings fitted directly to the Ultra-Torque semi-axles, for a stiff, direct connection.

Options

OptionTypeFrame shell
EnglishBSA threaded68mm, 1.37" x 24 TPI
ItalianITA threaded70mm, 36mm x 24 TPI
T47x68T47 threaded68mm shell, 47 x 1mm
T47x86T47 threaded85.5mm shell, 47 x 1mm
T47AT47 asymmetric threaded76.75mm shell, 47 x 1mm
BB30Press-fit68 x 42mm

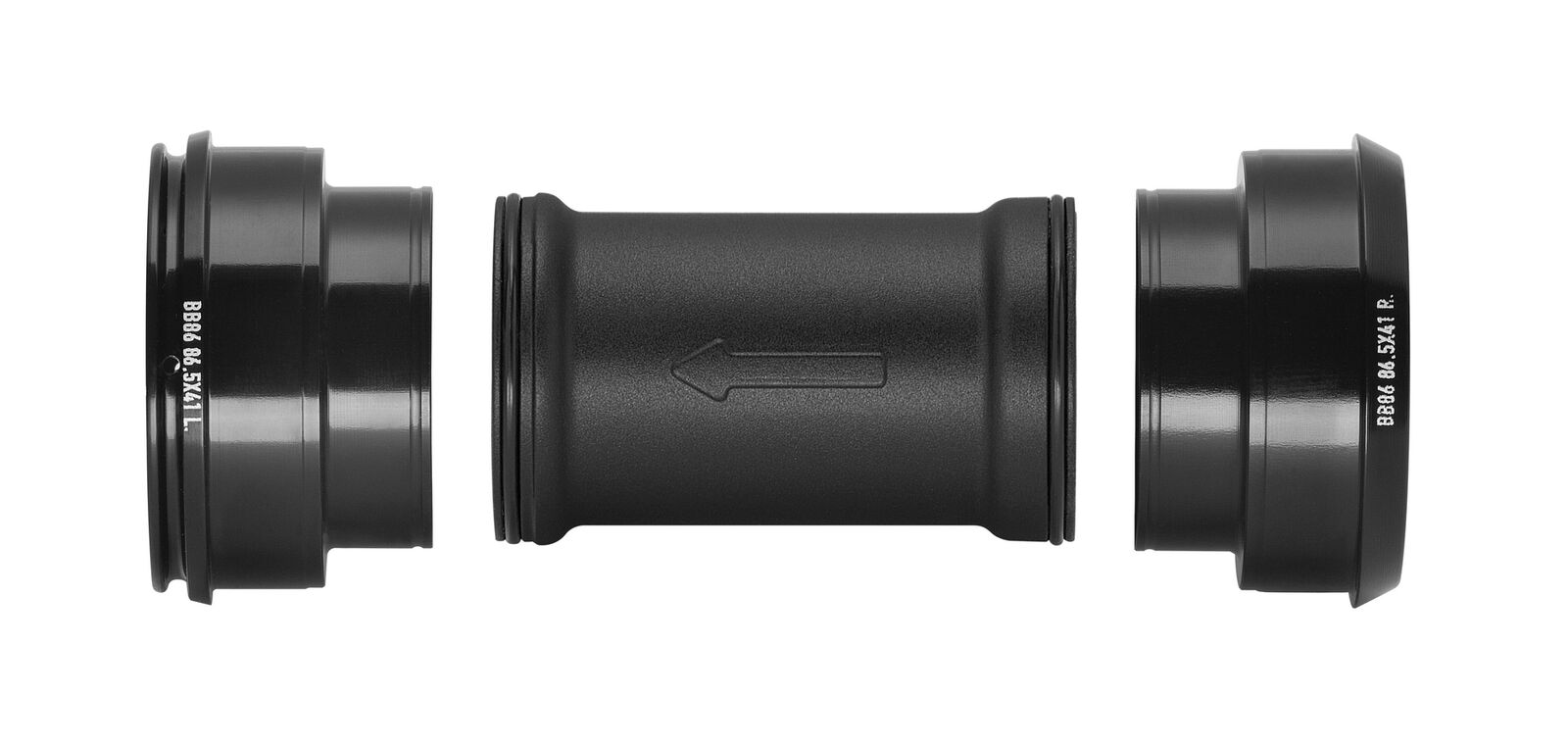

BB86Press-fit86.5 x 41mm
PF30Press-fit68 x 46mm
BBRIGHTPress-fit BB Right79 x 46mm
BB386Press-fit BB386 EVO86.5 x 46mm

Compatibility & fit

For Campagnolo Super Record 13 cranksets; Campagnolo's spare parts catalogue also lists QCK-Tech bearings and springs for Record 13, Super Record X and Record X cranksets. Choose the option that matches your frame's bottom bracket shell. Threaded cups are torqued to 35 Nm with the Campagnolo UT-BB130 tool (T47x86 and T47A with a Park Tool BBT-47 or similar); press-fit cups are installed with UT-BB240. Fitting is available from the Tune Cycles workshop as a separate service; it isn't included in the price.

Campagnolo's Limited Conventional Warranty covers this product against defects in materials or workmanship for 3 years from the date of retail sale, for the first retail purchaser with proof of purchase. It does not cover normal wear and tear, crash damage, improper assembly or maintenance, or use with components Campagnolo does not specify as compatible. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • QCK-Tech quick, precise assembly
  • Patented external seal
  • Fibreglass-reinforced polyamide tube
  • Oversize stainless steel bearings on the axle
  • 52g claimed
SystemCampagnolo QCK-Tech
GroupsetSuper Record 13
Threaded versionsBSA, ITA, T47x68, T47x86, T47A
Press-fit versionsBB30, PF30, BB86, BB386 EVO, BB Right
Central tubeFibreglass-reinforced polyamide
Claimed weight52g
SKU FES-P-29088
Brand Campagnolo
