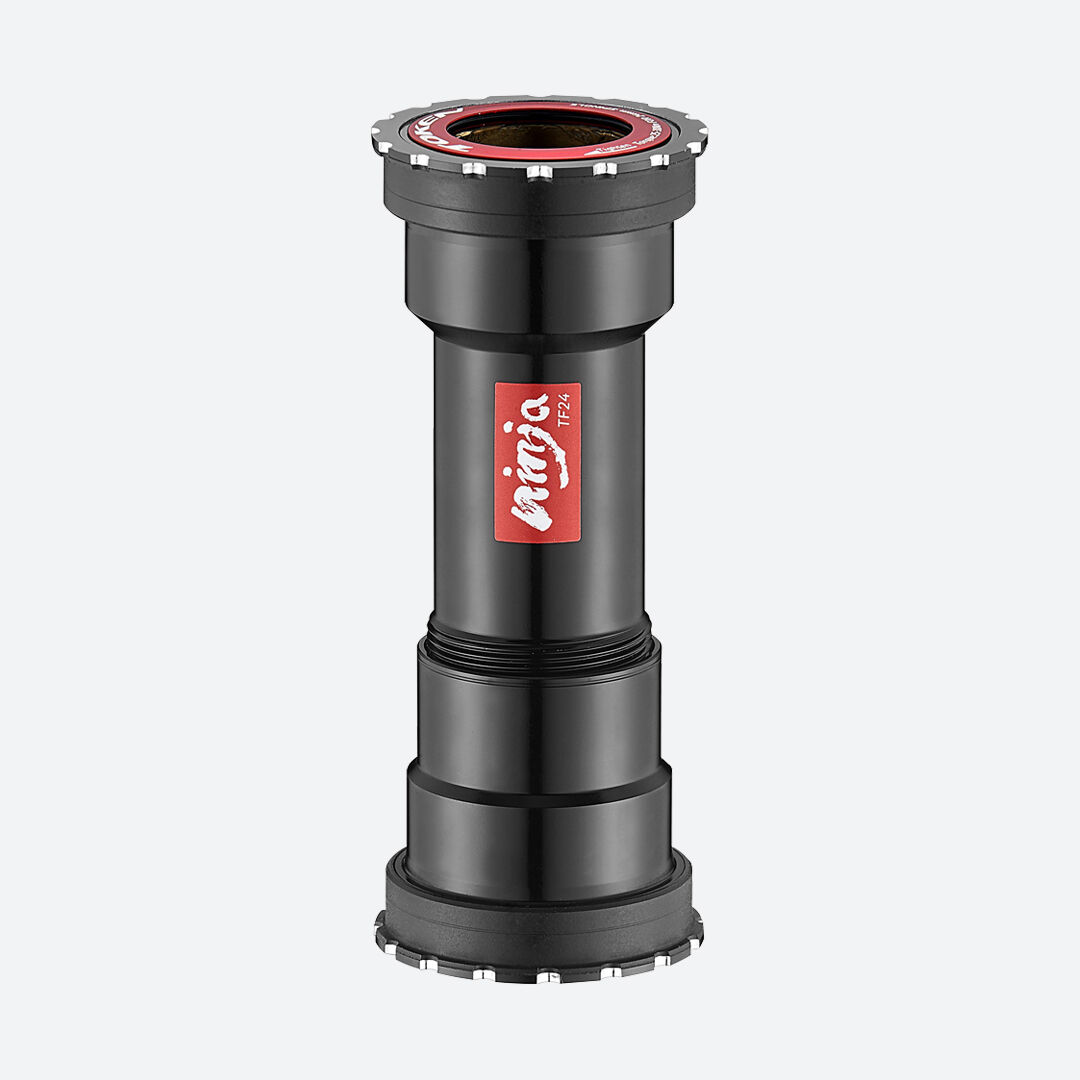

TOKEN BB841T-41-C3 Ninja Oversized-Cup Bottom Bracket BB86/BB92 for Shimano Premium
SKU code: FES-DBB841TS-41BKTKC3
In Stock
If a BB86 or BB92 shell has grown and your bottom bracket creaks, the BB841T-41-C3 is the fix. It has all the features of the BB841T-41 Ninja with oversized 41.05 mm cups for a tighter fit.
Highlights
- Oversized cups: 41.05 mm ± 0.05 mm
- Thread-together Ninja design for BB86 / BB89.5 / BB92
- Shimano 24 mm cranksets
- Premium high carbon steel bearings, Fusion construction, X-Seal
- 103 g
Oversized cups for worn shells
Bottom bracket shells can grow over time through manufacturing tolerance and long-term wear. Oversized cups restore a secure fit in an enlarged shell and usually cure the creak.
Ninja thread-together design
The alloy shell extends through the frame so the left and right sides thread together, locking frame, crankset and bottom bracket into one unit. That adds stiffness and stops the movement that makes press-fit bottom brackets creak.
Fusion construction
Fusion construction wraps the alloy bearing housing in a nylon composite. The composite can be machined for a snug fit in the frame, while the bearings sit on a solid alloy platform for a longer life.
X-Seal protection
TOKEN's X-Seal technology keeps dirt and water out of the bearings with very little added friction, so the bottom bracket keeps spinning freely in bad conditions.
Compatibility & fit
Frame: BB86 / BB89.5 / BB92 (41 mm x 86.5 / 89.5 / 92). Crankset: Shimano 24 mm spindle.
Installation: TOKEN recommends its BB841T-5RSP / BB841T-5SPA tool; it is also compatible with Park Tool BBT-69.2.
Listed weights exclude spacers.
Bottom bracket installation is a separate workshop service and isn't included in the price. Our workshop can fit it with the correct tooling and check the shell before it goes in.
TOKEN warrants this product against defects in materials or workmanship for two years from the original date of purchase, for the original purchaser with dated proof of purchase. Normal wear and tear, bearings (unless unused), and damage from incorrect installation, modification, neglect or improper maintenance are not covered; TOKEN repairs or replaces a defective product at its discretion. This is in addition to your rights under the Australian Consumer Law.
For warranty support, return the product to Tune Cycles and we'll manage the claim with TOKEN's Australian distributor.
- Oversized cups: 41.05 mm ± 0.05 mm
- Thread-together Ninja design for BB86 / BB89.5 / BB92
- Shimano 24 mm cranksets
- Premium high carbon steel bearings, Fusion construction, X-Seal
- 103 g
| Product code | BB841T-41-C3 |
|---|---|
| Type | Thread together |
| Frame type | BB86 / BB89.5 / BB92 (41 mm x 86.5 / 89.5 / 92) |
| Crank type | Shimano 24 mm spindle |
| Bearing type | Premium (high carbon steel) |
| Weight (excl. spacers) | 103 g |
| External cup size | 41.05 mm ± 0.05 mm |
| TOKEN tool | BB841T-5RSP / BB841T-5SPA |
| Compatible Park Tool | BBT-69.2 |
| SKU | FES-DBB841TS-41BKTKC3 |
| Brand | TOKEN |
