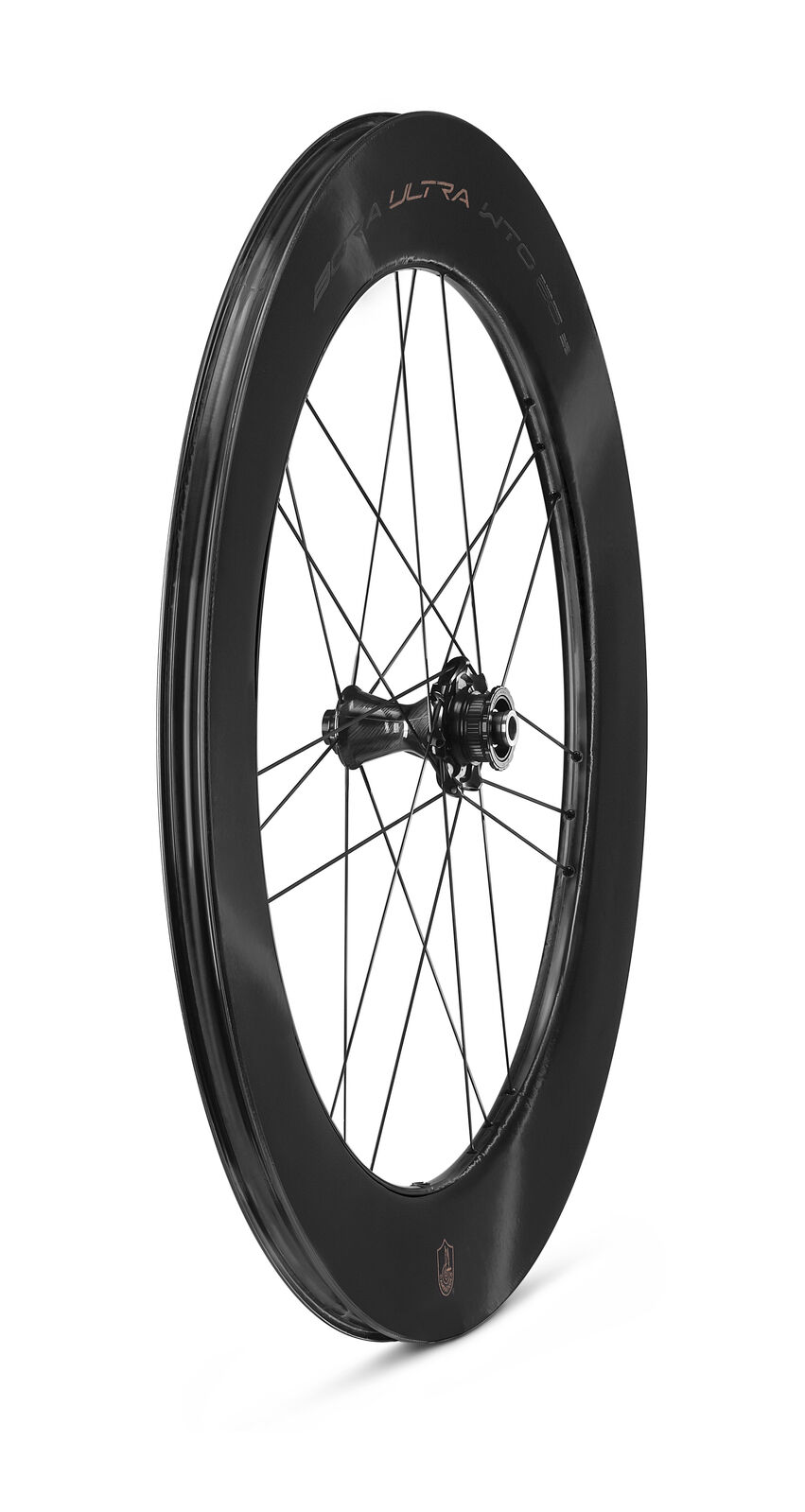

Campagnolo's deepest Bora Ultra road wheel, built for time trials and high-speed stages. The 80 mm profile was chosen to balance weight, aerodynamic efficiency and easy steering, and CULT ceramic bearings keep friction to a minimum. This version has a Campagnolo N3W freehub body.

Highlights

  • 80 mm H.U.L.C. carbon rims, C-LUX finish
  • 2-Way Fit: tubeless, tubeless-ready or clincher
  • CULT ceramic cup-and-cone bearings
  • Aero spokes with hidden Aero Mo-Mag nipples
  • Claimed 1,590 g (740 g front, 850 g rear)

Rims

The rims are made with Campagnolo's Hand Made Ultra-Light Carbon (H.U.L.C.) process and finished in mirror-like C-LUX. The rim bed has no drilled holes, so tubeless tyres fit without rim tape and the rim keeps its stiffness. Internal width is 21 mm, external 27.3 mm, for 700c tyres from 25 mm.

Hubs and spokes

The front hub has a carbon body with an integrated flange; the rear has an aluminium body with a 36-tooth ratchet. Both run on CULT ceramic cup-and-cone bearings. Each wheel has 21 bladed, straight-head 1.5 mm aero spokes in the G3 pattern, with self-locking aluminium Aero Mo-Mag nipples inside the rim. Each wheel is hand-assembled and checked by a Campagnolo technician.

Compatibility & fit

Disc brake with AFS rotor interface and 12 mm aluminium thru-axles, 100 mm front and 142 mm rear. The N3W freehub body is for Campagnolo cassettes; N3W takes Campagnolo cassettes that start with a 9 or 10-tooth sprocket (such as Ekar and Super Record Wireless) directly; cassettes that start with 11 or 12 teeth need Campagnolo's N3W adapter. Tubeless set-up and cassette fitting are separate workshop services at Tune Cycles.

Campagnolo guarantees its products for three years from the date of purchase against defects in materials and workmanship; proof of purchase is required. The warranty doesn't cover crash damage, normal wear and tear, incorrect installation, use with non-compatible parts, or consumables such as tyres and rim tape. For warranty support, return the product to Tune Cycles and we'll manage the claim with Campagnolo's Australian distributor.
  • 80 mm H.U.L.C. carbon rims, 21 mm internal
  • 2-Way Fit tubeless, no rim tape needed
  • CULT ceramic bearings
  • 21 G3 aero spokes, internal Aero Mo-Mag nipples
  • AFS disc interface, 12 mm thru-axles
  • Campagnolo N3W freehub body
BrandCampagnolo
ModelBora Ultra WTO 80 Disc Brake
RimH.U.L.C. UD carbon, C-LUX finish, 80 mm deep
Width21 mm internal, 27.3 mm external
TyresTubeless, tubeless-ready or clincher (2-Way Fit), 700c from 25 mm
Spokes21 per wheel, bladed aero 1.5 mm, straight head, G3 pattern
NipplesAluminium Aero Mo-Mag, self-locking, internal
HubsFront carbon body with integrated flange; rear aluminium body, 36-tooth ratchet
BearingsCULT ceramic, cup and cone
Axles12 mm aluminium thru-axle, 100 mm front, 142 mm rear
Brake interfaceAFS disc
FreehubCampagnolo N3W
Weight1,590 g per pair (740 g front, 850 g rear, claimed)
IncludesAero Mo-Mag nipple maintenance kit, tubeless valves, AFS lockrings, wheel bags, accessory bag, tyre levers, N3W Z11 adapter
SKU FES-WC4310AP8A110
Brand Campagnolo
