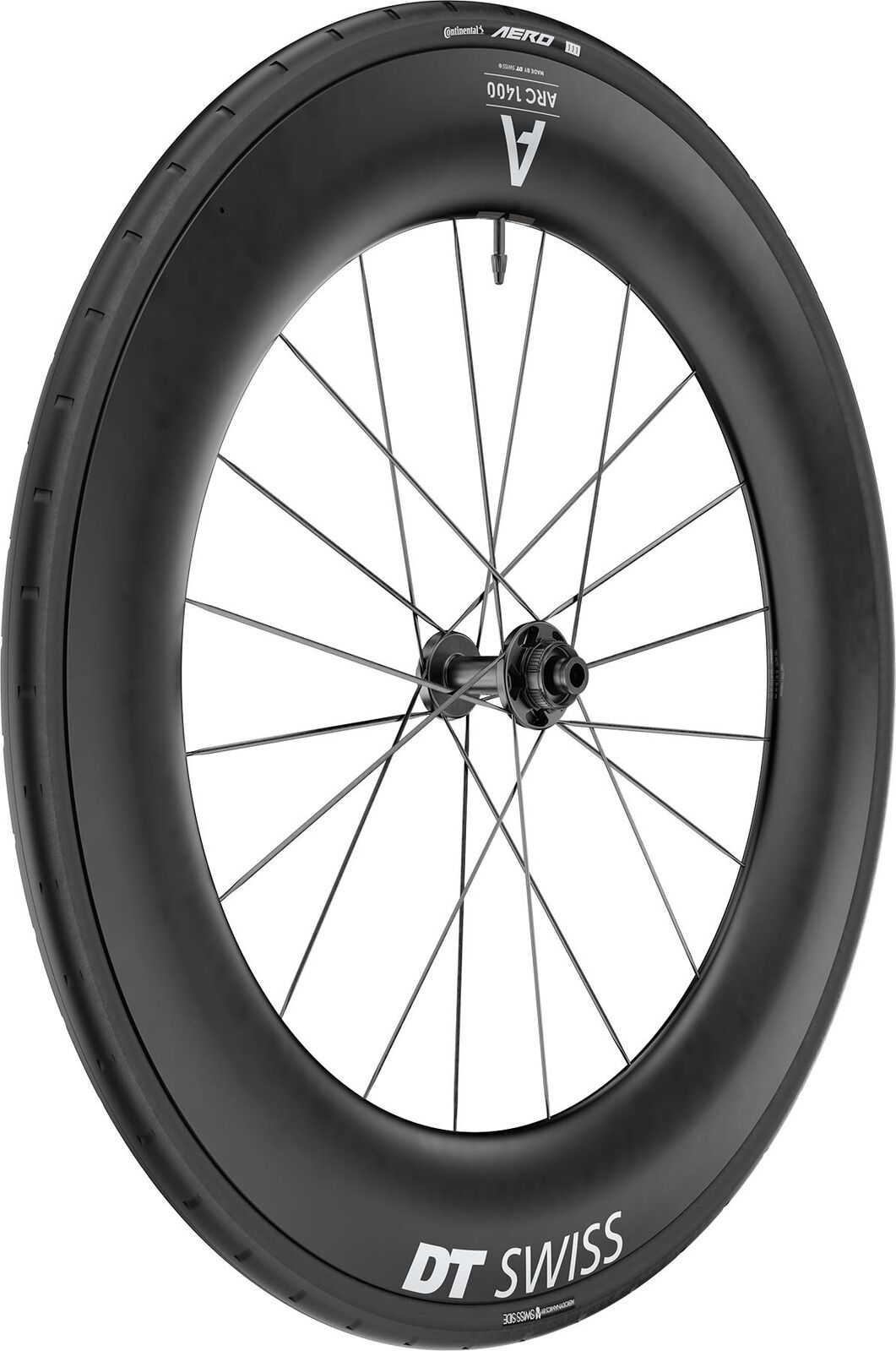

DT Swiss ARC 1400 DICUT 85 Disc Brake Front Wheel — 700C, 12×100 mm, Centre Lock (WTS)
SKU code: APO-DTW0255
In Stock
Sold as a single front wheel. This listing is one wheel, not a pair — the matching rear wheel is listed separately.
When speed is the only metric that matters, the DT Swiss ARC 1400 DICUT 85mm front wheel delivers maximum aerodynamic depth in a disc-specific carbon package. An 85mm DICUT rim is purpose-built for flat courses, time trials, and criteriums where outright aero gain outweighs all other considerations.
- 85mm DICUT carbon rim with toroidal aero profile
- Disc brake specific — 12x100mm front axle standard
- Tubeless-ready clincher construction
- Ratchet EXP engagement system
- WTS (Wheel Tuning System) — rim and tyre matched for maximum aero performance
- 700C / 622mm bead seat diameter
Maximum depth, measurable speed
85mm of DICUT carbon is as deep as road racing gets for a front wheel that still handles predictably. The toroidal rim profile manages yaw sensitivity so the wheel delivers aerodynamic performance without the unpredictable handling that plagued older deep-section designs.
Disc-specific thru-axle front end
The 12x100mm thru-axle interface provides the rigid, consistent front-end feel that a deep-section wheel demands — particularly important when the wheel is doing aerodynamic work in variable crosswinds.
Wheel Tuning System
At 85mm, WTS matters most. The tyre profile matched to this rim is selected to ensure the combined aerodynamic performance is optimised, not just the rim geometry in isolation.
Compatibility
Axle: 12x100mm front thru-axle. Brake: disc (rotor not included). Tyre type: tubeless-ready clincher (tyre not included). Best suited for flat-to-rolling courses. Sold as individual front wheel.
DT Swiss wheels are covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. Carbon rims may also be eligible for DT Swiss's Fair Share crash-replacement programme — ask us for the current terms. For any warranty claim or support, return the wheel to Tune Cycles and we will handle it with DT Swiss's Australian distributor.
- One front wheel — sold individually, not as a pair; the matching rear wheel is a separate listing
- DT Swiss ARC 1400 DICUT: high-end carbon aero road wheel line
- 700C, 12×100 mm, Centre Lock
- 85 mm rim depth
- WTS
- Genuine DT Swiss, supplied through the Australian distributor
| Sold as | Single front wheel (one wheel) |
| Brand | DT Swiss |
| Model | ARC 1400 DICUT |
| Wheel position | Front |
| Rim material | Carbon |
| Rim diameter | 700C |
| Rim depth | 85 mm |
| Brake type | Disc |
| Rotor mount | Centre Lock |
| Axle | 12×100 mm |
| Notes | WTS |
| Intended use | aero road |
| SKU | APO-DTW0255 |
| Barcode # | 7613052546377 |
| Brand | DT Swiss |
