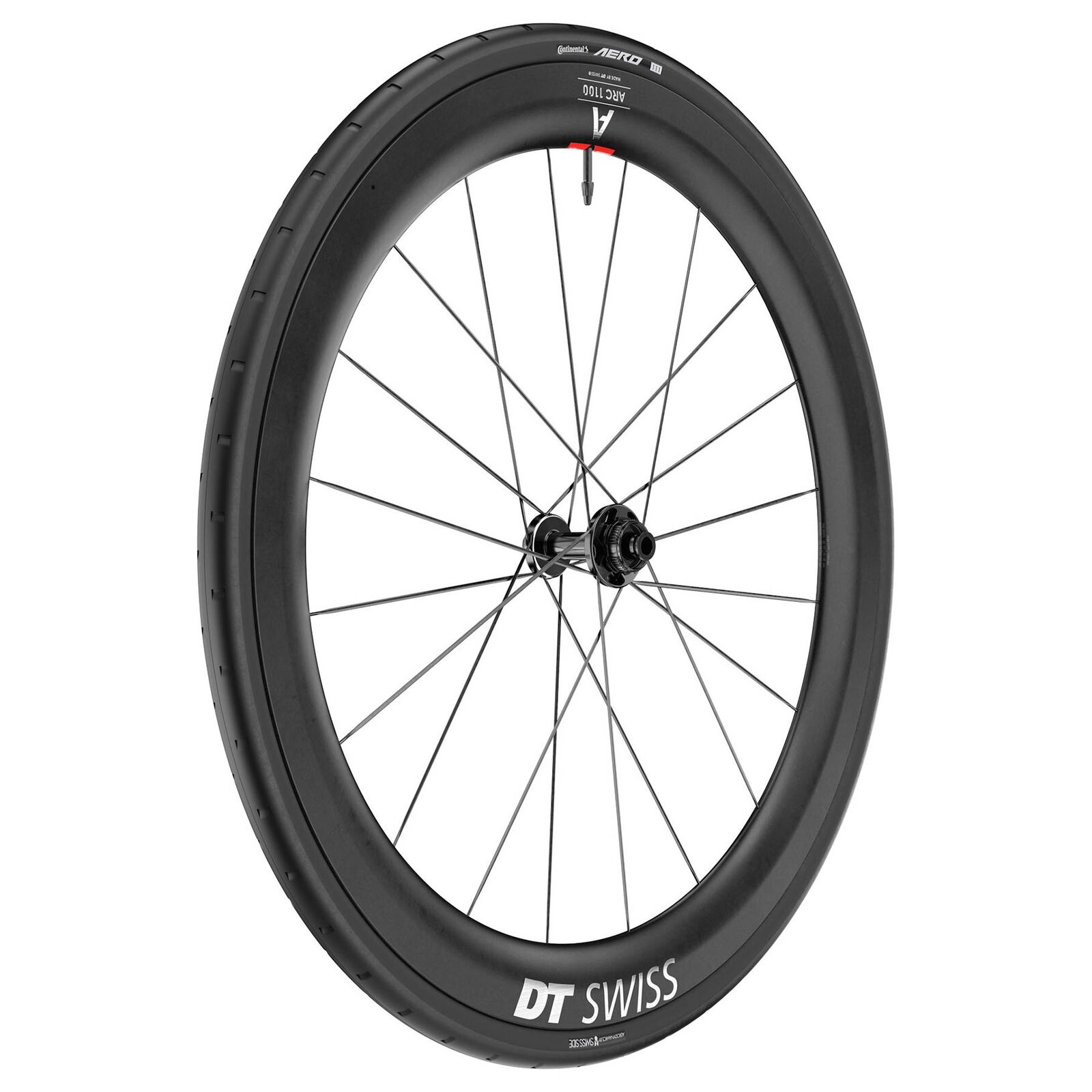

DT Swiss ARC 1100 DICUT 55 Disc Brake Front Wheel — 700C, 12×100 mm, Centre Lock (WTS)
SKU code: APO-DTW0257
In Stock
Sold as a single front wheel. This listing is one wheel, not a pair — the matching rear wheel is listed separately.
The DT Swiss ARC 1100 DICUT 55mm Disc Front Wheel WTS steps up aero depth from the 48mm without committing to the extreme profiles of the 80–85mm options. The 240 DICUT hub with Ratchet EXP delivers precision engagement, and the WTS spare parts kit means you are set for long-term maintenance from day one.
- 55mm deep toroidal DICUT carbon rim — balanced aero performance for road racing and sportive riding
- 240 DICUT hub with Ratchet EXP 36-point star ratchet
- Tubeless-ready clincher construction
- Disc brake compatible — 12×100mm front axle
- WTS (Wheel Tuning System) spare parts kit included
55mm — the aero-endurance balance
At 55mm, the ARC 1100 DICUT rim delivers meaningful drag reduction over shallower sections while maintaining more predictable crosswind behaviour than the 62mm and deeper options. A popular choice for road racing and gran fondo events with mixed conditions.
240 DICUT hub
The 240 DICUT front hub features Ratchet EXP 36-point star ratchet engagement, sealed bearings, and a machined aluminium shell built to DT Swiss's tightest road hub tolerances.
WTS — Wheel Tuning System
Includes valve stems, rim tape, spare nipples, and Ratchet EXP components — everything needed for ongoing service and field maintenance.
Compatibility
Disc brake road bikes. Front axle: 12×100mm. Tubeless or clincher tyre compatible. Sold as front wheel only.
DT Swiss wheels are covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. Wear from normal use, incorrect installation or crash damage is not covered. Carbon rims may also be eligible for DT Swiss's Fair Share crash-replacement programme — ask us for the current terms. For any warranty claim or support, return the wheel to Tune Cycles and we will handle it with DT Swiss's Australian distributor.
- One front wheel — sold individually, not as a pair; the matching rear wheel is a separate listing
- DT Swiss ARC 1100 DICUT: flagship carbon aero road wheel line
- 700C, 12×100 mm, Centre Lock
- 55 mm rim depth
- WTS
- Genuine DT Swiss, supplied through the Australian distributor
| Sold as | Single front wheel (one wheel) |
| Brand | DT Swiss |
| Model | ARC 1100 DICUT |
| Wheel position | Front |
| Rim material | Carbon |
| Rim diameter | 700C |
| Rim depth | 55 mm |
| Brake type | Disc |
| Rotor mount | Centre Lock |
| Axle | 12×100 mm |
| Notes | WTS |
| Intended use | aero road |
| SKU | APO-DTW0257 |
| Barcode # | 7613052546308 |
| Brand | DT Swiss |
